Запчасти Case IH COULTER (75.200.02) - INDIVIDUAL COLTERS (75) - SOIL PREPARATION

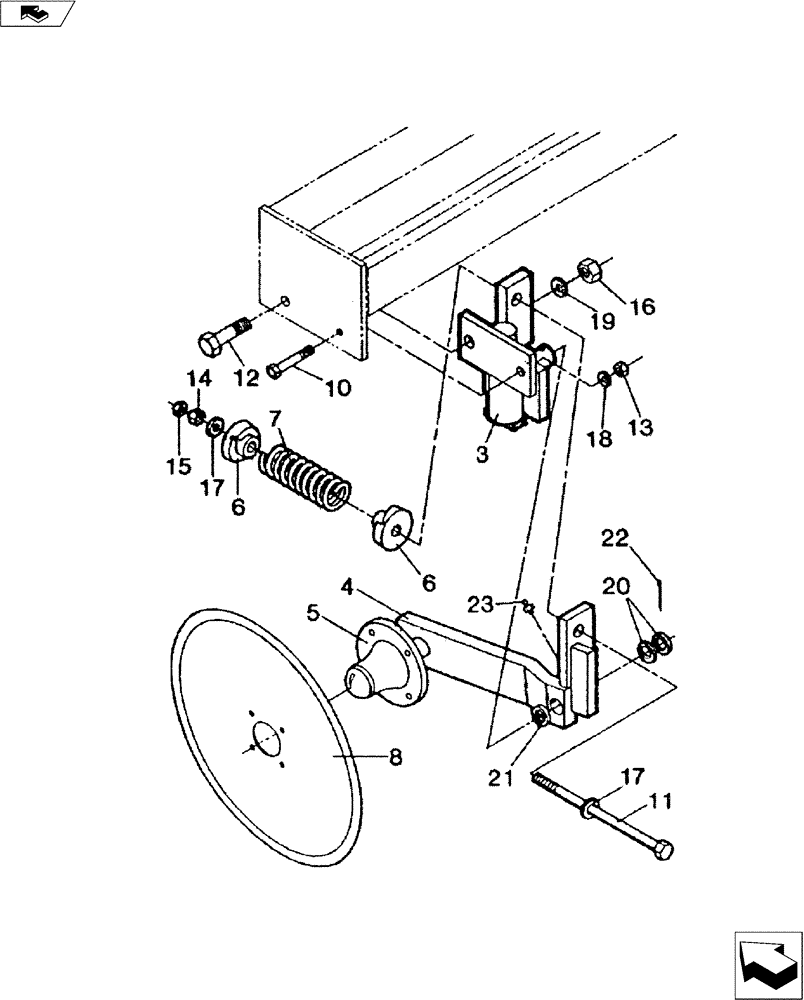

Схема запчастей Case IH COULTER - (75.200.02) - INDIVIDUAL COLTERS (75) - SOIL PREPARATION
19
18
10
8
11
17
6
23
17
4
3
14
21
16
13
5
7
15
6
20
12
22

Артикул

Название

Примечание

Количество

1

09574000

COULTER

W/Blade (Not Shown)

1шт.

2

09574100

DISC

Coulter Assy. & Mtg. Hardware (Not Shown)

1шт.

3

09574230

PIVOT ASSY.

Coulter

1шт.

4

04642030

POWER ARM

Coulter With Hub

1шт.

5

28163311

HUB ASSY.

633 4-Bolt

1шт.

6

20090050

HOLDER

Spring Casting

2шт.

7

24156205

COIL SPRING

Compression

1шт.

8

443638A1

PLOW DISC

24" Coulter

1шт.

9

14820570

PIVOT PIN

(Not Shown)

1шт.

10

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" NC Cap Screw

1шт.

11

413-10216

BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

14

NSS

NOT SOLD SEPARAT

5/8" NC Heavy Nut

1шт.

15

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

16

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

17

17411012

WASHER

5/8" Heavy

2шт.

18

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

1шт.

19

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

1шт.

20

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine - 14 Ga.

2шт.

21

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machine - 10 Ga.

1шт.

22

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

23

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

Выбрано товаров: 23
