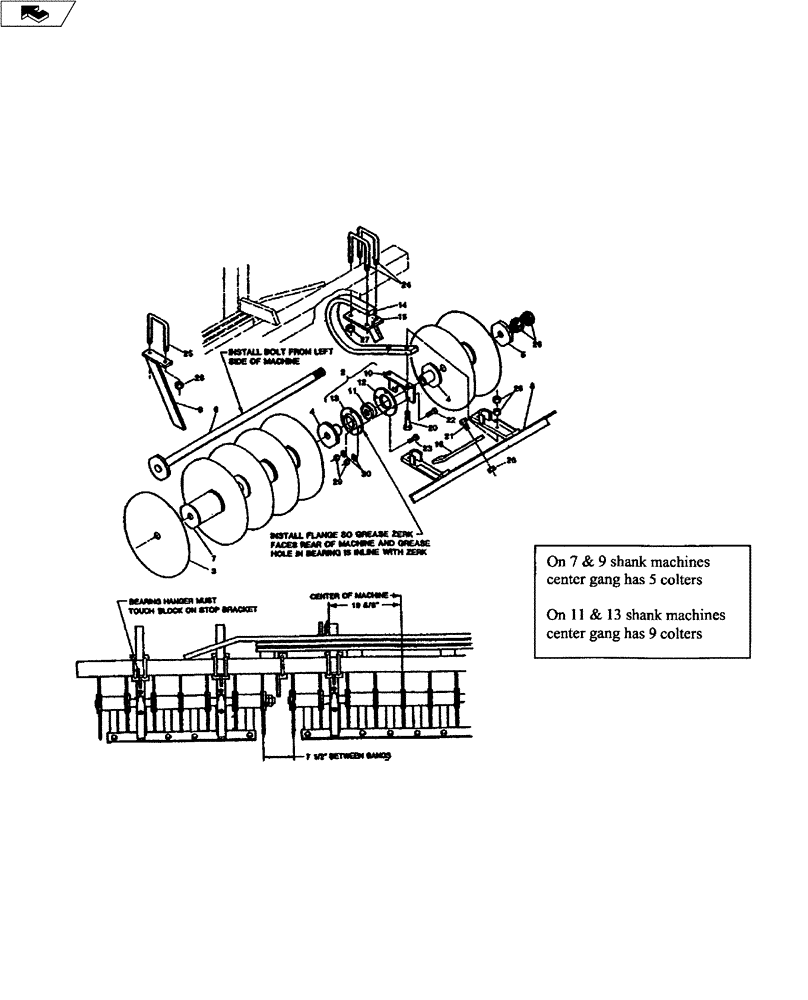

Запчасти Case IH COULTER (75.200.01) - GANG COLTERS (75) - SOIL PREPARATION

1

09570015

COULTER

5 Gang Assy., Includes Ref. 2-7 & 26 (Not Shown)

1шт.

1

09570017

COULTER

7 Gang Assy., Includes Ref. 2-7 & 26 (Not Shown)

1шт.

1

09570019

COULTER

9 Gang Assy., Includes Ref. 2-7 & 26 (Not Shown)

1шт.

2

09570020

TUBE SPACER

1-1/2" Bearing Assy. RH, Includes Ref. 10-13 & Hardware

1шт.

2

09570025

TUBE SPACER

1-1/2" Bearing Assy. LH, Includes Ref. 10-13 & Hardware

1шт.

3

28597R1

DISC

20" Coulter Blade

1шт.

4

09570200

SPACER

4шт.

5

09570210

WASHER

1шт.

6

16902422

PLOW BOLT

1-1/2" x 33" Disc (5 Gang)

1шт.

6

16902423

PLOW BOLT

1-1/2" x 48" Disc (7 Gang)

1шт.

6

16902424

PLOW BOLT

1-1/2" x 63" Disc (9 Gang)

1шт.

7

09571720

SPACER

Coulter

1шт.

8

09571710

MOUNTING PARTS

5 Gang Scraper

1шт.

8

09571810

MOUNTING PARTS

7 Gang Scraper

1шт.

8

09571910

MOUNTING PARTS

9 Gang Scraper

1шт.

9

09575300

SCOOP

Single Scraper

1шт.

10

09571730

BRACKET

Bearing Brackt

2шт.

11

21842400

BEARING, BALL,38.73mm ID x 85mm OD x 30.16mm W

1-1/2" Dia.

2шт.

12

21892400

FLANGED BEARING

Bearing

2шт.

13

21892401

FLANGED BEARING

Bearing With Zerk

2шт.

14

33020010

HANGER

Bearing

2шт.

15

09575500

PLATE

Stop Bracket

2шт.

16

09570400

SCOOP

Scraper

1шт.

20

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

21

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" NC Cap Screw

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

24

16312270

U-BOLT

BOLT "U" 3/4" NC x 6-3/4"

4шт.

25

16310011

U-BOLT

BOLT "U" 5/8" NC x 4" x 5-1/2"

1шт.

26

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

2шт.

27

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

8шт.

28

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

29

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

8шт.

30

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

8шт.
