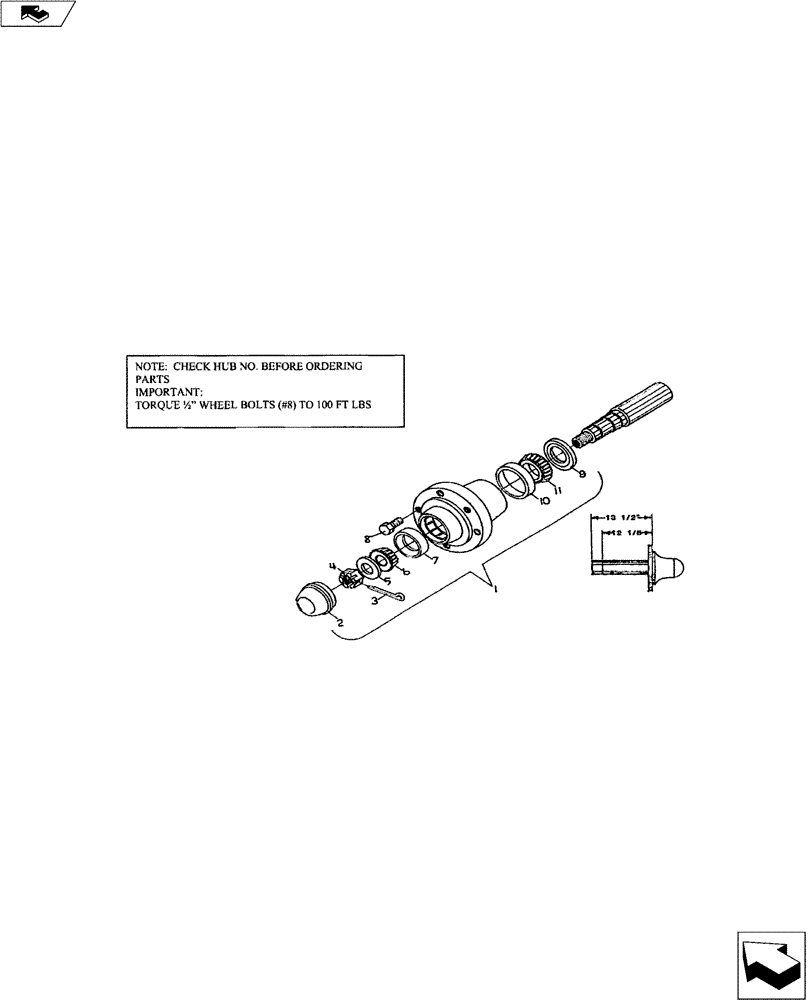

Запчасти Case IH COULTER (44.100.02) - 888 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28188800

HUB ASSY.

888 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore Timken LM67048

1шт.

7

651817R1

BEARING CUP

2.33 OD Tirnken LM67010

1шт.

8

16408053

SPECIAL BOLT

1/2" X 1" Lug

6шт.

9

T57618

SEAL,41.27mm ID x 65.18mm OD x 11.13mm Thk

1.63 ID x 2.57 OD CR16289

1шт.

10

61801C1

BEARING CUP,63mm OD x 13.5mm W

2.48 OD Timken JL69310

1шт.

11

21871496

BEARING, CONE

1.50 Bore Timken JL69349

1шт.

12

28088801

HUB ASSY.

Spindle Assy. (12-1/8'') (Not Shown)

1шт.

12

28088802

HUB ASSY.

Spindle Assy. (13-1/2") (Not Shown)

1шт.

13

28388807

SPINDLE

14-1/4" Lg. (2") (Not Shown)

1шт.
