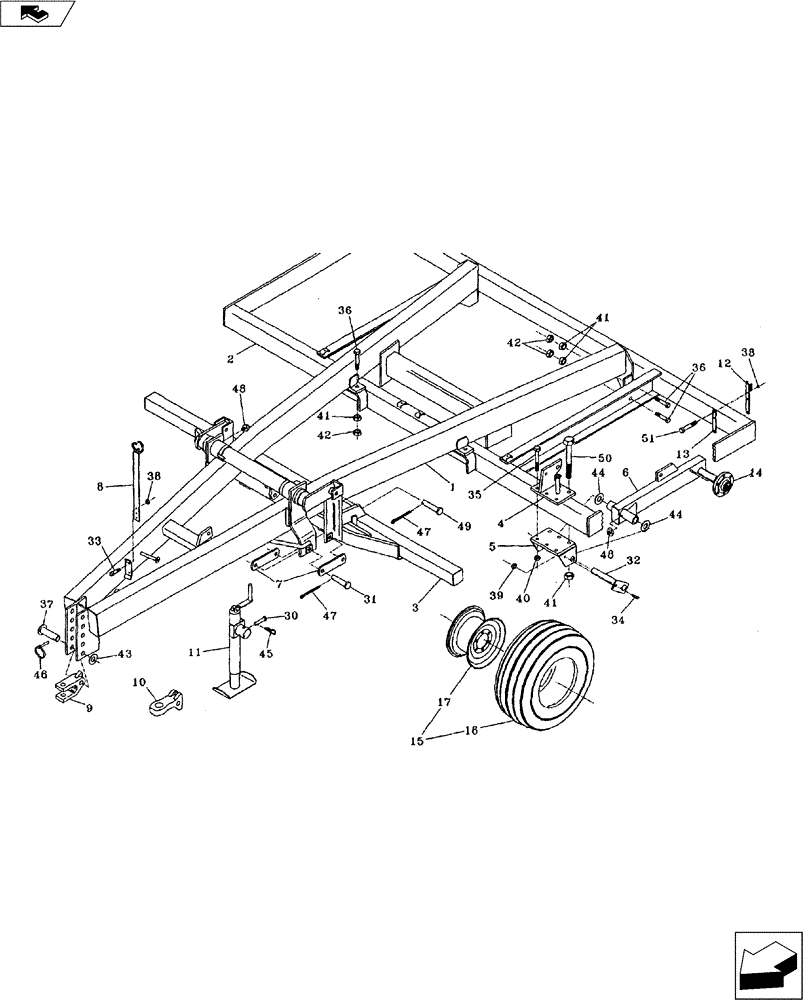

Запчасти Case IH COULTER (39.100.03) - MAIN FRAME - 1990 (39) - FRAMES AND BALLASTING

1

09576300

FRAME

Pull 7 & 9 Shank

1шт.

1

09576350

FRAME

Pull 11 & 13 Shank

1шт.

2

09576200

Main Frame 7 & 9 Shank

1шт.

2

09576250

Main Frame 11 & 13 Shank

1шт.

3

09573100

FRAME ASSY

Colter 7 & 9 Shank

1шт.

3

09573200

Gang Colter Frame 7 & 9 Shank

1шт.

3

09573300

Colter Frame 11 & 13 Shank

1шт.

3

19573400

Gauge Colter Frame 11 & 13 Shank

1шт.

4

09576150

ANCHOR

Cylinder Mount L.H

1шт.

4

09576160

MOUNTING PARTS

Cylinder Mount R.H

1шт.

5

09576170

KIT

Wheel Pivot

2шт.

6

09576100

STUB AXLE/STEERING S

Arm LH with Hub

1шт.

6

09576120

STUB AXLE/STEERING S

Arm RH with Hub

1шт.

7

09964000

LOWER LINK

4шт.

8

04615000

BRACKET

Hose Support

1шт.

9

20092051

CLEVIS

Double

1шт.

10

20092071

ADJUSTABLE CLEVIS

Single

1шт.

11

32220000

JACK

Swivel

1шт.

12

09650150

BRACKET

SMV

1шт.

13

09650152

BRACKET

1шт.

14

28178300

HUB ASSY.

783 6- Bolt

2шт.

15

10008149

9.5 L x 15 Tire & Wheel Assembly

2шт.

15

10901503

WHEEL ASSY

11 L x 15 Tire

2шт.

15

10010155

12.5 L x 15 Tire & Wheel Assembly

2шт.

16

NSS

NOT SOLD SEPARAT

9.5 L x 15 6-Ply Tire

2шт.

16

NSS

NOT SOLD SEPARAT

11 L x 15 6- Ply Tire

2шт.

16

NSS

NOT SOLD SEPARAT

12.5 L x 15 10-Ply Tire

2шт.

17

10108151

WHEEL

8 x 15 6-Hole Wheel

2шт.

17

10110151

WHEEL

10 x 15 6- Hole

2шт.

30

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. X 3 1/8" Clevis

1шт.

31

14816180

HEADED PIN

1" Dia x 3" Clevis

4шт.

32

09576180

HITCH PIN

2шт.

33

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Hex. Bolt

2шт.

34

16010085

BOLT

5/8" x 2" NC Hex., Gd 5

2шт.

35

16012345

BOLT

3/4" x 8 1/2" Hex., Gd 5

6шт.

36

16014115

BOLT

7/8" x 2 3/4" Hex., Gd 5

8шт.

37

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1 1/4" Dia. X 5 1/2"

1шт.

38

NSS

NOT SOLD SEPARAT

3/8" NC Hex., Nut

4шт.

39

NSS

NOT SOLD SEPARAT

5/8" NC Hex., Nut

2шт.

40

NSS

NOT SOLD SEPARAT

3/4" NC Hex., Nut

6шт.

41

NSS

NOT SOLD SEPARAT

7/8" NC Hex., Nut

14шт.

42

NSS

NOT SOLD SEPARAT

7/8" NC Hex., Jam Nut

8шт.

43

17421021

WASHER

1 1/4" Heavy

1шт.

44

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1 5/8" x 14 Ga Washer

4шт.

45

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

46

14710814

SMALL PIN

1/4" Dia. x 1 3/4" Klik Pin

1шт.

47

NSS

NOT SOLD SEPARAT

1/4" x 1 1/2" Cotter Pin

6шт.

48

NSS

NOT SOLD SEPARAT

1/8" NFT Straight Zerk

4шт.

49

14816382

SMALL PIN

1" x 3 3/4" Clevis

2шт.

50

16014345

BOLT

7/8" x 8 1/2" NC Hex., Gd5

6шт.

51

16006205

3/8" x 5" NC Hex., Bolt Gd 5

2шт.
