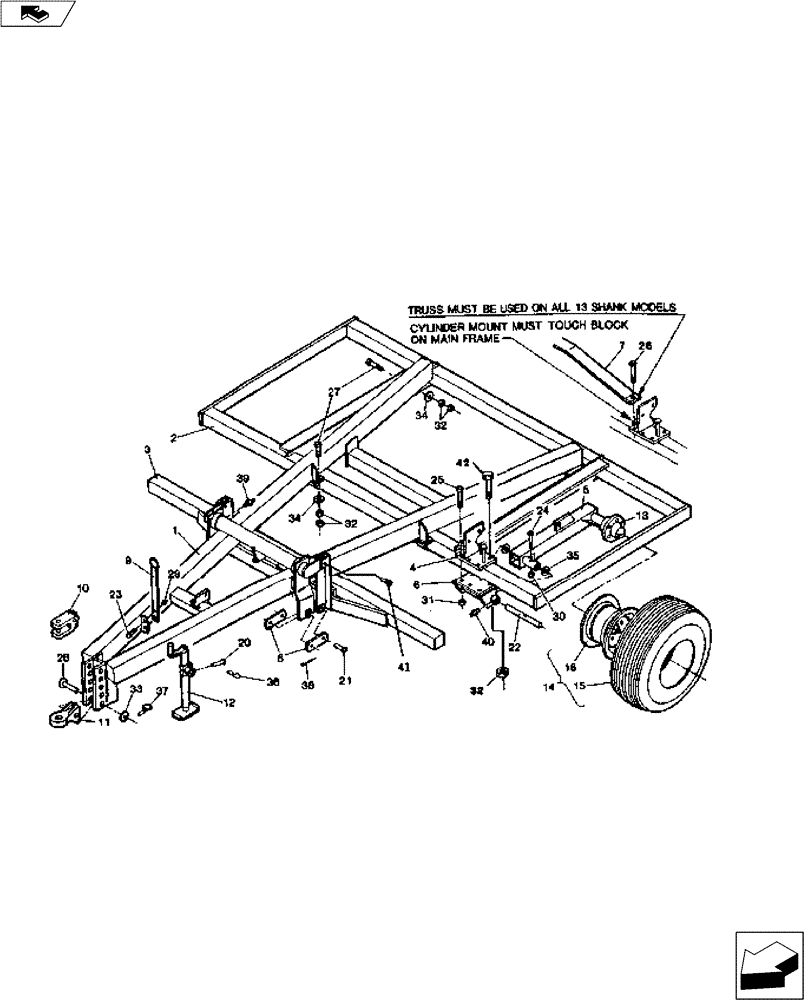

Запчасти Case IH COULTER (39.100.01) - MAIN FRAME - 1998 (39) - FRAMES AND BALLASTING

1

09572400

Pull

1шт.

2

09571201

FRAME

Main 7 & 9 Shank

1шт.

2

09571401

FRAME

Main 11 & 13 Shank

1шт.

2

09572500

FRAME

Main 11 & 13 Shank W/Spring Shank Assy.

1шт.

3

09573100B

SUPPORT

Coulter Frame 7 & 9 Shank

1шт.

3

09573200B

SUPPORT

Gang Frame 7 & 9 Shank

1шт.

3

09573300B

SUPPORT

Coulter Frame 11 & 13 Shank

1шт.

3

09573400

FRAME ASSY

Gang 11 & 13 Shank

1шт.

4

09571540

BRACKET

LH Cylinder Mount

1шт.

4

09571640

BRACKET

RH Cylinder Mount

1шт.

5

09571520

BRACKET

LH Spindle Arm W/Hub

1шт.

5

09571620

BRACKET

RH Spindle Arm W/Hub

1шт.

6

09571530

BRACKET

Wheel Pivot

2шт.

7

09571430

TRUSS ROD

Used On 13 Shank Model Only

1шт.

8

09572200

LINK

6-5/8" Hole To Hole

4шт.

9

04615000

BRACKET

Hose

1шт.

10

20092051

CLEVIS

Double

1шт.

11

20092071

ADJUSTABLE CLEVIS

Single

1шт.

12

32222000

JACK

Swivel

1шт.

13

28188800

HUB ASSY.

888 6-Bolt

2шт.

14

10008156

WHEEL ASSY.

9.5L x 15 Tire

2шт.

14

10901503

WHEEL ASSY

11L x 15 Tire

2шт.

15

NSS

NOT SOLD SEPARAT

9.5L x 15 6 Ply Tire

2шт.

15

NSS

NOT SOLD SEPARAT

11L x 15 6 Ply Tire

2шт.

16

10110174

WHEEL

8 x 15 6 Hole

2шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. X 3-1/8" EL Clevis

1шт.

21

14816180

HEADED PIN

1" Dia. X 3" EL Clevis

6шт.

22

14826975

PIN

1-5/8" Dia. X 14-15/16" Lg.

2шт.

23

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Cap Screw

2шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

25

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

12шт.

26

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

27

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

8шт.

28

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4" Dia x 5-1/2" EL

1шт.

29

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

30

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Lock Nut

2шт.

31

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

12шт.

32

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

16шт.

33

17421021

WASHER

1-1/4" Heavy

1шт.

34

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8' Heavy

6шт.

35

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" x 14' Gauge

4шт.

36

NSS

NOT SOLD SEPARAT

1/8' x 2" Hair

1шт.

37

A30338

PIN

1/4' Dia x 1-3/4" Lg. Klik Pin

1шт.

38

NSS

NOT SOLD SEPARAT

1/4" X 1-1/2" Lg. Cotter Pin

4шт.

39

NSS

NOT SOLD SEPARAT

1/8" NPT Straight Zerk

2шт.

40

NSS

NOT SOLD SEPARAT

1/4" - 28 Straight Zerk

4шт.

41

14816382

SMALL PIN

1 x 3.75 EL Clevis

2шт.

42

16014265

BOLT

7/8" x 6/12" Hex. Gd. 5

6шт.
