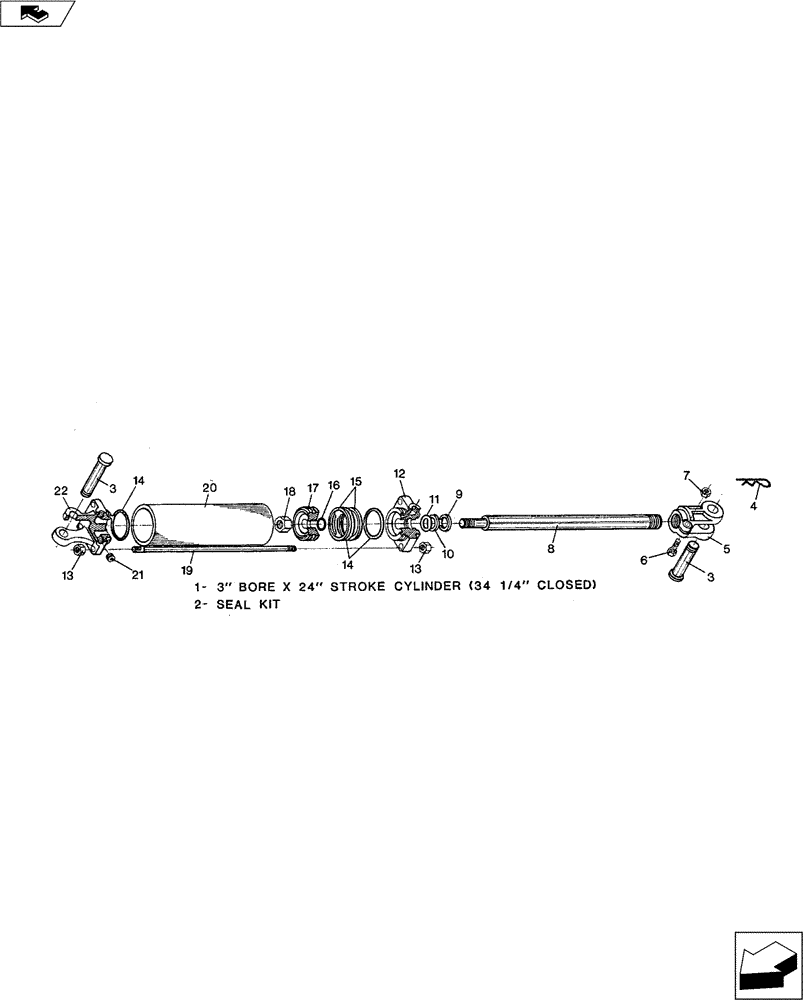

Запчасти Case IH CHIZZL CHAMP (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25030240

CYLINDER

3" Bore x 24" Stroke Assy.

1шт.

2

25803007

KIT

Seal for 3" Bore W/1-1/4 Ø Rod

1шт.

3

14816221

1 Ø x 2 3/4 E.L.

2шт.

4

NSS

NOT SOLD SEPARAT

1/8 Ø Ref. 11 Hair Pin

2шт.

5

25803001

SHAFT

Clevis Casting

1шт.

6

NSS

NOT SOLD SEPARAT

3/8 x 1 3/4 NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Lock Nut

1шт.

8

25803008

1 1/4 Ø Rod for 24"

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately) See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not sold Separately) See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately) See Ref. 2

1шт.

12

25803002

1шт.

13

NSS

NOT SOLD SEPARAT

1/2 NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately) See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately) See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately) See Ref. 2

1шт.

17

25803003

SHAFT

Piston

1шт.

18

NSS

NOT SOLD SEPARAT

3/4 NF Hex. Nut

1шт.

19

25803009

TIE-ROD

4шт.

20

25803010

BARREL

3" Bore x 24" Stroke Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

3/8 NPT Pipe Plug

1шт.

22

25803006

YOKE

Cylinder Base

1шт.
