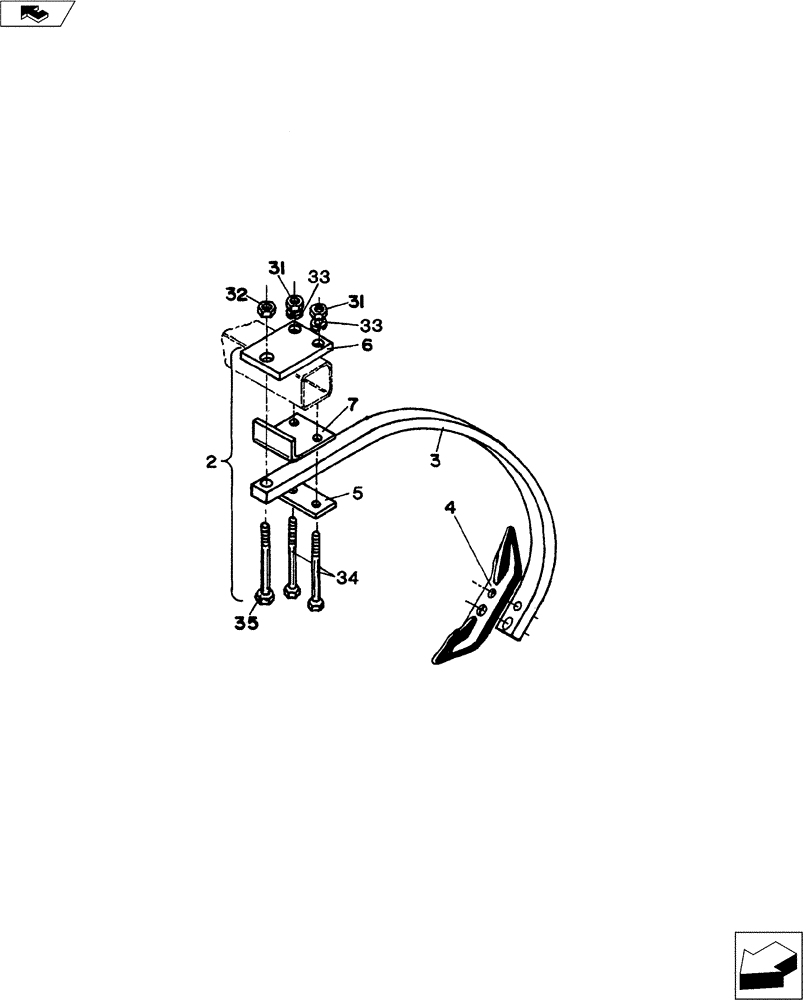

Запчасти Case IH CHIZZL CHAMP (75.200.04) - 32" RIGID SHANK ASSM (75) - SOIL PREPARATION

1

09222001

SHANK

32" Rigid, Less 4 (Not Shown)

1шт.

2

09232000

Less 3 & 4

1шт.

3

33020032

SHANK

1 1/4 x 2 x 32"

1шт.

4

33310041

POINT

Heavy Duty Chisel W/Hardware, See Chisel Point Figure

1шт.

5

09236000

CLAMP

Plate

1шт.

6

09213000

CLAMP

Top Plate

1шт.

7

09235000

CLAMP

Lower Shank Mtg. Plate

1шт.

30

NSS

NOT SOLD SEPARAT

1/2 NC Hex. Nut (Not Shown)

2шт.

31

NSS

NOT SOLD SEPARAT

5/8 NC Hex. Nut

2шт.

32

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Nut

1шт.

33

NSS

NOT SOLD SEPARAT

5/8 Lock Washer

2шт.

34

16010320

5/8 x 8 NC

2шт.

35

16012304

3/4 x 7 1/2 NC, Gd. 5

1шт.
