(75.200.03) - 32" SPRING SHANK ASSM

Запчасти Case IH CHIZZL CHAMP (75.200.03) - 32" SPRING SHANK ASSM (75) - SOIL PREPARATION

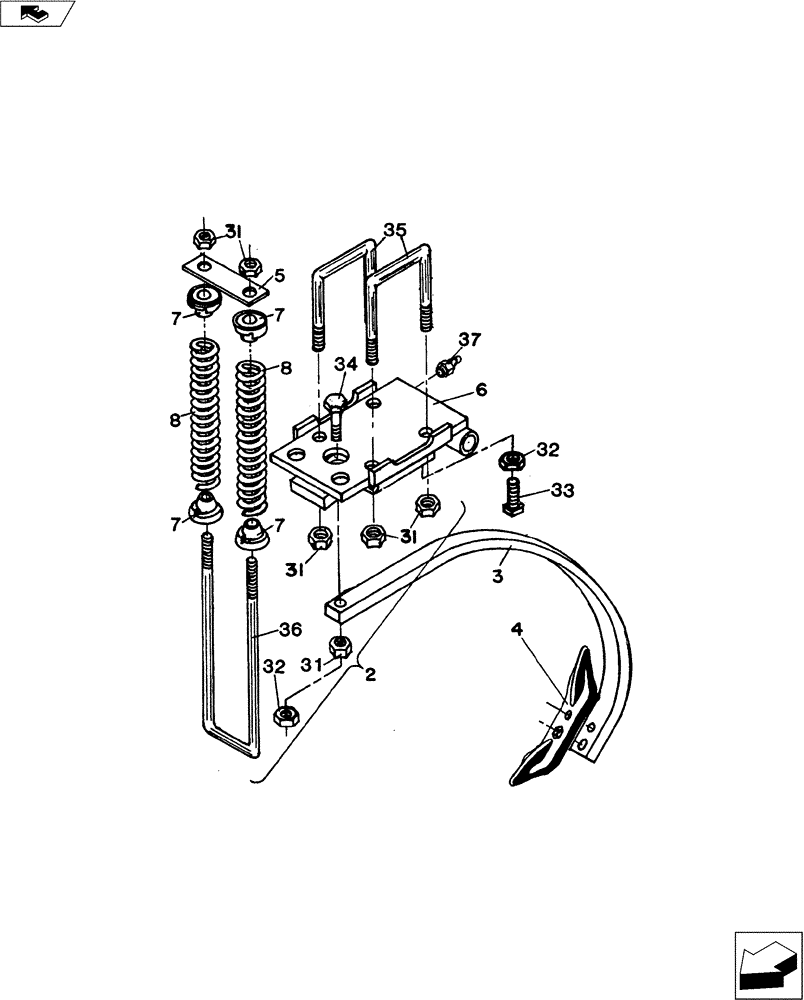

Схема запчастей Case IH CHIZZL CHAMP - (75.200.03) - 32" SPRING SHANK ASSM (75) - SOIL PREPARATION
2
7
6
35
4
7
32
31
31
3
7
37
5
31
34
33
8
31
32
7
36
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09350081

SHANK

32" Spring (Less 4) (Not Shown)

1шт.

2

09350085

Less 3 & 4

1шт.

3

33020032

SHANK

1 1/4" x 2" x 32"

1шт.

4

33310041

POINT

Heavy Duty Chisel W/Hardware, See Chisel Point Figure)

1шт.

5

09007000

BAR

Spacer Plate

1шт.

6

09351000

BRACKET

Spring Shank Pivot

1шт.

7

20090050

HOLDER

Spring Holder Casting

4шт.

8

24156202

SPRING

Compression 16 Coils

2шт.

31

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

7шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

2шт.

33

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" Sq. Hd. Set

1шт.

34

16012128

3/4" x 3" NC Gd. 8

1шт.

35

16312220

U-BOLT

3/4" NC x 4" x 5 1/2" Sq.

2шт.

36

16312770

U-BOLT

3/4" NC x 3 1/8" x 19 3/8" Sq.

1шт.

37

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
