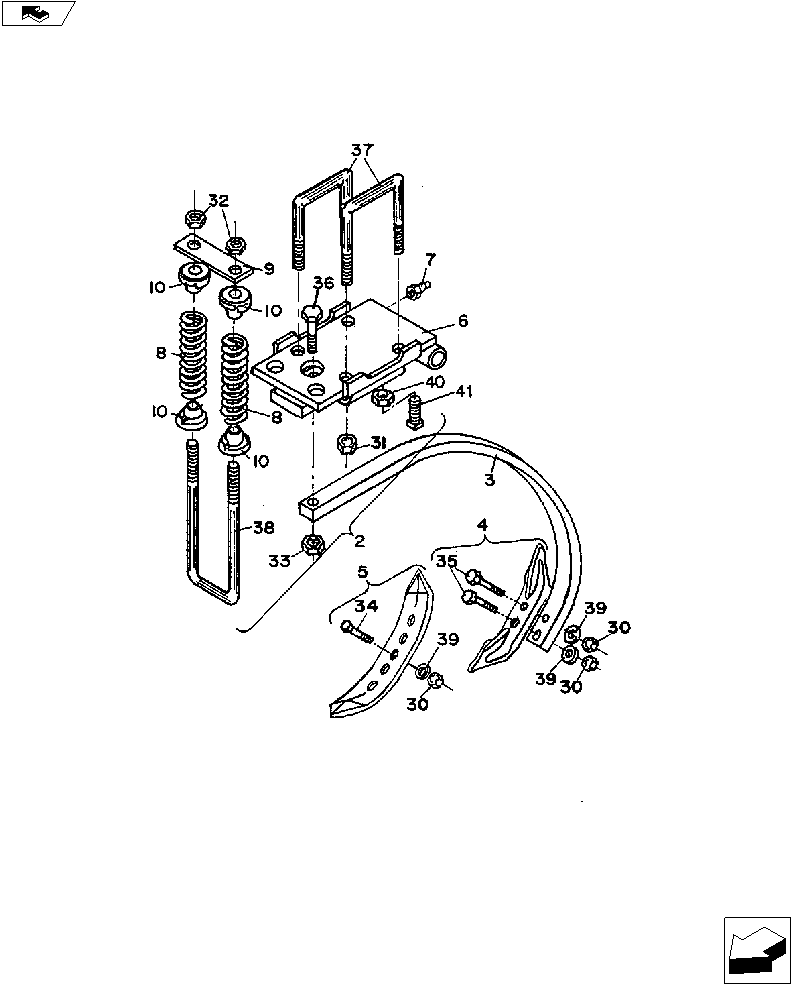

Запчасти Case IH CHIZZL CHAMP (75.200.02) - 29" SPRING SHANK ASSM (75) - SOIL PREPARATION

1

09400080

29"

1шт.

2

09400085

SPRING

Shank Mtg. Bundle

1шт.

3

33020029

SHANK

1 x 2 x 29"

1шт.

4

33310041

POINT

Heavy Duty Chisel W/Hardware

1шт.

5

33310021

FROG

R.H. Twisted Chisel Point W/Hardware

1шт.

5

33310031

FROG

L. H. Twisted Chisel Point W/Hardware

1шт.

6

09425000

1шт.

7

15302005

FITTING

1/8 NPT Self Tapping Zerk

2шт.

8

24143810

SPRING

Compression

2шт.

9

09007000

BAR

Spacer PIate

1шт.

10

20101000

SPRING

Holder Casting

4шт.

30

NSS

NOT SOLD SEPARAT

1/2 NC Hex. Nut

2шт.

31

NSS

NOT SOLD SEPARAT

5/8 NC Hex. Nut

4шт.

32

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Nut

2шт.

33

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Lock Nut

1шт.

34

NSS

NOT SOLD SEPARAT

1/2 x 2 3/4 NC Plow Bolt

2шт.

35

NSS

NOT SOLD SEPARAT

1/2 x 2 3/4 NC Hex. Bolt, Gd. 5

2шт.

36

NSS

NOT SOLD SEPARAT

3/4 x 2 1/2 Gd. 5

1шт.

37

16310011

U-BOLT

BOLT "U" 5/8 NC x 4 x 5 1/2 Lg. Sq.

2шт.

38

16312011

U-BOLT

BOLT "U" 3/4 NC x 3 1/8 x 11 1/2 Lg. Sq.

1шт.

39

NSS

NOT SOLD SEPARAT

1/2 Std. Flat Washer

2шт.

40

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Jam Nut

1шт.

41

16812084

SET SCREW,3/4" - 10 x 2"

3/4 x 2 Sq. Hd. Set

1шт.
