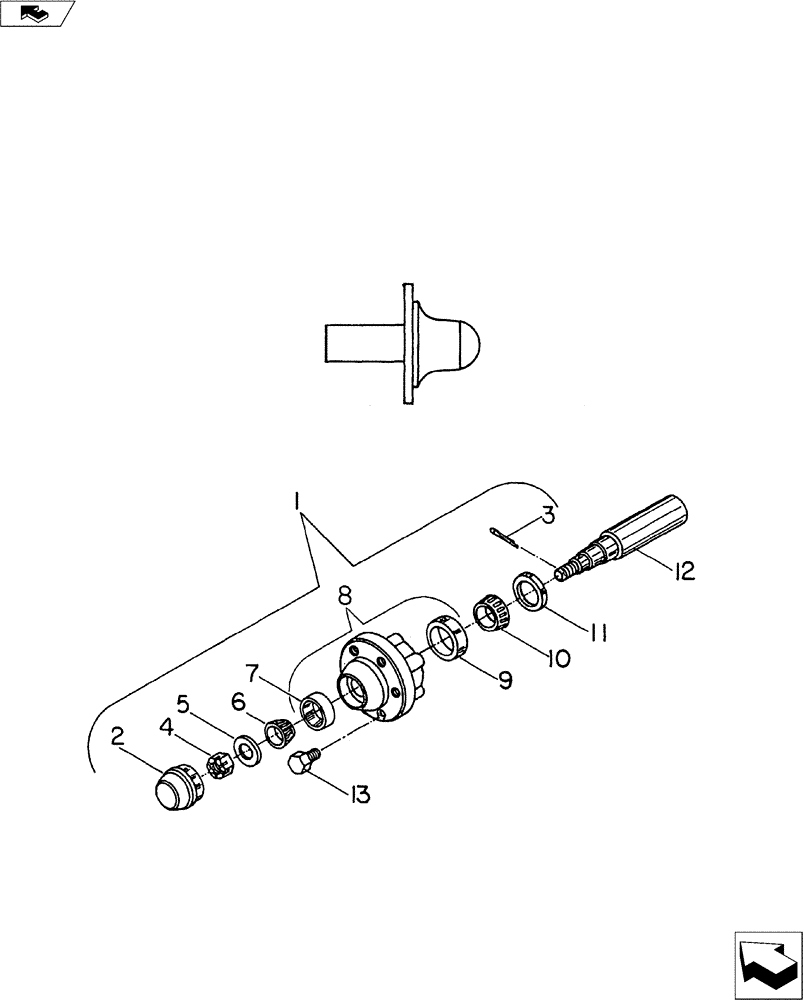

Запчасти Case IH CHIZZL CHAMP (44.100.04) - Q-889 HUB & SPINDLE ASSEMBLY (44) - WHEELS

1

28688900

HUB ASSY.

Q-889 6-Bolt

1шт.

2

28477700

HUB CAP

Dust

1шт.

3

NSS

NOT SOLD SEPARAT

5/32 ø x 1 1/2 Lg. Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8 NF Slotted Hex. Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8 Std. Washer

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25 Bore Timken LM67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 ø Cup, Timken LM67010

1шт.

8

28788900

Q-889 w/Cups

1шт.

9

21882480

BEARING, CUP

2.48 ø Timken JL69310

1шт.

10

21871496

BEARING, CONE

1.5 Bore, Timken JL69349

1шт.

11

21931630

SEAL

1 5/8 ID CR 16289

1шт.

12

28888901

Q-889 Spindle

1шт.

13

16408053

SPECIAL BOLT

1/2 NF x 1 1/2 Lg. Lug Bolt

6шт.

14

28588901

(Not Shown)

1шт.
