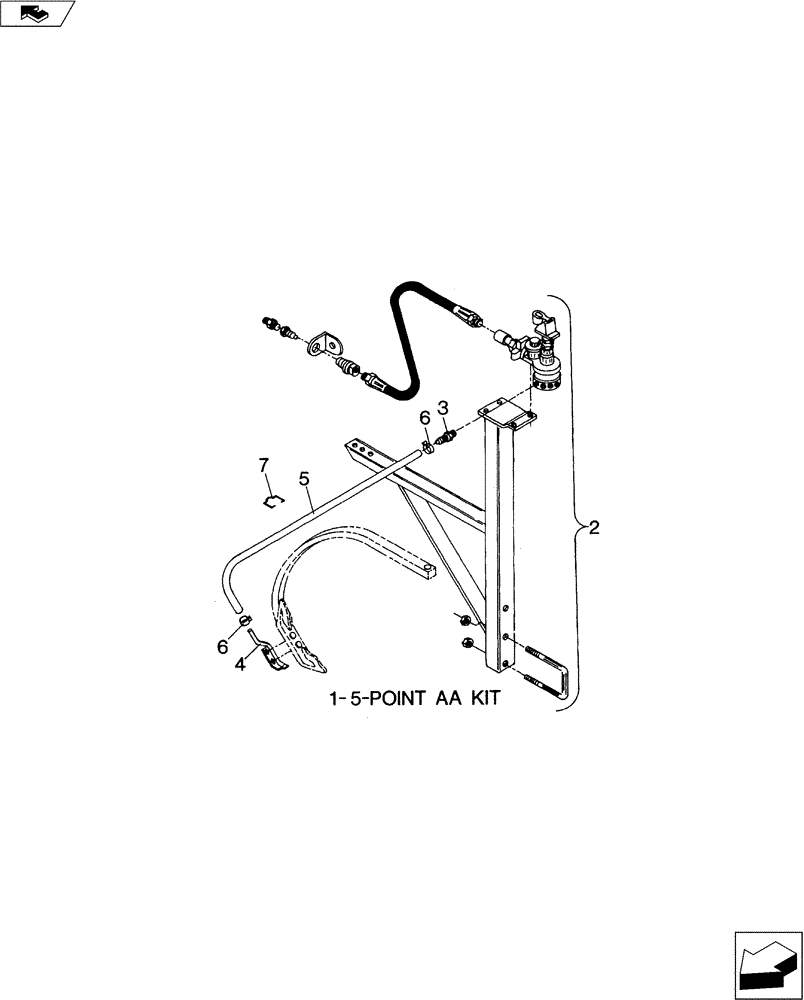

Запчасти Case IH CHIZZL CHAMP (39.100.05) - 5-POINT A.A. KIT (39) - FRAMES AND BALLASTING

1

09050000

KIT

5-Point AA W/Continental Regulator

1шт.

1

09051000

KIT

5-Point AA W/Squibb Regulator

1шт.

2

02250040

REGULATOR

Continental, See Figure 35.106.01

1шт.

2

02300090

REGULATOR

Squibb Assy., See Figure 35.106.02

1шт.

3

15040121

ADAPTER

1/8" NPT Hose Barb, Continental

5шт.

3

15040254

HOSE

1/4" NPT Hose Barb, Squibb

5шт.

4

02145000

TUBE

AA

5шт.

5

25630600

HOSE

3/8" ID Plastic

1шт.

6

22510600

3/8"

10шт.

7

22510802

1/2"

5шт.
