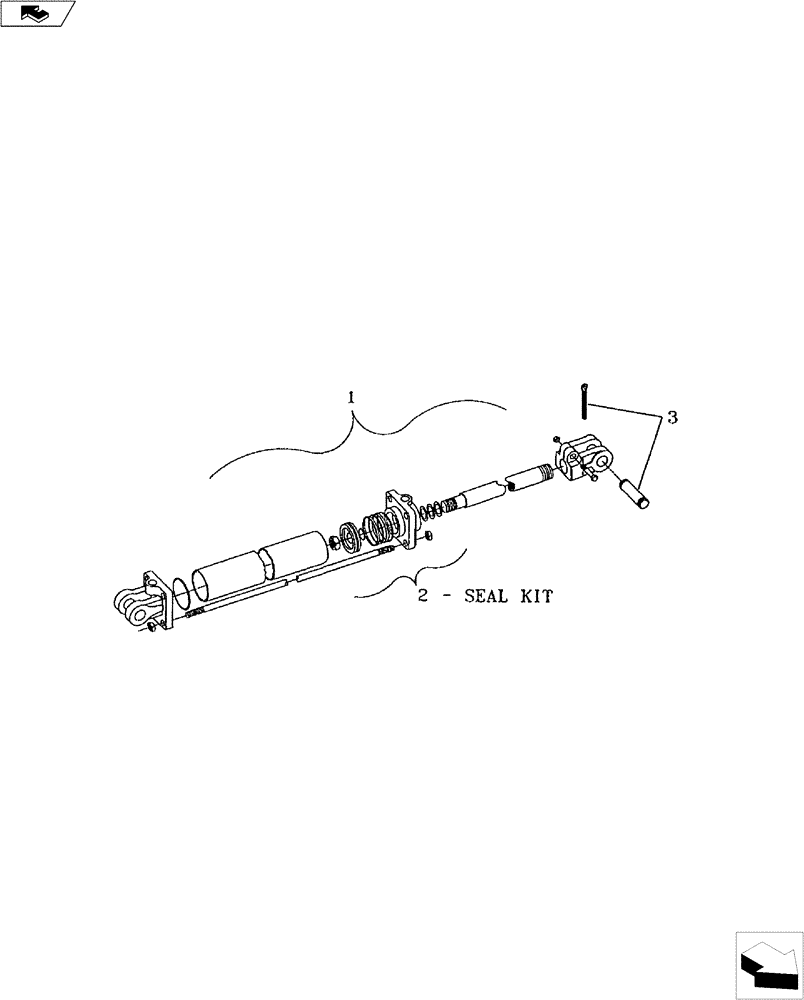

Запчасти Case IH 900 (35.100.03) - HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" Bore x 8" Stroke - SAE Ports, (20- 1/4" Closed) - 3000 p.s.i.

1шт.

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2" x 16" Stroke - SAE Ports, (26- 1/4" Closed) - 3000 p.s.i.

1шт.

1

87423763

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2" x 8" Cylinder - SAE Ports (20-1/4" Closed) - 3,000 p.s.i.

1шт.

2

25803007

KIT

Seal - 1-1/4" Dia. Rod - 3"

1шт.

2

25802510

KIT

Seal - 1-1/4" Dia. Rod - 2-1/2"

1шт.

2

25833526

SEAL KIT

Seal, 1-1/4" Dia. Rod, 3-1/2" Cylinder

1шт.

3

25890100

KIT

1" Cylinder Pin

2шт.
