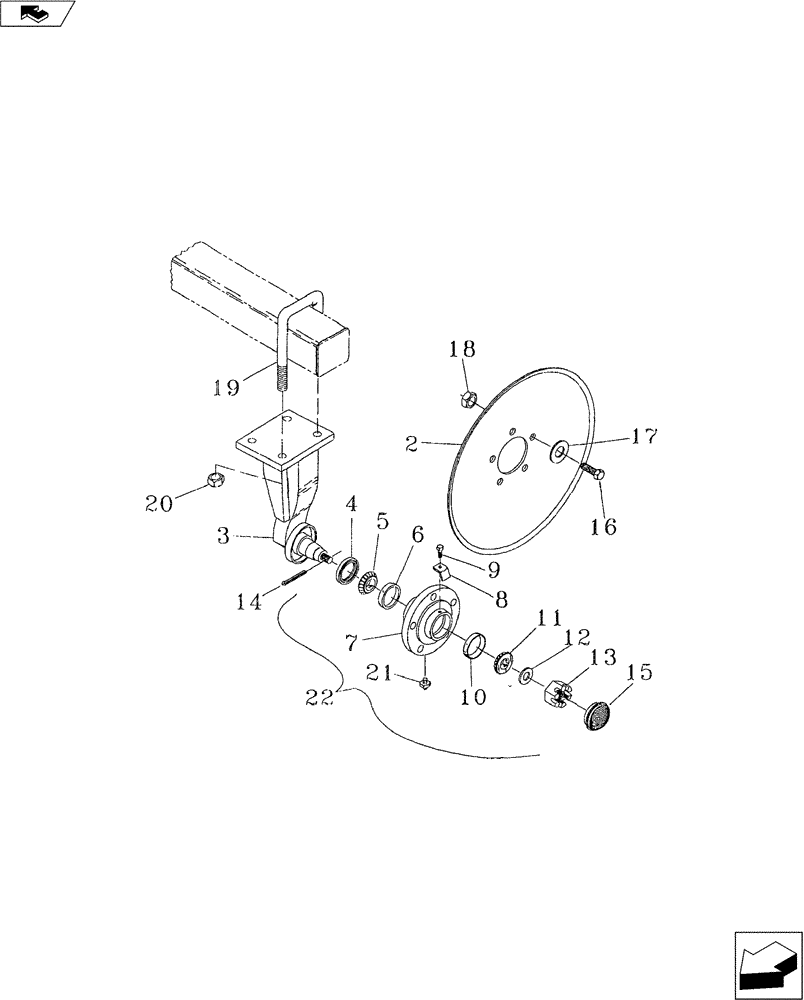

Запчасти Case IH 900 (39.100.03) - DISC MOUNT (39) - FRAMES AND BALLASTING

1

09970700

CENTRALIZER

Disc Mount

1шт.

1

09970800

MOUNTING PARTS

Disc - R.H.

1шт.

1

09970900

MOUNTING PARTS

Disc - L.H.

1шт.

2

33552050

PLOW DISC

20" Blade

1шт.

3

09970701

FURROW WHEEL

Spindle Arm Weld - Center

1шт.

3

09970801

FURROW WHEEL

Spindle Arm Weld - R.H.

1шт.

3

09970901

FURROW WHEEL

Spindle Arm Weld - L.H.

1шт.

4

21932120

SEAL,53.98mm ID x 76.2mm OD x 6.35mm Thk

3.00" O.D. - Carbox # 115

1шт.

5

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cone, Timkin #LM501349, Inc. 6

1шт.

6

NSS

NOT SOLD SEPARAT

Cup, Timkin #LM501210

1шт.

7

28705006

HUB

Disc with Cups

1шт.

8

09970770

RETAINER

Dust Cap

1шт.

9

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

10

36723

BEARING CUP,59.16mm OD x 11.81mm W

2.33" O.D. - Timken #LM67010

1шт.

11

36726

BEARING CONE,31.75mm ID x 16.76mm W

1.25" - Timken #LM67048

1шт.

11

84356153GV

BEARING

Value

1шт.

12

17915000

WASHER

7/8" Hardened

1шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

14

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

15

28490001

HUB CAP

Dust

1шт.

16

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

5шт.

17

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" I.D. x 3/8" O.D. Special

5шт.

18

86992215

LOCK NUT,1/2"-13, GC

NC Hex., Gd. 5

5шт.

19

16312230

U-BOLT

BOLT "U" 3/4" x 4" Sq.

2шт.

20

280954

NUT,3/4"-10, G5

4шт.

21

87414

LUBE NIPPLE,1/4" - 28

Straight Zerk

1шт.

22

28199902

HUB ASSY.

1шт.
