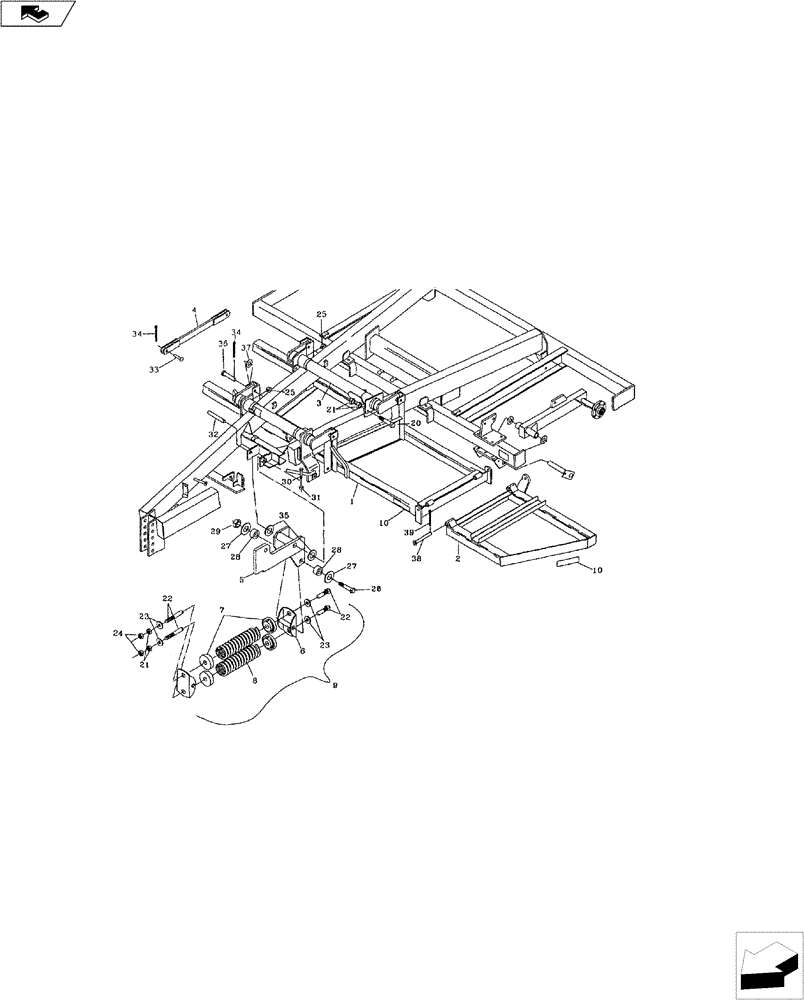

Запчасти Case IH 900 (39.100.02) - DISC ATTACHMENT (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
09650400B
FRAME ASSY
Disc (9 Shank) - Blue
1шт.
1
09970200B
BAR ASSY.
Disc Center Frame (11 & 13 Shank) - Blue
1шт.
2
09576800B
BAR ASSY.
Disc Frame Wing L.H. (11 Shank) - Blue
1шт.
2
09576820B
BAR ASSY.
Disc Frame Wing R.H. (11 Shank) - Blue
1шт.
2
09576850B
BAR ASSY.
Disc Frame Wing L.H. (13 Shank) - Blue
1шт.
2
09576870B
BAR ASSY.
Disc Frame Wing R.H. (13 Shank) - Blue
1шт.
3
09576570B
AXLE
Rear Lift Tube - Blue
1шт.
4
84401370
LINKAGE
Lift
1шт.
5
09651000
LINKAGE
Cylinder
1шт.
6
09581510
PIVOT ASSY.
Spring Weld
2шт.
7
20090091
HOLDER
Spring Casting
4шт.
8
24162502
COMPRESSION SPRING
2шт.
9
09651600
SPRING BOX
Disc Relief Assembly
1шт.
10
311864A1
REFLECTOR
Yellow Strip (11 & 13 Shank)
4шт.
10
311864A1
REFLECTOR
Yellow Strip (9 Shank Only)
4шт.
20
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
NC, Z.P.
4шт.
21
425-1012
NUT,3/4"-10, G5
NC, Hex.
10шт.
22
16512692
THREADED ROD
3/4" x 20-1/2" NC
2шт.
23
17413011
WASHER
1/4" Thick
4шт.
24
425-1412
JAM NUT,Jam, 3/4"-10, G5
3/4", NC
2шт.
25
219-86
LUBE NIPPLE,1/8" NPTF
NPT Self Tapping Zerk
4шт.
26
16901025
CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5
5/8" x 7-1/4" Hex., Gd. 5 Z.P.
2шт.
27
495-21069
WASHER,5/8"
Standard Washer Z.P.
4шт.
28
44006200
BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L
Hardened
4шт.
29
231-42410
LOCK NUT,5/8"-11, GB
NC
4шт.
30
413-740
BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5
NC, Z.P.
1шт.
31
231-4247
LOCK NUT,7/16"-14, GB
NC Hex.
1шт.
32
14892066
PIN
1-1/4" x 8-1/2"
1шт.
33
14816201
SMALL PIN
1" x 2-3/32"
2шт.
34
432-1624
COTTER PIN,1/4" x 1 1/2"
1/4" x 1-1/2"
6шт.
35
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4" Machined
1шт.
36
14816382
SMALL PIN
1" x 3-3/4"
4шт.
37
17616021
BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L
1" Machined
4шт.
38
14816686
PIVOT PIN
Wing (11 & 13 Shank)
4шт.
39
432-1632
COTTER PIN,1/4" x 2"
(11 & 13 Shank)
4шт.
Выбрано товаров: 35
