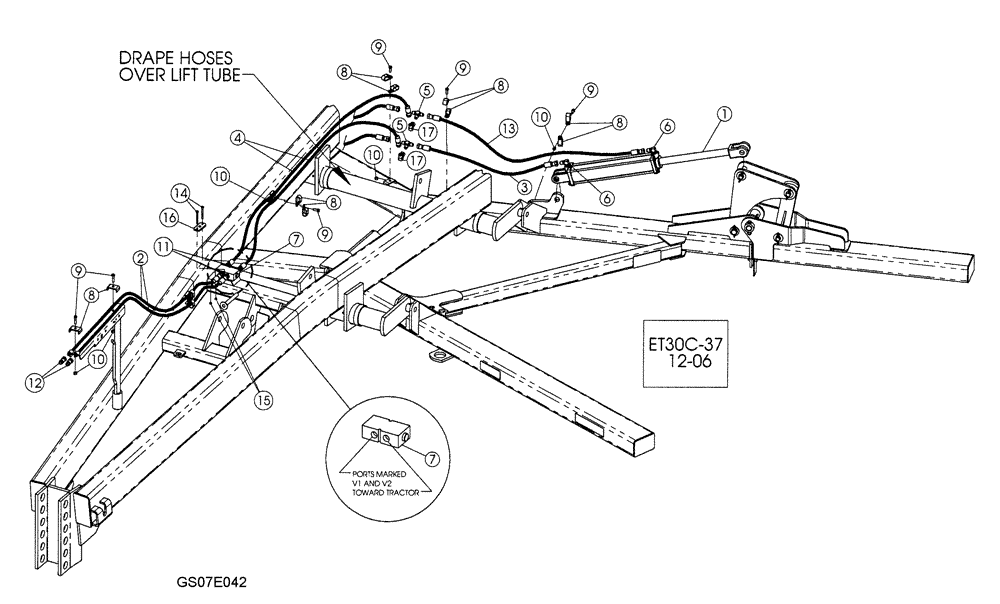

Запчасти Case IH 730C (35.100.02) - DISC ATTACHMENT HYDRAULICS (08) - HYDRAULICS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 3000 p.s.i, Serial Range: -JFH0033978

2шт.

1

25330160R

REMAN-HYD CYLINDER

530C, 730C, Both DMI ECOLO-TIGER®, 3 x 16, 3000 p.s.i, Serial Range: -JFH0033978

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

3-1/2 x 16, 3000 p.s.i, Start Serial: JFH0033979

2шт.

2

25610716

HYDRAULIC HOSE

3/8 x 144, Serial Range: -JFH0033978

2шт.

2

147779C1

HYDRAULIC HOSE

1/4 X 145, Start Serial: JFH0033979

2шт.

3

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

, Serial Range: -JFH0033978

2шт.

3

1284278C1

HYDRAULIC HOSE

1/4 x 41, Start Serial: JFH0033979

2шт.

4

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

, Serial Range: -JFH0033978

2шт.

4

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

, Start Serial: JFH0033979

2шт.

5

218-594

TEE,3/4"-16, 37 Degree

JICM, Serial Range: -JFH0033978

2шт.

5

218-593

TEE,9/16"-18, 37 Degree

, Start Serial: JFH0033979

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM, Serial Range: -JFH0033978

4шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

, Start Serial: JFH0033979

4шт.

7

298624A1

VALVE

1шт.

8

06200125

HOSE CLAMP

6шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

NC

6шт.

10

425-106

NUT,3/8"-16, Cl 5

Hex.

6шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

SAEM x JICM, Serial Range: -JFH0033978

4шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

, Start Serial: JFH0033979

4шт.

12

25705041

COUPLING

Male ISO, 3/4 SAEF, Hydraulic

2шт.

13

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

, Serial Range: -JFH0033978

2шт.

13

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

, Start Serial: JFH0033979

2шт.

14

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

Hex. NC

2шт.

15

86992211

NUT

1/4, NC, Stover

2шт.

16

09987521

PLATE

Top

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

, Serial Range: -JFH0033978

2шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

JICM x JICF, Swivel, Start Serial: JFH0033979

2шт.
