Запчасти Case IH 730C (35.100.01) - MAIN FRAME HYDRAULIC (08) - HYDRAULICS

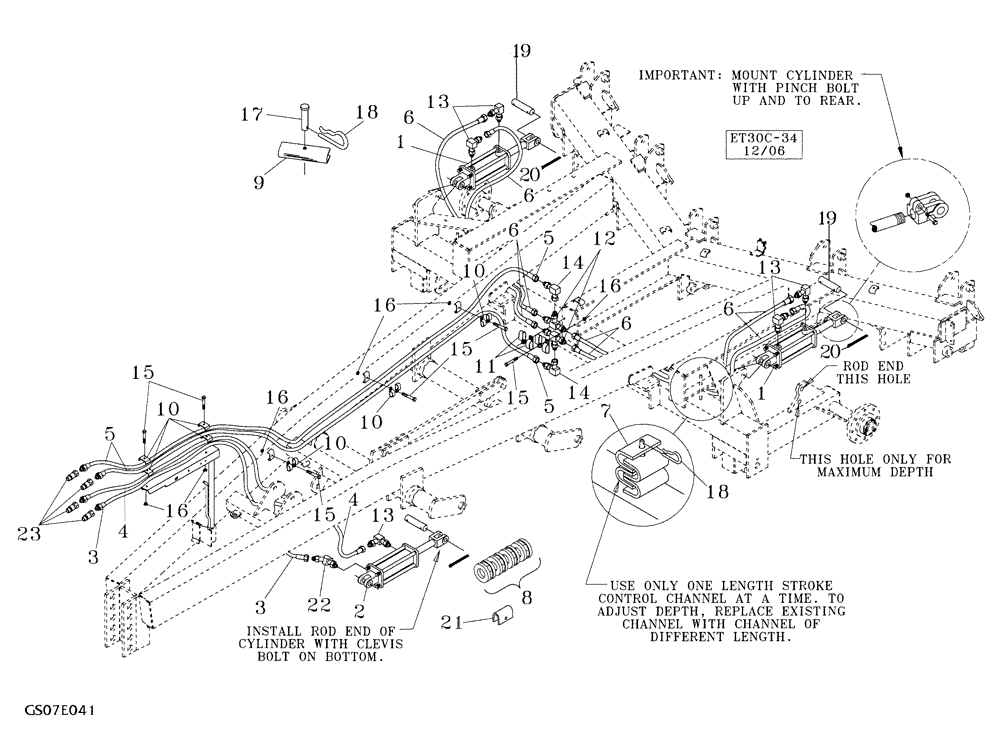

Схема запчастей Case IH 730C - (35.100.01) - MAIN FRAME HYDRAULIC (08) - HYDRAULICS
18
20
10
9
23
15
7
16
22
5
16
18
10
15
1
2
13
15
13
10
6
16
20
16
14
15
4
19
4
13
5
15
6
17
3
6
6
21
10
3
19
1
12
14
6
5

Артикул

Название

Примечание

Количество

1

87374723

CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

3 x 12, 3000 p.s.i, 5 Shank

2шт.

1

87374728

CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2 x 12, 3000 p.s.i, 7 Shank

2шт.

2

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 3000 PSI

1шт.

3

25610716

HYDRAULIC HOSE

3/8 x 144

1шт.

4

25610717

HYDRAULIC HOSE

3/8 x 150

1шт.

5

25610849

HYDRAULIC HOSE,12.7mm ID x 6604mm L, SAE 100R17

1/2 x 260, Start Serial: JFH0033979

2шт.

5

25610903

HYDRAULIC HOSE,0.50" ID x 245.00", SAE 100R17

, Serial Range: -JFH0033978

2шт.

6

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

4шт.

7

09900250B

KIT

1-1/4 Rod, Main Lift, Blue, 5 Shank

1шт.

7

09900240B

KIT

Arm Assy, 1-1/2 Rod, Main Lift, Blue, 7 Shank

1шт.

8

25800010

CYLINDER

1-1/4 Rod, Disc Or Coulter Kit

1шт.

9

09967021

STOP

Cylinder Stop, 11-1/2, Transport

2шт.

10

06200125

HOSE CLAMP

5шт.

11

22530601

HOSE CLAMP

Double

2шт.

12

218-594

TEE,3/4"-16, 37 Degree

Tube, Side Swivel

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

5шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

15

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

NC

7шт.

16

425-106

NUT,3/8"-16, Cl 5

NC Hex.

7шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, Clevis

5шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

7шт.

19

87735776

PIN,25.4mm OD x 111.5mm L

1, Clevis

4шт.

20

432-1632

COTTER PIN,1/4" x 2"

4шт.

21

09650207

STAY

Cylinder Stop, 4-1/2, Disc

1шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

SAEM x JICM, Swivel

1шт.

23

25705041

COUPLING

Male, ISO-3/4, SAEF Hydraulic

4шт.

Выбрано товаров: 26
