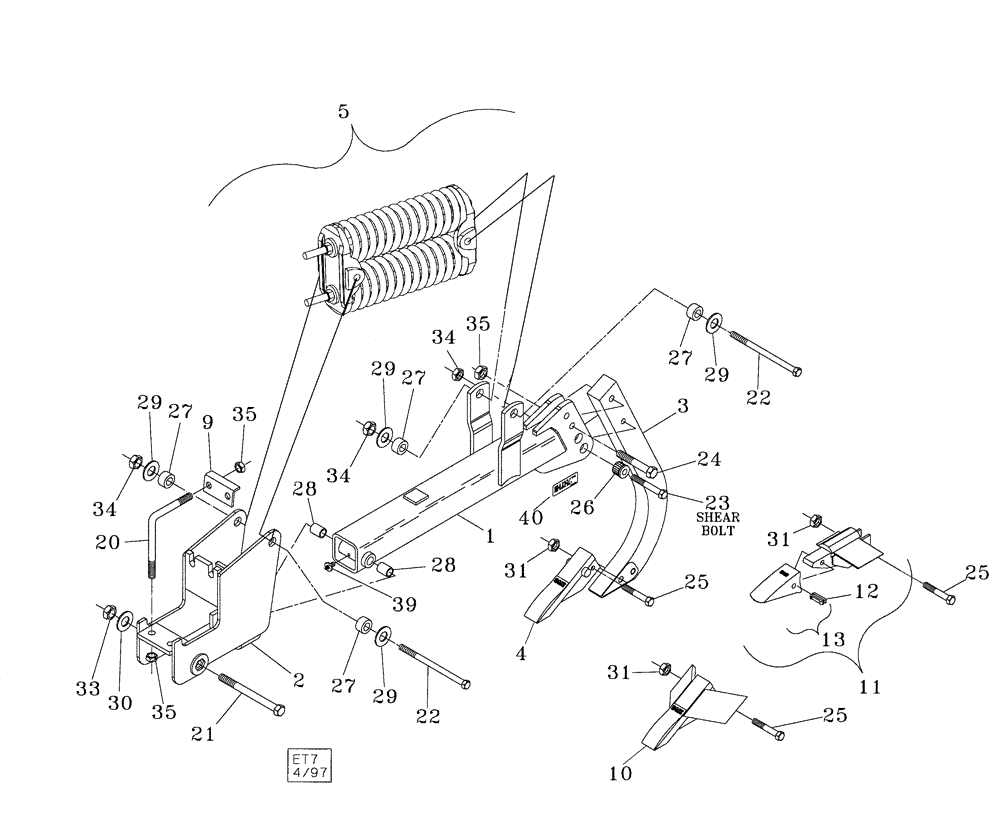

Запчасти Case IH 730C (75.200.10) - LEAD SHANK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09984810

BAR ASSY.

Lead Shank, Beam

1шт.

2

09984820

SHANK

Mount

1шт.

3

33010010

SHANK

Heat Treated

1шт.

4

87460075

POINT RIPPER SHANK

Does Not Include Hardware

1шт.

5

09984815

SPRING

Assembly

1шт.

9

09561200

PLATE

1шт.

10

87460070

POINT RIPPER SHANK

7, Tiger, Does Not Include Hardware

1шт.

11

87460158

POINT RIPPER SHANK

7, Replacable Tip Tiger, Does Not Include Hardware

1шт.

12

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex, Split Pin/ Safety Pin

1шт.

13

87412311

TIP

Replacable

1шт.

14

09900012

SHANK

Complete Lead, Less Point

1шт.

20

87427193

SPECIAL BOLT

3/4, NC x 7-9/16, Square

2шт.

21

16901435

BOLT

7/8 x 7-3/4, NC, Hex., Gd 5

1шт.

22

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex., Gd 5

2шт.

23

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Shear

1шт.

24

16901215

BOLT

3/4 x 3-3/4, NC, A325

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

NC

1шт.

26

44006511

BUSHING

Large, 5/8, Serrated, Painted

4шт.

27

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T., Painted

2шт.

28

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

7/8, ID, Hardened

2шт.

29

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

4шт.

30

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8, ID

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

Hex.

1шт.

33

85700693

NUT,5/8" - 11, Gr C

1шт.

34

425-1010

NUT,5/8"-11, G5

Hex.

3шт.

35

425-1012

NUT,3/4"-10, G5

Hex.

5шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Self-Tapping, Fitting

1шт.

40

18534233

DECAL

Shear Bolt

1шт.
