Запчасти Case IH 730C (75.200.05) - MAIN FRAME SHEAR BOLT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

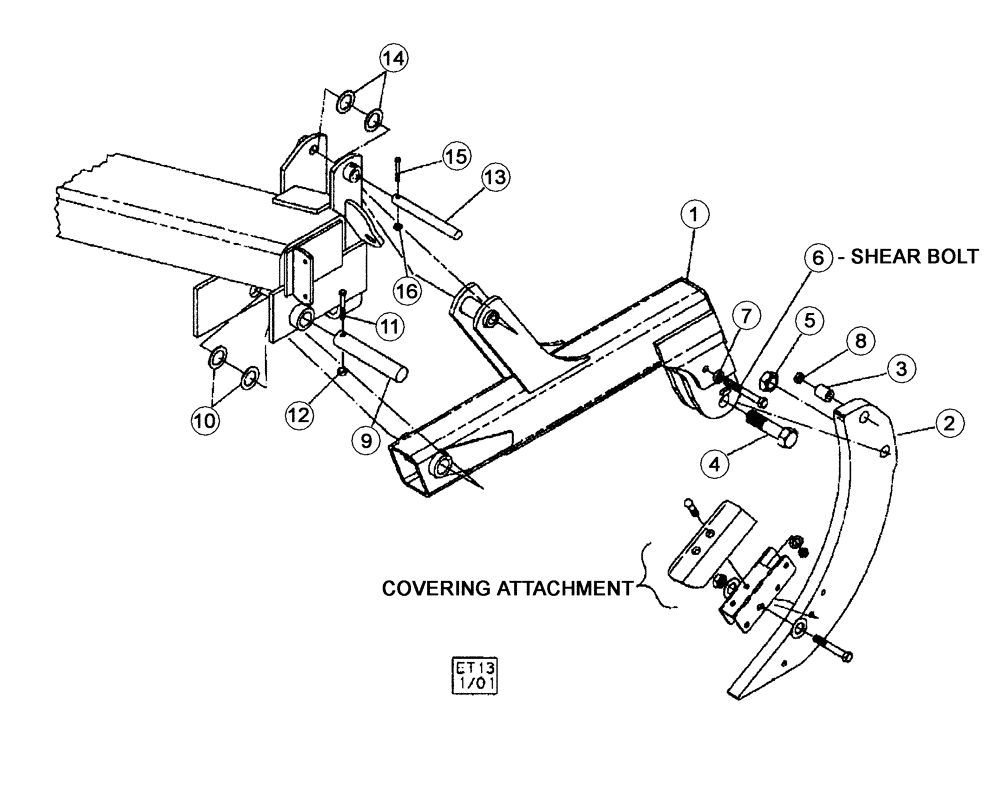

Схема запчастей Case IH 730C - (75.200.05) - MAIN FRAME SHEAR BOLT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
12
13
11
2
8
4
15
16
5
9
6
7
3
14
1

Артикул

Название

Примечание

Количество

1

09967360

BEAM ASSY.

Shear Bolt, Start Serial: JFH0005894

1шт.

2

09983476

SHANK

Hard Surfaced, Includes. 3

1шт.

3

44006530

BUSHING

Large, 1-1/2

1шт.

4

16902016

BOLT

1-1/4 x 4, NC, Hex., Gd 5

1шт.

5

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

1-1/4, NC

1шт.

6

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

7

44006520

BUSHING

Large, 1-5/16

1шт.

8

85700693

NUT,5/8" - 11, Gr C

, Start Serial: JFH0005894

1шт.

9

14892671

SPECIAL PIN,41.27mm OD x 230.12mm L

1-5/8, Serial Range: -JFH003286

1шт.

10

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine, 10 Ga, Start Serial: JFH0005894

2шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

NC, Serial Range: -JFH003286

1шт.

12

86992213

NUT

3/8, NC

1шт.

13

00148150

SPECIAL PIN

1

1шт.

14

17616020

WASHER

1, Machine

2шт.

15

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

NC, Hex.

1шт.

16

86992215

LOCK NUT,1/2"-13, GC

NC, Serial Range: -JFH003286

1шт.

23

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3, NC, Hex, Gd 5 Not Shown

1шт.

26

495-21056

WASHER,1/2"

1/2, Standard Not Shown

1шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

NC, Not Shown

1шт.

Выбрано товаров: 19
