Запчасти Case IH 730C (75.200.02) - RIGID DISC MOUNT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

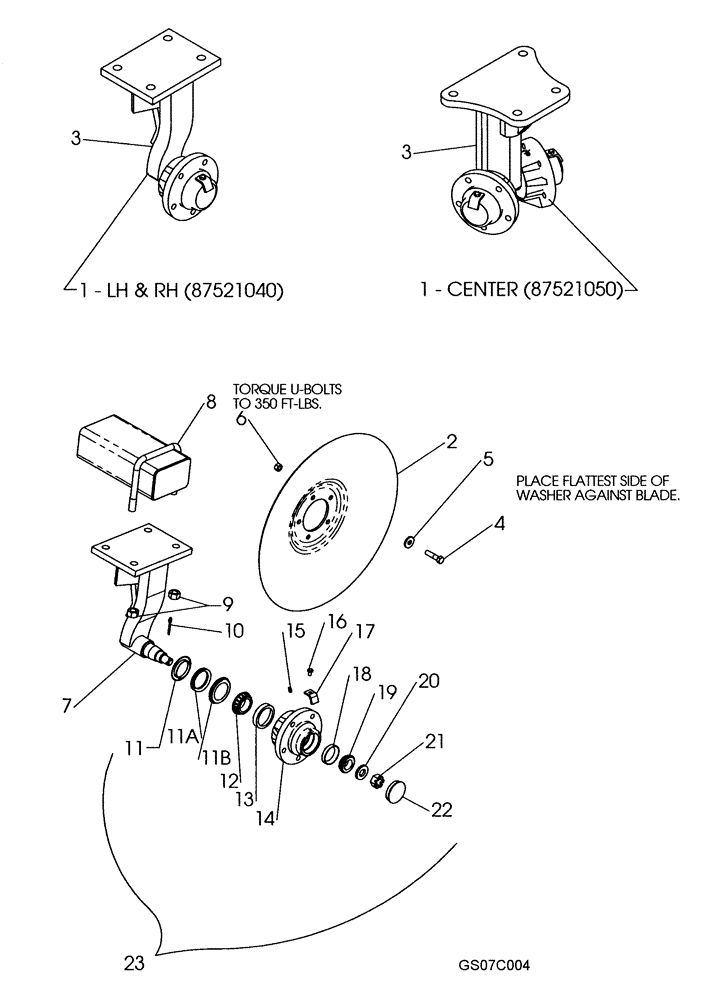

Схема запчастей Case IH 730C - (75.200.02) - RIGID DISC MOUNT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
3
3
1
9
22
14
8
6
19
12
20
13
2
21
10
23
11b
18
7
4
1
5
17
16
11a
15
11

Артикул

Название

Примечание

Количество

1

87521050

MOUNTING PLATE

Rigid Mount Assembly, Center

1шт.

1

87521040

MOUNTING PLATE

Rigid Mount Assembly, Rh And Lh

1шт.

2

87457567

TILLAGE BLADE

22

1шт.

2

87457566

TILLAGE BLADE

24

1шт.

3

87532148

MOUNTING PARTS

Disk Outer, Lh And Rh

1шт.

3

87534000

MOUNTING PARTS

Disk, Center

1шт.

4

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

5

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

7

28390141

BAR ASSY.

Spindle, LH and RH

1шт.

7

NA

NOT SERVICED

Spindle, Center

1шт.

8

87427182

U-BOLT

BOLT "U" 3/4 x 4 x 7-1/2

2шт.

9

280375

NUT,3/4"-10, GC

7шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

11

87415558

SEAL,53.87mm ID x 78.26mm OD x 1.52mm Thk

Retainer

1шт.

11a

87415557

SEAL

1шт.

11b

87415559

SEAL,55.63mm ID x 82.55mm OD x 1.02mm Thk

Counterface

1шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625, LM501349

1шт.

13

663558R1

BEARING CUP

2.892, LM501310

1шт.

14

28705012

HUB ASSY.

With Cups

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1/4-28, Self Tap

1шт.

16

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 NC x 1/2, Gd 5, ZND

1шт.

17

09970770

RETAINER

Dust Cap

1шт.

18

651817R1

BEARING CUP

2.33, LM67010

1шт.

19

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, LM67048

1шт.

20

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

1шт.

21

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

22

28490001

HUB CAP

1шт.

23

87328665

PROFILE

Complete, Center

1шт.

Выбрано товаров: 29
