Запчасти Case IH 730C (39.110.03) - REAR HITCH 7 - SHANK (09) - CHASSIS/ATTACHMENTS

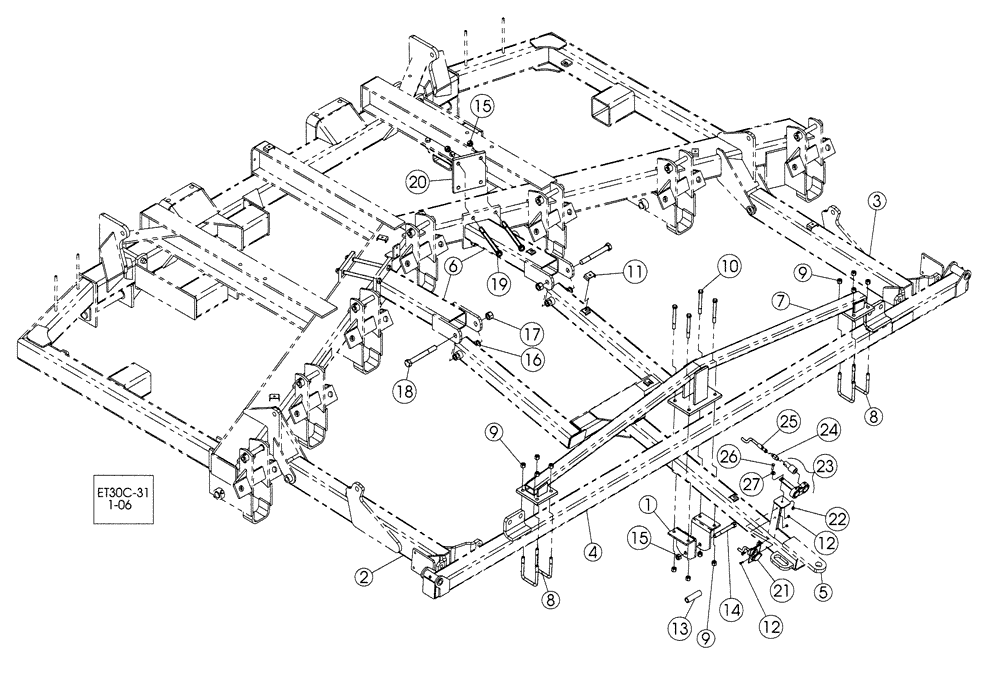

Схема запчастей Case IH 730C - (39.110.03) - REAR HITCH 7 - SHANK (09) - CHASSIS/ATTACHMENTS
16
15
9
5
17
12
12
14
6
11
22
4
26
15
1
8
3
13
10
25
2
8
9
18
24
19
23
7
20
27
9
21

Артикул

Название

Примечание

Количество

1

09967727

BAR ASSY.

Pivot Guide

2шт.

2

87331553

ARM ASSY.

Pivot Weldment, LH

1шт.

3

87332115

ARM ASSY.

Pivot Weldment, RH

1шт.

4

87332645

SUPPORT TUBE

Rear Leveler Bar

1шт.

5

09967720

BRACKET

Pivot, Rear Assy

1шт.

6

87334769

PEDESTAL

Rear Hitch

2шт.

7

87398411

TRUSS ROD

Rear Hitch

1шт.

8

87427161

U-BOLT

BOLT "U" 5/8 NC x 4 x 5.5 ZND

4шт.

9

85700693

NUT,5/8" - 11, Gr C

ZP

12шт.

10

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

ZP

4шт.

11

06200125

HOSE CLAMP

2шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

ZND

3шт.

13

09967728

SPACER

Rear Hitch

1шт.

14

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

ZND

1шт.

15

425-1012

NUT,3/4"-10, G5

NC, ZND

9шт.

16

17616011

BUSHING

Machine, 10 Ga, ZND, Large

4шт.

17

86992219

LOCK NUT

Stover, Gd C, ZP, 1 NC

2шт.

18

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

NC, ZND

2шт.

19

16901245

BOLT

3/4 NC x 10.50 H, Gd 5 ZND

8шт.

20

09967735

PLATE

Mount

2шт.

21

87446763

WIRE HARNESS

Rear Hitch

1шт.

22

86992211

NUT

Stover, Gd C, ZP, 1/4 NC

2шт.

23

25705020

COUPLING, QUICK, FEM

1шт.

24

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

SAEM x JICM

2шт.

25a

25600428

HYDRAULIC HOSE,0.25" ID x 425.00", SAE 100R17

2шт.

25b

25600422

HYDRAULIC HOSE,0.25" ID x 30.00", SAE 100R17

2шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

ZND

1шт.

27

495-21044

WASHER,3/8"

Standard, ZND

1шт.

Выбрано товаров: 28
