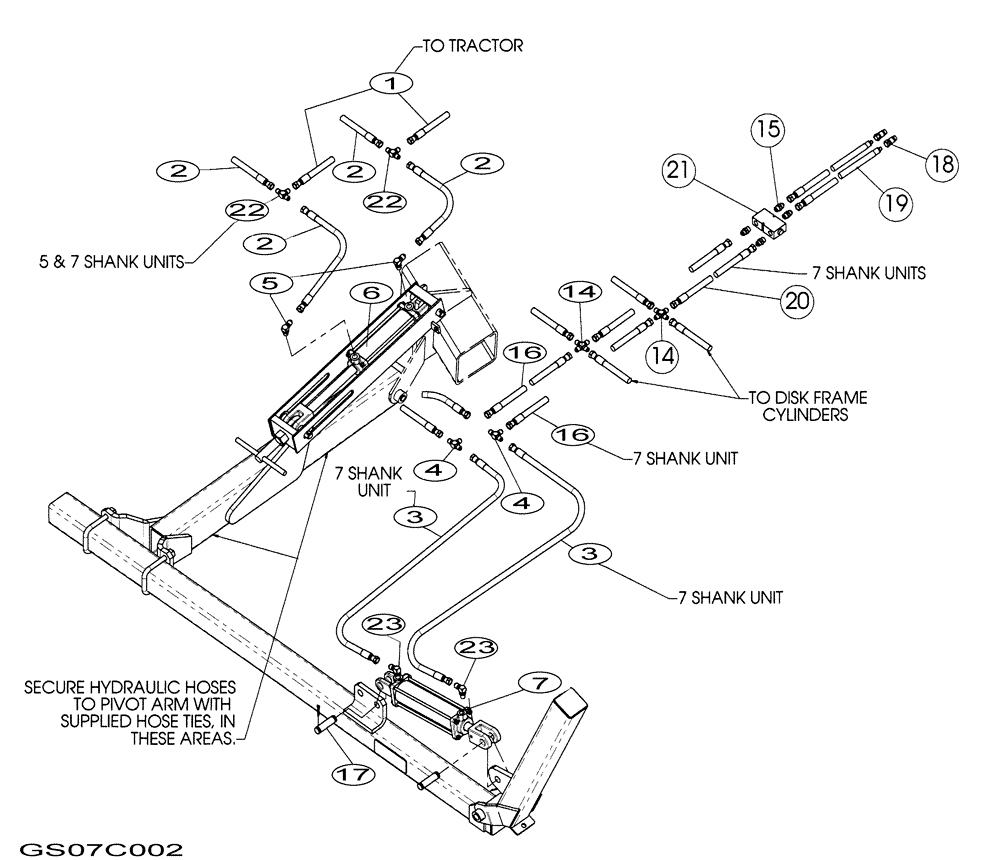

Запчасти Case IH 730C (35.100.04) - DISC LEVELER HYDRAULICS (08) - HYDRAULICS

1

25610701

HYDRAULIC HOSE

3/8 x 310

2шт.

2

25600692

HYDRAULIC HOSE,0.38" ID x 108.00", SAE 100R17

4шт.

3

25600814

HYDRAULIC HOSE

3/8 x 148, 7 Shank, Serial Range: -JFH0033978

1шт.

3

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

1/4 x 150, 7 Shank, Start Serial: JFH0033979

1шт.

4

218-594

TEE,3/4"-16, 37 Degree

JICM, Serial Range: -JFH0033978

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

, Start Serial: JFH0033979

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM x SAEM

4шт.

6

25330083

CYLINDER ASSY.

3 x 8, Main Lift, 3000 p.s.i.

2шт.

7

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10, Wing Lift, 3000 p.s.i.

2шт.

7

25330101R

REMAN-HYD CYLINDER

530C, 730C, Both DMI ECOLO-TIGER®, Wing Lift, 3000 p.s.i.

2шт.

7

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

8

06200125

HOSE CLAMP

(Not Shown)

1шт.

9

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP Plastic, 20, (Not Shown)

1шт.

10

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Clamp, 6, Hose Tie, (Not Shown)

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1 Clamp (Not Shown)

1шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2 Clamps (Not Shown)

1шт.

12

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3 Clamps (Not Shown)

1шт.

12

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4 Clamps (Not Shown)

1шт.

13

425-106

NUT,3/8"-16, Cl 5

Hex.(Not Shown)

1шт.

14

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

JICM, 7 Shank Disc Frame Only, Serial Range: -JFH0033978

2шт.

14

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

7 Shank Disc Frame Only, Start Serial: JFH0033979

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

SAEM - JICM, Serial Range: -JFH0033978

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

, Start Serial: JFH0033979

1шт.

16

25600739

HYDRAULIC HOSE,0.38" ID x 86.50", SAE 100R17

, Serial Range: -JFH0033978

2шт.

16

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

, Start Serial: JFH0033979

2шт.

17

25890100

KIT

1 Dia.,2 Pins

2шт.

18

25705041

COUPLING

ISO, Male

2шт.

19

25610716

HYDRAULIC HOSE

3/8 x 144, Serial Range: -JFH0033978

1шт.

19

147779C1

HYDRAULIC HOSE

1/4 x 145, Start Serial: JFH0033979

2шт.

20

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

, Serial Range: -JFH0033978

1шт.

20

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

, Start Serial: JFH0033979

1шт.

21

298624A1

VALVE

Double, Piloted Check

1шт.

22

218-594

TEE,3/4"-16, 37 Degree

2шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

, Serial Range: -JFH0033978

4шт.

23

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

, Start Serial: JFH0033979

4шт.
