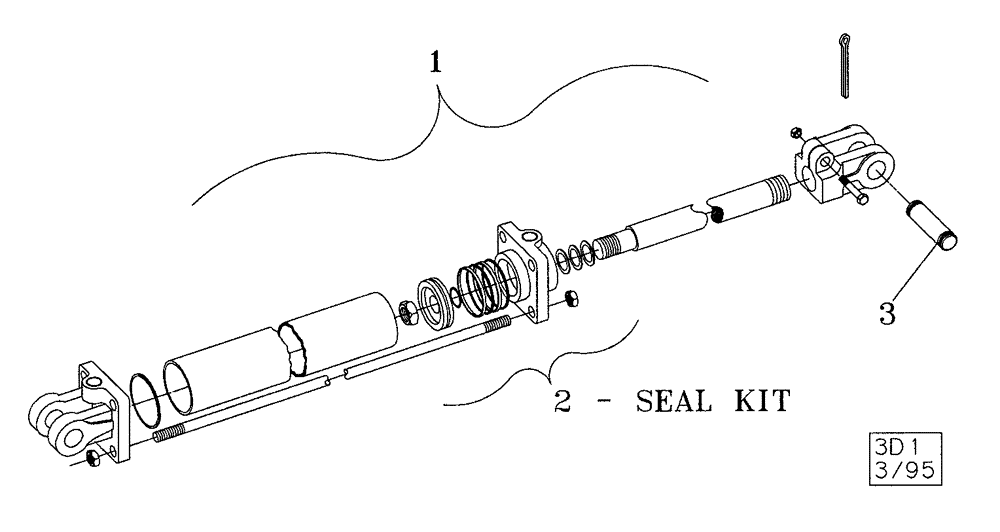

Запчасти Case IH 730C (35.100.03) - HYDRAULIC CYLINDER ASSEMBLY 3000 PSI (08) - HYDRAULICS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, Disc Wings, SAE Ports, 20-1/4 Closed, Serial Range: -JFH0033978

1шт.

1

25330160R

REMAN-HYD CYLINDER

530C, 730C, Both DMI ECOLO-TIGER®, 3000 PSI, 3 x 16, Disc Wings, SAE Ports, 20-1/4 Closed, Serial Range: -JFH0033978

1шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, Disc Lift, SAE Ports, 20-1/4 Closed

1шт.

1

87374723

CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

3 x 12, SAE Ports, 22-1/4 Closed

1шт.

1

87374728

CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2 x 12, SAE Ports, 22-1/4 Closed

1шт.

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16, 3000 PSI, Start Serial: JFH0033979

1шт.

2

25833007

SEAL KIT

1-1/4, Dia, Rod 3 (Used on Disc Wings & 5 Shank Main Lift)

1шт.

2

25833527

SEAL KIT

Hydraulic Cylinder,1-1/2, Dia, Rod 3-1/2 (Used on Disk Lift)

1шт.

3

25890100

KIT

1 Clevis, Used For All Cylinders

1шт.

3

220553A1

SET OF SCREWS

Clevis Bag, Used For Main Frame

1шт.
