Запчасти Case IH 730C (55.404.04) - WARNING AND TAILIGHT KIT 7 SHANK WITH LEVELER (04) - ELECTRICAL SYSTEMS

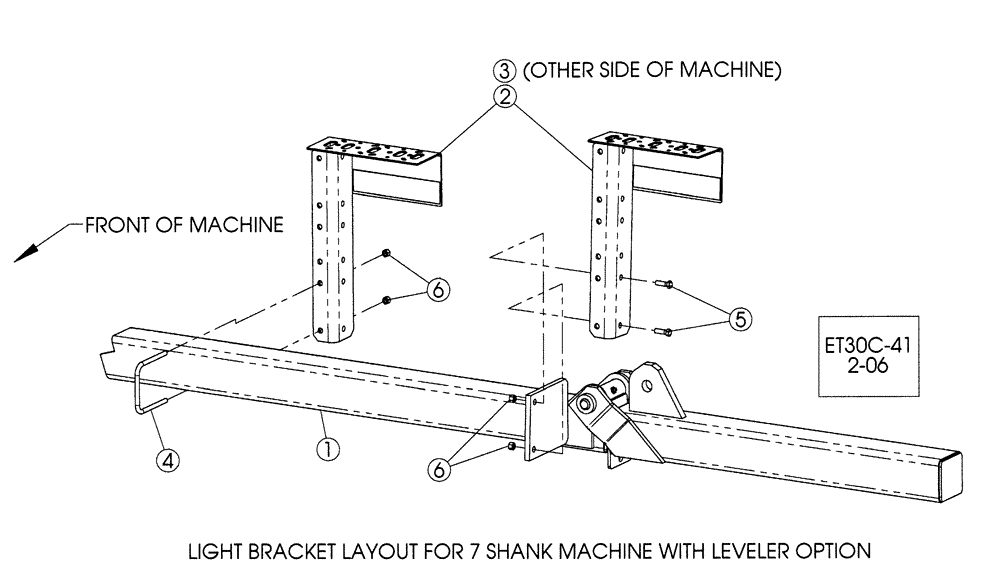

Схема запчастей Case IH 730C - (55.404.04) - WARNING AND TAILIGHT KIT 7 SHANK WITH LEVELER (04) - ELECTRICAL SYSTEMS
1
5
2
3
6
6
4

Артикул

Название

Примечание

Количество

1

87332645

SUPPORT TUBE

Rear Leveler Bar

1шт.

2

87328898

BRACKET

Light, Short, Lh With Reflectors

1шт.

3

87328897

BRACKET

Ligth, Short, Rh With Reflectors

1шт.

4

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8 x 4 x 4

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

86992213

NUT

Stover

4шт.

Выбрано товаров: 6
