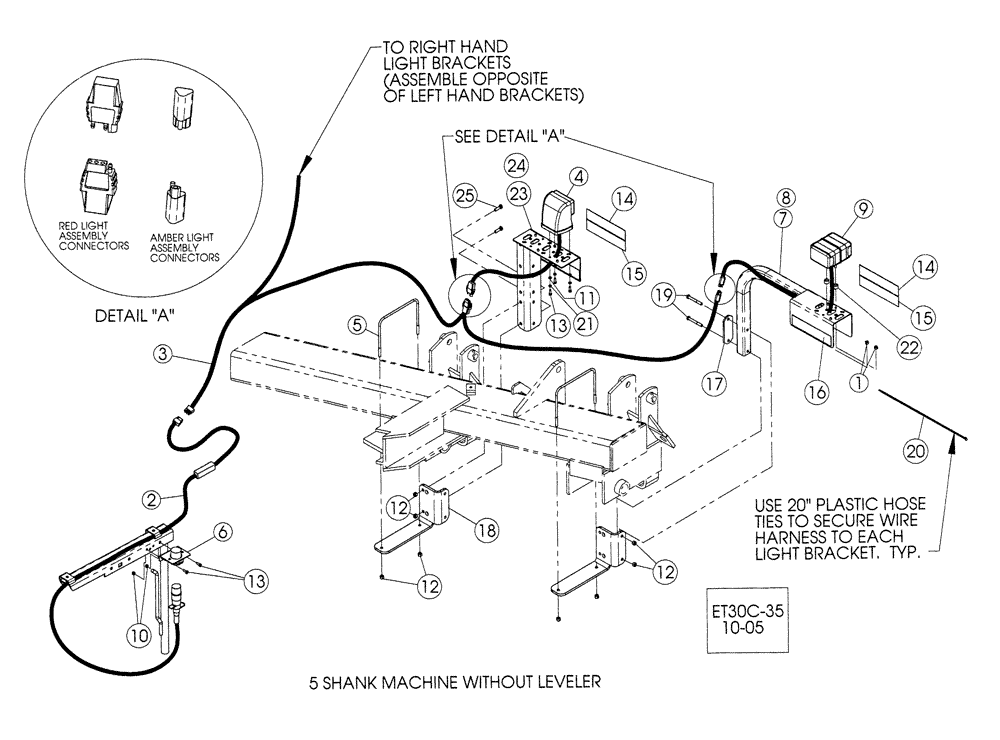

Запчасти Case IH 730C (55.404.01) - WARNING AND TAILLIGHT KIT 5 SHANK WITHOUT LEVELER (04) - ELECTRICAL SYSTEMS

1

86992212

NUT

5/16 Stover, gd C, ZP

4шт.

2

87446676

WIRE HARNESS

Front

1шт.

3

87446758

WIRE HARNESS

Rear

1шт.

4

87446791

LAMP

Single Red

2шт.

5

87459889

BRACKET

3/8 x 8.68 x 7, U-Bolt

4шт.

6

27601214

HOLDER

Plug

1шт.

7

87460060

BRACKET

Light Assembly, Lh, 5 Shank, Inc. Reflectors

1шт.

8

87460061

BRACKET

Light Assembly, Rh, 5 Shank, Inc. Reflectors

1шт.

9

87446792

LAMP,12V, 21W, Amber

Amber

2шт.

10

86992211

NUT

0.25, ZP, Stover, gd C

2шт.

11

495-81102

WASHER,.266" x 1/2" x .060"

6шт.

12

231-4246

LOCK NUT,3/8"-16, GB

15шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

14

311865A1

REFLECTOR

ASAE, Fluorescent, 2 x 9

4шт.

15

311863A1

REFLECTOR

ASAE, Red, 2 x 9

4шт.

16

311864A1

REFLECTOR

ASAE, Amber, 2 x 9

4шт.

17

395080A1

PLATE

Backking

2шт.

18

87459890

BRACKET

Light, Bolt On

4шт.

19

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

20

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP

1шт.

21

492-11025

LOCK WASHER,1/4"

6шт.

22

87449661

SPACER

Bushing, Amber Light

4шт.

23

87328901

BRACKET

Light, Short, Lh, Inc. Reflectors

1шт.

24

87328899

BRACKET

Light, Short, Rh, Inc. Reflectors

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

26

87459024

LENS

Red, Not Shown

1шт.

Used On 87446791 Lamp

1шт.

26

87459023

LENS

Amber, Not Shown

1шт.

Used On 87446792 Lamp

1шт.
