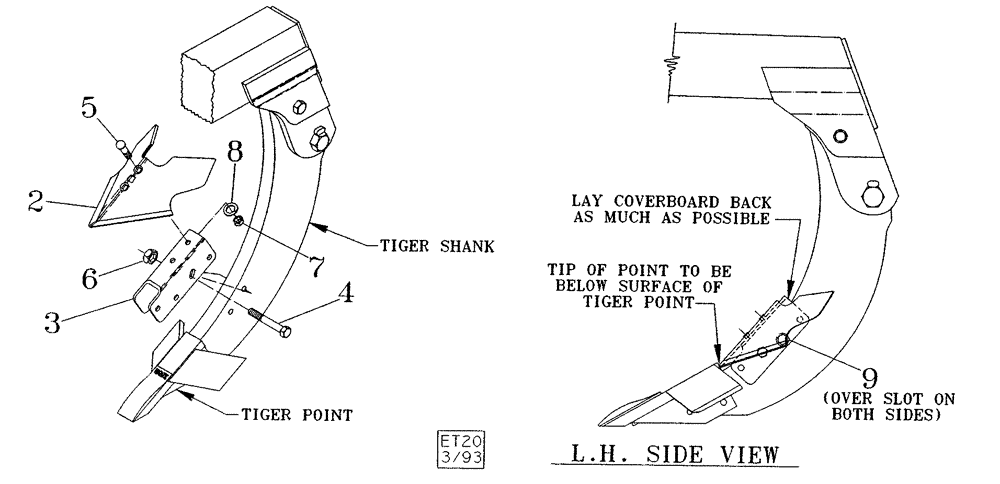

Запчасти Case IH 730C (75.200.09) - 6 & 8 COVERING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

09990035

MOLDBOARD

6, Covering

1шт.

1

09990030

MOLDBOARD

8, Covering

1шт.

2

33310081

LANDSIDE

6, With Hardware

1шт.

2

33310070

MOLDBOARD

8, With Hardware

1шт.

3

09965000

BRACKET

1-1/2 Shank

1шт.

4

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

5

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

425-107

NUT,7/16"-14, G5

2шт.

8

492-11044

LOCK WASHER,7/16"

2шт.

9

495-21056

WASHER,1/2"

Flat

2шт.
