Запчасти Case IH 730C (75..200.04) - AUTO RESET SHANK ASSEMBLY 2007 MODELS AND AFTER (09) - CHASSIS/ATTACHMENTS

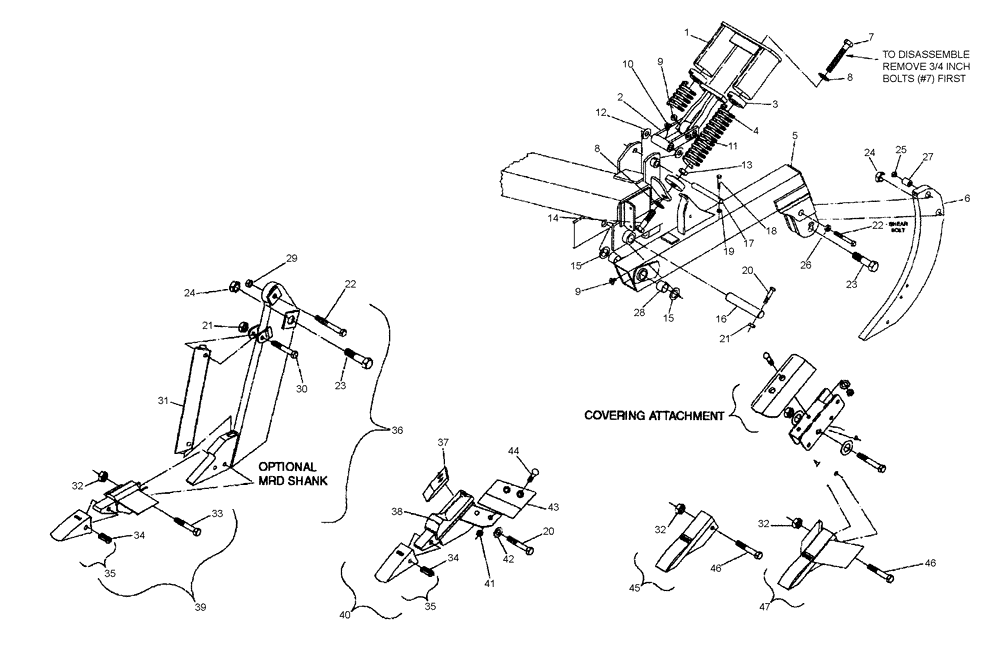

Схема запчастей Case IH 730C - (75..200.04) - AUTO RESET SHANK ASSEMBLY 2007 MODELS AND AFTER (09) - CHASSIS/ATTACHMENTS
44
12
34
15
8
21
35
34
23
32
16
8
6
45
25
9
32
4
24
5
1
3
24
36
43
46
38
14
33
39
10
1
42
47
32
37
29
1
22
19
18
7
35
40
21
27
41
20
31
9
46
26
30
2
23
17
20
28
15

Артикул

Название

Примечание

Количество

1

09984675

SPRING BOX

Auto-Reset Canister

1шт.

2

09984650

LINK/SHACKLE

Auto-Reset

1шт.

3

20090090

SPRING BOX

Casting

4шт.

4

24162501

COIL SPRING

Compression

2шт.

5

09984645

BEAM ASSY.

Inc. 39 & 41

1шт.

6

09983476

SHANK

Hard Surfaced, Inc. 40

1шт.

7

16901225

CAPSCREW,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4 x 6-1/2, NC, Hex, Gd 5

2шт.

8

17413011

WASHER

3/4, Standard

4шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

11

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

12

17616020

WASHER

1 Dia. Machine, 14 Ga

2шт.

13

425-1012

NUT,3/4"-10, G5

1шт.

14

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

15

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8, Dia. 14 Ga

2шт.

16

14892671

SPECIAL PIN,41.27mm OD x 230.12mm L

1-5/8 Dia. H.T.

1шт.

17

00148150

SPECIAL PIN

1 Dia.

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

231-4246

LOCK NUT,3/8"-16, GB

1шт.

20

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

21

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

22

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

23

16902016

BOLT

1-1/4 x 4, NC, Hex, Gd 5

1шт.

24

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

25

425-1010

NUT,5/8"-11, G5

1шт.

26

44006520

BUSHING

1-5/16

2шт.

27

44006530

BUSHING

1-1/2

1шт.

28

44016250

SPACER

1-5/8

2шт.

29

85700693

NUT,5/8" - 11, Gr C

1шт.

30

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

31

09581761

BAR ASSY.

MRD Shin

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

1шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

34

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

35

87412311

TIP

Replacable, Inc. 34

1шт.

36

09983485

SHANK

MRD Assembly, Inc. 36 & 21

1шт.

37

09907002

FRAME

Rh, Wing, Inc. 32 & 44

1шт.

38

87460073

POINT RIPPER SHANK

Replacable Basse, Inc. 20

1шт.

39

87460158

POINT RIPPER SHANK

7, Replacable Tip Assembly

1шт.

40

87460159

POINT RIPPER SHANK

Replacable Tip Tiger

1шт.

41

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

42

495-21056

WASHER,1/2"

Standard

1шт.

43

09907003

FRAME

Lh, Wing, Inc. 32 & 44

1шт.

44

16208065

PLOW BOLT

1/2 x 1-1/2, NC

4шт.

45

87460071

POINT RIPPER SHANK

2 Straight Assembly

1шт.

46

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

47

87460074

POINT RIPPER SHANK

7 Tiger, Assembly

1шт.

47

87460072

POINT RIPPER SHANK

10 Tiger, Assembly

1шт.

Выбрано товаров: 48
