Запчасти Case IH 730C (75.200.01) - CUSHION DISC MOUNT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

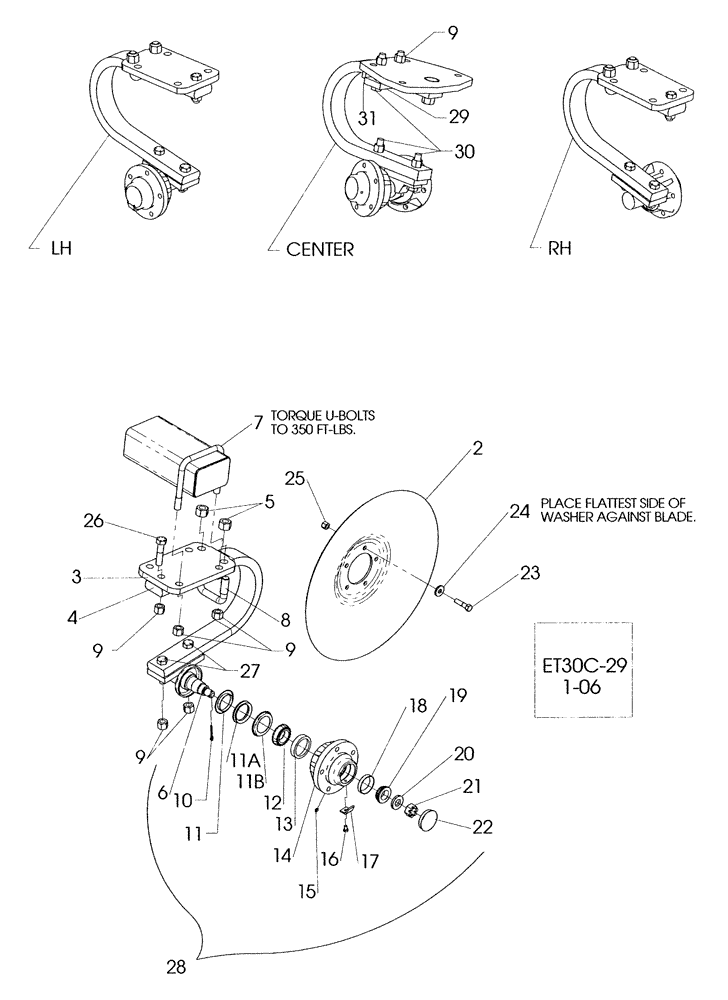

Схема запчастей Case IH 730C - (75.200.01) - CUSHION DISC MOUNT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
11
7
23
9
9
3
29
24
25
6
28
17
26
5
31
2
15
4
30
11b
18
19
27
9
22
13
20
16
12
14
21
8
11a
6

Артикул

Название

Примечание

Количество

1

87329119

MOUNTING PARTS

Center, Cushion Mount, Assembly

1шт.

1

87541406

SHANK

Rh, Cushion Mount Assembly

1шт.

1

87541407

SHANK

Lh, Cushion Mount Assembly

1шт.

2

87457567

TILLAGE BLADE

22, Blade

1шт.

2

87457566

TILLAGE BLADE

24, Blade

1шт.

3

87394229

PLATE

Flat

1шт.

3

87329424

PLATE

Flat, Center Mount Only

1шт.

4

87429835

HANGER

Bearing, Painted, R & L

1шт.

4

87328544

HANGER

Painted, Center

1шт.

5

87681198

NUT,Hex, 7/8"-9, 0.45 high

Stover, gd C, ZP, 7/8 NC

2шт.

6

09987810

SHANK

Hub & Spindle Assembly

1шт.

6

87328289

STUB AXLE/STEERING S

Center Hub & Spindle Assembly

1шт.

7

87427182

U-BOLT

BOLT "U" 3/4 x 4 x 7-1/2

1шт.

7

87427186

U-BOLT

BOLT "U" 3/4 x 6.18

1шт.

8

87518250

U-BOLT

.875 x 3.06 x 3

2шт.

9

280375

NUT,3/4"-10, GC

7шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/ 2, ZP

1шт.

11

87415558

SEAL,53.87mm ID x 78.26mm OD x 1.52mm Thk

Retainer

1шт.

11a

87415557

SEAL

1шт.

11b

87415559

SEAL,55.63mm ID x 82.55mm OD x 1.02mm Thk

Counterface

1шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625, Timken LM501349

1шт.

13

663558R1

BEARING CUP

2.892, Timken LM501310

1шт.

14

28705006

HUB

With Cups

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

16

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

17

87541117

RETAINER,Dust Cap

Dust Cap

1шт.

18

651817R1

BEARING CUP

2.33, Timken LM67010

1шт.

19

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Timken LM67048

1шт.

20

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

1шт.

21

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

22

28490001

HUB CAP

Dust

1шт.

23

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

5шт.

24

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

Special

5шт.

25

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

26

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

R&L

1шт.

26

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

Center

1шт.

27

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

For Use Without Stop

2шт.

28

87577024

HUB

Complete, R & L

1шт.

28

87328335

HUB ASSY.

Complete, Center

1шт.

29

25-1612

NUT,3/4"-10, G5, Hvy

1шт.

30

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

31

410082A1

STRAP

1шт.

Выбрано товаров: 42
