Запчасти Case IH 730C (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

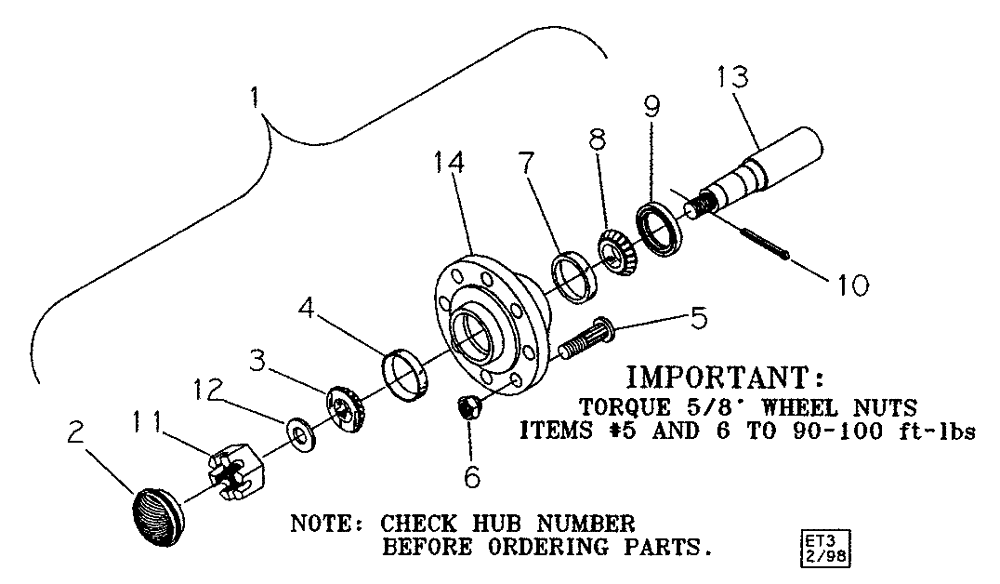

Схема запчастей Case IH 730C - (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS
9
7
10
14
4
5
11
13
8
6
3
12
1
2

Артикул

Название

Примечание

Количество

1

28660800

HUB ASSY.

60-8, 8-Bolt, Inc. 2 - 9, 5 Shank Transport

1шт.

1

28560803

HUB ASSY.

With Spindle, 5 Shank

1шт.

1

87330629

STUB AXLE/STEERING S

80-8, 7 Shank 8 Bolt

1шт.

2

28460800

DUST CAP

5 & 7 Shank, Transport

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62, Bore, Timken LM501349, 5 & 7 Shank Transport

1шт.

4

663558R1

BEARING CUP

2.89, OD, Timken LM501310, 5 & 7 Shank Transport

1шт.

4

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.543 CUP 7 Shank Used with Hub 87330629

1шт.

5

87343929

BOLT

5/8-18 x 2.5, 80-8, 7 Shank

8шт.

5

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8 x 2-1/4, NF, Wheel, 5 Shank Transport

8шт.

6

554480R1

WHEEL NUT

5/8, NF, Wheel, 5 & 7 Shank Transport

8шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.54, OD, Timken JLM506810, 5 & 7 Shank Transport

1шт.

7

663558R1

BEARING CUP

2.892 CUP Used With Hub 87330629

1шт.

8

3216619R91

TAPERED BEARING,55mm ID x 26mm W

2.165, Bore, Timken JLM506848, 5 Shank Transport

1шт.

9

21932750

SEAL

2.75, ID x 3.75, OD, CR531108, 5 & 7 Shank Transport

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

5 & 7 Shank Transport

1шт.

11

425-1316

NUT,1"-14, G5

5 & 7 Shank Transport

1шт.

12

17916100

WASHER

1, Dia, Special, Heavy, 5 & 7 Shank Transport

1шт.

13

87330631

STUB AXLE/STEERING S

7 Shank Transport

1шт.

13

28860803

SPINDLE

5 Shank

1шт.

14

28760800

HUB ASSY.

60-8, With Cups, 5 Shank Transport

1шт.

14

87330630

HUB ASSY.

80-8, With Cups, Inc. 4 -5, 7 "7 Shank"

1шт.

Выбрано товаров: 21
