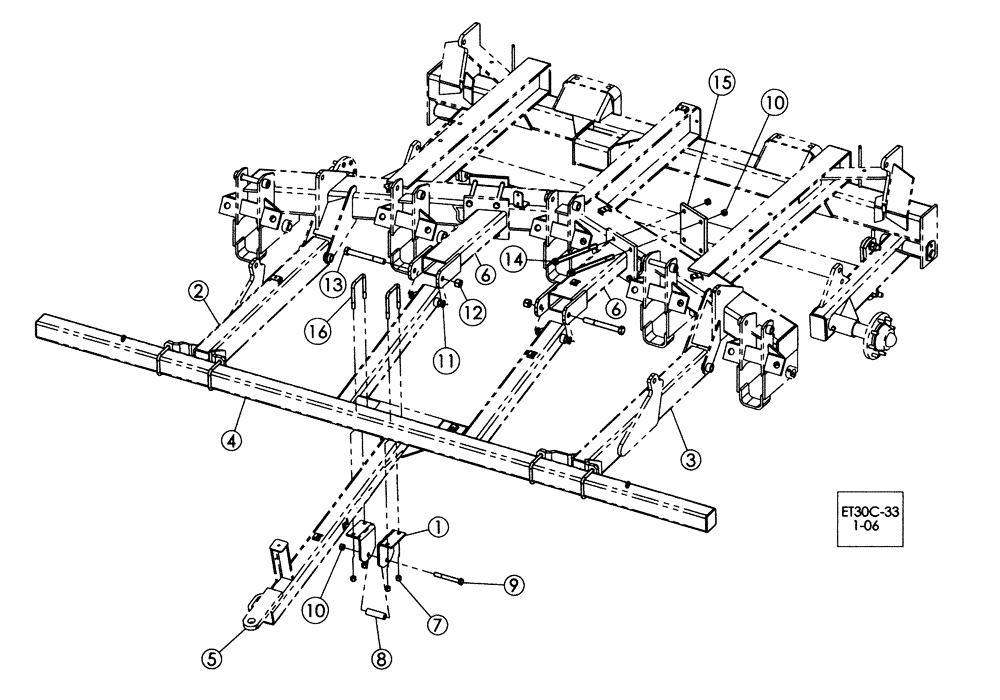

Запчасти Case IH 730C (39.110.02) - REAR HITCH 5 - SHANK (09) - CHASSIS/ATTACHMENTS

1

09967727

BAR ASSY.

Pivot Guide

2шт.

2

87331553

ARM ASSY.

Pivot Weldment, Lh

1шт.

3

87332115

ARM ASSY.

Pivot Weldment, Rh

1шт.

4

87355968

HYD TUBE

Rear Leveler Bar

1шт.

5

09967720

BRACKET

Rear Assy

1шт.

6

87334769

PEDESTAL

Weld, Rear Hitch

2шт.

7

85700693

NUT,5/8" - 11, Gr C

4шт.

8

09967728

SPACER

Bushing

1шт.

9

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

10

425-1012

NUT,3/4"-10, G5

9шт.

11

17616011

BUSHING

1 Machine, 10 ga, ZND

4шт.

12

86992219

LOCK NUT

Stover, gd C, ZP, 1 NC

2шт.

13

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

2шт.

14

16901245

BOLT

3.4 NC x 10.50 H, gd 5, ZND

8шт.

15

09967735

PLATE

Mount

2шт.

16

87427161

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2., ZND

2шт.
