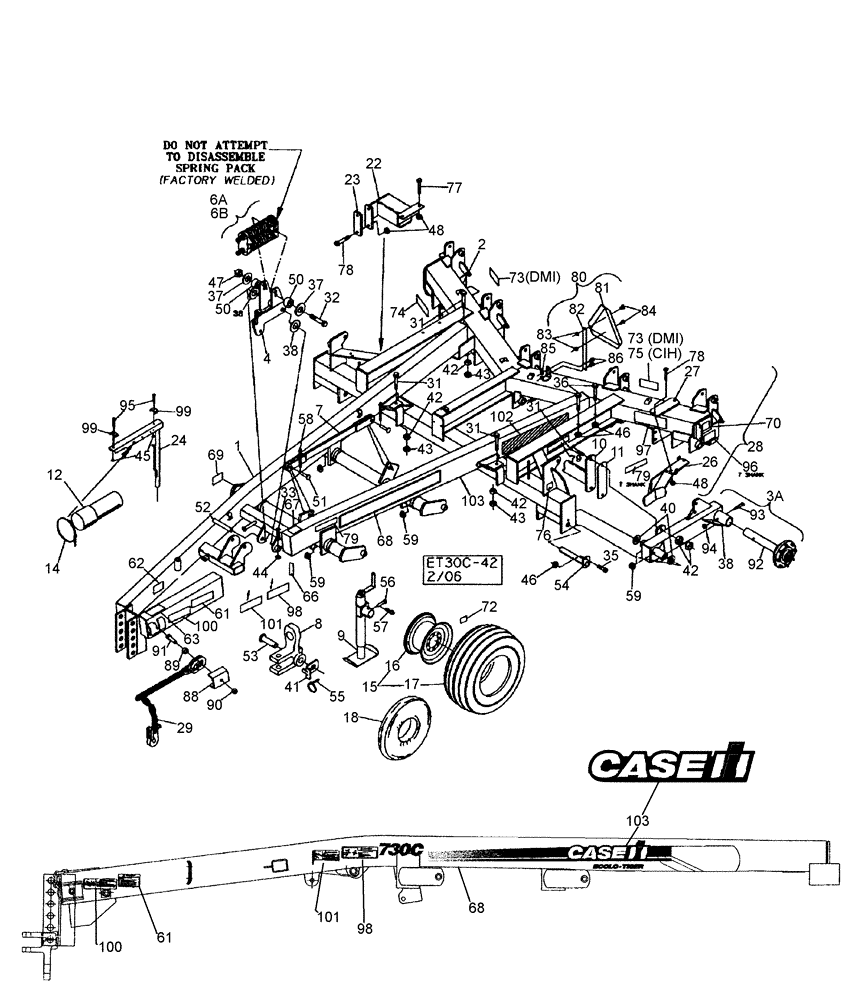

Запчасти Case IH 730C (39.100.01) - MAIN FRAME ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87336442
FRAME, HITCH
Pull, 5 Shank, Red
1шт.
1
87386348
FRAME ASSY
Pull, 7 Shank, Red
1шт.
Used On 2006 And Prior Units
1шт.
1
87520438
FRAME ASSY
530C, Pull, 7 Shank, Red
1шт.
1
87520440
FRAME, HITCH
730C, Pull, 7 Shank, Red
1шт.
After serial # JFH0036928Used On 2007 And After Units
1шт.
2
87333326
FRAME ASSY
Main Frame, 5 Shank, Red
1шт.
2
87332613
FRAME ASSY
Main Frame, 7 Shank, Red
1шт.
3a
09984510
BAR ASSY.
Spindle Arm With Hub, Lh, 530C
1шт.
3a
09984530
BAR ASSY.
Spindle Arm With Hub, Rh, 530C
1шт.
3a
87330822
HUB ASSY.
Spindle Arm With Hub, Lh, 730C
1шт.
3a
87330821
HUB ASSY.
Spindle Arm With Hub, Rh, 730C
1шт.
3b
09984512
BAR ASSY.
Spindle Arm Without Hub, Lh, 530C
1шт.
3b
09984531
BAR ASSY.
Spindle Arm Without Hub, Rh, 530C
1шт.
3b
87330834
ARM ASSY.
Spindle Arm Without Hub, Lh, 730C
1шт.
3b
87330823
ARM ASSY.
Spindle Arm Without Hub, Rh 730C
1шт.
4
09983951
BAR ASSY.
Cylinder Link
1шт.
6a
87443458
CASTING
Relief Assembly, 7 Shank
1шт.
Does Not Disassemble
1шт.
6b
09900085
SPRING BOX
Relief Assembly, 5 Shank
1шт.
Does Not Disassemble
1шт.
7
84401366
LINKAGE
Lift Link
1шт.
8
20092310
CLEVIS
Combo
1шт.
9
32230000
JACK
5000 lb
1шт.
10
09984470
TUBE,96.75" Length
Torque Tube
1шт.
11
09967141
WEDGE
Torque Tube
1шт.
12
30026030
TUBE
Manual Canister
1шт.
14
214-1452
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
1шт.
15
NSS
NOT SOLD SEPARAT
16.5 x 16.1, 14 Ply, Tubeless Assembly, 5 Shank, Silver, 10014270
2шт.
15
NSS
NOT SOLD SEPARAT
16.5 x 16.1, 14 Ply, Tube Assembly, 5 Shank, Silver, 10014269
2шт.
15
NSS
NOT SOLD SEPARAT
16.5 x 16.1, FI (LR "E")Tubeless Assembly, 7 Shank, Silver, 87330635
2шт.
15
NSS
NOT SOLD SEPARAT
16.5 x 16.1, FI (LR "E") Tube Assembly, 7 Shank, Silver, 87330638
2шт.
15
10016226
LAND WHEEL
425/65R x 22.5 Tire & Wheel Assembly, Option, Silver
2шт.
16
10114269
LAND WHEEL
14 x 16.1, 8 Hole, Silver, 5 Shank, Standard Equipment
2шт.
16
10113223
LAND WHEEL
13.00 x 22.5, 8 Bolt, Silver, Option
2шт.
17
NSS
NOT SOLD SEPARAT
16.5L x 16.1, 14 Ply Tire, 11016174, 5 Shank
2шт.
17
NSS
NOT SOLD SEPARAT
16.5L x 16.1, FI (LR "E") Ply Tire, 87326812, 7 Shank
2шт.
17
NSS
NOT SOLD SEPARAT
425/65R x 22.5 Tire, 11016221, Option
2шт.
18
NSS
NOT SOLD SEPARAT
16.5 x 16.1 Tube, 11516161
2шт.
22
87461258
MOUNTING PARTS
Lead Shank, Rh
1шт.
22
87461257
MOUNTING PARTS
Lead Shank, Lh
1шт.
23
09576610
LINKAGE
Flat
2шт.
26
87515015
SCRAPER BLADE
Mud Scraper, Lh
1шт.
26
87515016
SCRAPER BLADE
Mud Scraper, Rh
1шт.
27
09983240
BRACKET
Mounting Flat
2шт.
29
87393082
CHAIN
20,200 lb, ASE Safety
1шт.
29
87389757
CHAIN
30,400 lb, ASE, Safety
1шт.
31
413-1448
BOLT,Hex, 7/8" - 9 x 3", Gr 5
10шт.
32
16901025
CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5
5/8 x 7-1/2, NC, Hex
2шт.
33
413-740
BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5
1шт.
34
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
35
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
37
80299
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
5/8 Standard
4шт.
38
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4, Machine
1шт.
40
17627010
WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk
1-5/8 x 14 ga
4шт.
41
09967531
BRACKET
Klik Pin
1шт.
42
425-1014
NUT,7/8"-9, G5
14шт.
43
425-1414
JAM NUT,Jam, 7/8"-9, G5
6шт.
44
86992214
LOCK NUT
7/16, NC, Stover
1шт.
45
425-106
NUT,3/8"-16, Cl 5
4шт.
46
425-1010
NUT,5/8"-11, G5
6шт.
47
85700693
NUT,5/8" - 11, Gr C
2шт.
48
425-1012
NUT,3/4"-10, G5
12шт.
50
44006200
BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L
5/8, Special, H.T.
4шт.
51
14816201
SMALL PIN
1 Dia x 2-3/32, EL
2шт.
52
14892066
PIN
1-1/4 Dia x 8-1/2
1шт.
53
14820520
HITCH PIN
1-5/8
1шт.
54
09983475
BAR ASSY.
Pin
2шт.
55
D33805
PIN
Klik
1шт.
56
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8 Dia x 3-1/8, Clevis
1шт.
57
14720411
COTTER PIN
PIN, COTTER 1/8 x 2, Hair
1шт.
58
432-1624
COTTER PIN,1/4" x 1 1/2"
2шт.
59
219-86
LUBE NIPPLE,1/8" NPTF
Straight
9шт.
61
18534228
DECAL
Caution
1шт.
62
18534262
DECAL
Level Frame
1шт.
63
18534140
WARNING DECAL
Warning
1шт.
66
18534240
DECAL
Red/Green
1шт.
67
18534241
DECAL
Information
1шт.
68
87380868
DECAL
Case IH, Lh, Red, 7 Shank, Serial Range: -JFH0033978
1шт.
68
87380870
DECAL
Case IH, Rh, Red, 7 Shank, Serial Range: -JFH0033978
1шт.
68
87380867
DECAL
Case IH, Rh, Red, 5 Shank, Serial Range: -JFH0033978
1шт.
68
87380866
DECAL
Case IH, Lh, Red, 5 Shank, Serial Range: -JFH0033978
1шт.
68
87594306
DECAL
Case IH, Lh, Red 7 Shank, Shown, Start Serial: JFH0033979
1шт.
68
87594307
DECAL
Case IH, Rh, Red 7 Shank, Start Serial: JFH0033979
1шт.
68
87594300
DECAL
Case IH, Lh, Red 5 Shank, Start Serial: JFH0033979
1шт.
68
87594305
DECAL
Case IH, Rh, Red 5 Shank, Start Serial: JFH0033979
1шт.
69
18534258
DECAL
Depth Indicator
1шт.
70
87354390
DECAL
Bolt Torque & Tire Inflation
1шт.
70
87354401
DECAL
Bolt Torque & Tire Inflation
1шт.
72
18534164
DECAL
Tire Inflation, 425/65R Tire, Option
2шт.
75
87594280
DECAL
Case Logo
1шт.
76
87444766
PLATE
Serial
1шт.
77
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
4шт.
78
413-12136
BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5
8шт.
79
311864A1
REFLECTOR
Yellow
2шт.
80
18581004
PRODUCT GRAPHIC
SMV, Inc. 81 - 86
1шт.
81
311860A1
EMBLEM
SMV
1шт.
82
09983415
BRACKET
SMV
1шт.
83
86992211
NUT
1/4, NC, Hex
2шт.
84
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
85
86992213
NUT
3/8, NC, Hex
2шт.
86
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
88
04681210
BRACKET
1шт.
89
04681211
BUSHING
1шт.
90
86992219
LOCK NUT
1, NC, Stover
1шт.
91
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1шт.
92
87330629
STUB AXLE/STEERING S
80-8, 7 Shank
2шт.
92
28560803
HUB ASSY.
60-8B, 5 Shank
2шт.
93
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
2шт.
95
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
95
413-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
1шт.
96
18534227
DANGER DECAL
Danger
2шт.
97
18534343
DECAL
Yeild-Till
1шт.
98
18534333
DANGER DECAL
Danger
1шт.
99
06200125
HOSE CLAMP
1шт.
100
18534347
WARNING DECAL
Warning, Towing
1шт.
101
18534277
DECAL
Warning
2шт.
102
18532035
DECAL
Tiger
2шт.
103
NA
NOT SERVICED
Case IH, Rear, 87694280, Start Serial: JFH0033979
2шт.
Выбрано товаров: 123
