Запчасти Case IH 730C (35.100.05) - DISC LEVELER HYDRAULIC CYLINDERS (08) - HYDRAULICS

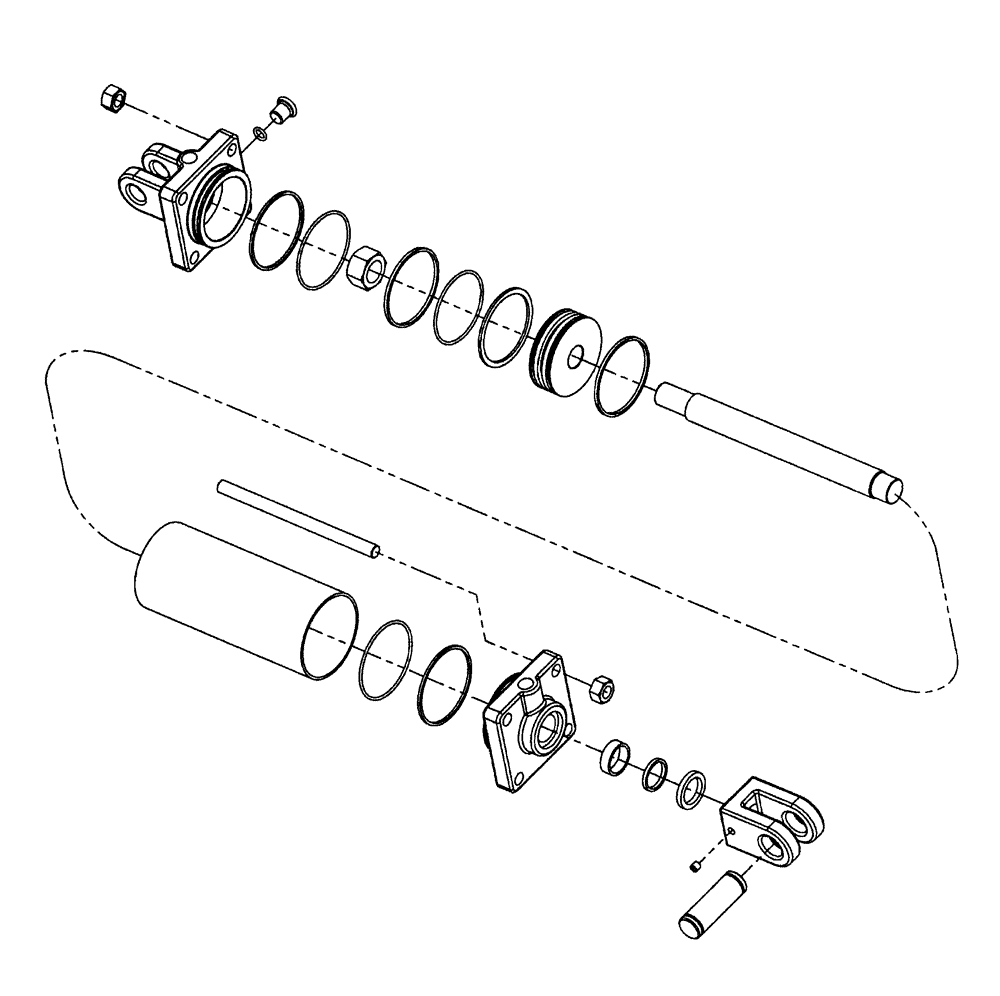

Схема запчастей Case IH 730C - (35.100.05) - DISC LEVELER HYDRAULIC CYLINDERS (08) - HYDRAULICS
1

Артикул

Название

Примечание

Количество

1

25330083

CYLINDER ASSY.

3 x 8, 20-1/4 Closed, 3000 PSI, Main Lift

1шт.

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10, 20-1/4 Closed, 3000 PSI, Wing Lift

1шт.

1

25330101R

REMAN-HYD CYLINDER

530C, 730C, Both CASE IH ECOLO-TIGER®, 3000 PSI, Wing Lift

1шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

Seal, 1-1/4 Dia, 3 Rod, Main Lift And Wing Lift

1шт.

3

25890100

KIT

1 Dia., Bag, Main Lift And Wing Lift

1шт.

4

09102959

HYD TUBE,1.27" ID, 2" OD, 6.5" Length

Stroke Control, Main Lift Only

1шт.

Выбрано товаров: 7
