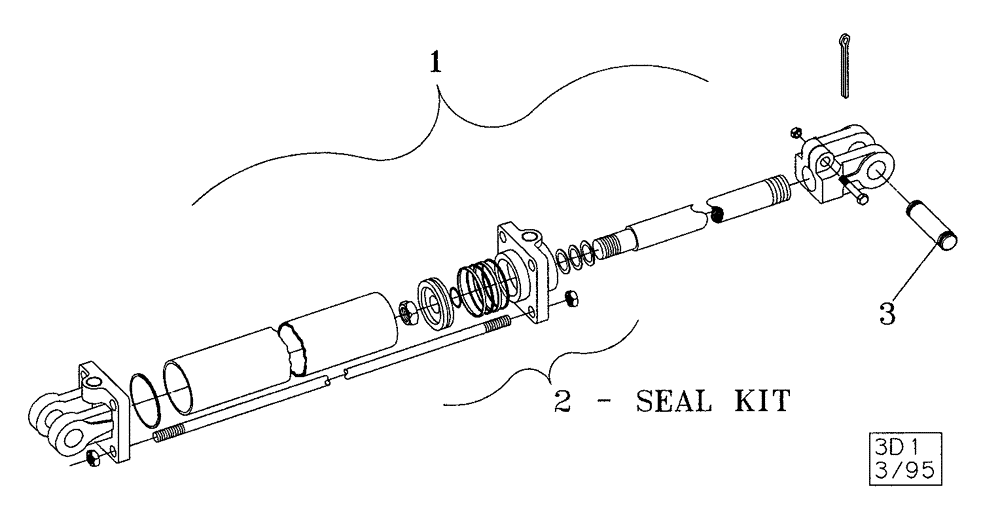

Запчасти Case IH 730B (35.100.06) - DISC LEVELER HYDRAULIC CYLINDERS (08) - HYDRAULICS

1

25330083

CYLINDER ASSY.

3" x 8", Hydraulic-SAE Ports (20-1/4" Closed), 3000 PSI, Main Lift

1шт.

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10", SAE Ports (20-1/4" Closed), 3000 PSI, Wing Lift

1шт.

1

25330101R

REMAN-HYD CYLINDER

530B, 730B, Both ECOLO-TIGER MULCH CHISEL, SAE Ports (20-1/4" Closed), 3000 PSI, Wing Lift

1шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

Gasket, 1-1/4" Dia, 3" Rod, Main Lift And Wing Lift

1шт.

3

25890100

KIT

1" Dia., Clevis Pin Bag of Parts, Main Lift And Wing Lift

1шт.

4

09102959

HYD TUBE,1.27" ID, 2" OD, 6.5" Length

Stroke Control, For Main Lift Cylinder Only

1шт.
