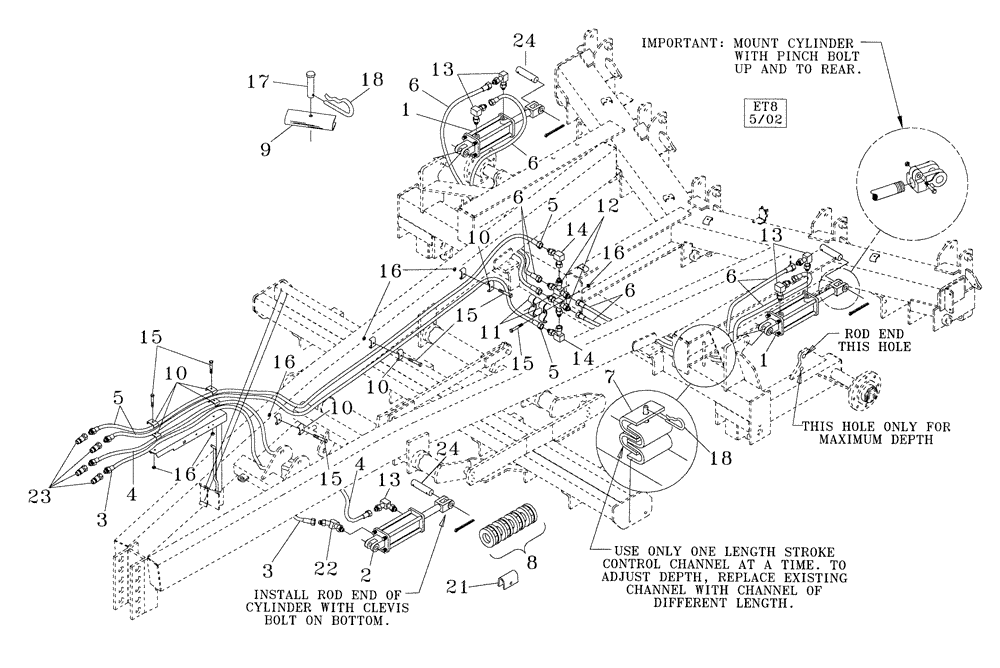

Запчасти Case IH 730B (35.100.02) - MAIN FRAME HYDRAULIC (08) - HYDRAULICS

1

25330121

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 304.8mm Stroke

3" x 12", 3000 PSI, 5 Shank

2шт.

1

25335120

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2" x 12", 3000 PSI, 7 Shank

2шт.

25335120R

REMAN-HYD CYLINDER

530B,730B

2шт.

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

2

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8", 3000 PSI

1шт.

3

25610716

HYDRAULIC HOSE

3/8" x 144"

1шт.

4

25610717

HYDRAULIC HOSE

3/8" x 150"

1шт.

5

25610903

HYDRAULIC HOSE,0.50" ID x 245.00", SAE 100R17

2шт.

6

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

4шт.

7

09900250W

KIT

1-1/4" Rod, Main Lift, Red, 5 Shank

1шт.

7

09900240W

KIT

1-1/2" Rod, Main Lift, Red, 7 Shank

1шт.

7

09900250B

KIT

1-1/4" Rod, Main Lift, Red, 5 Shank, Blue

1шт.

7

09900240B

KIT

1-1/2" Rod, Main Lift, Red, 7 Shank, Blue

1шт.

8

25800010

CYLINDER

1-1/4" Rod, Disc Or Coulter Kit

1шт.

9

09967021

STOP

Cylinder Stop, 11-1/2", Transport

2шт.

10

06200125

HOSE CLAMP

5шт.

11

22530601

HOSE CLAMP

Double

2шт.

12

218-594

TEE,3/4"-16, 37 Degree

Tube, Side Swivel

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

5шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

15

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

NC

7шт.

16

425-106

NUT,3/8"-16, Cl 5

Hex., NC

7шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, Clevis

5шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair, Split

7шт.

18

NSS

NOT SOLD SEPARAT

1/8 x 2, Hair, Split

7шт.

21

09650207

STAY

Cylinder, 4-1/2, Disc

1шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Swivel

1шт.

23

25705041

COUPLING

Male, ISO-3/4, SAEF Hydraulic

4шт.

24

87748424

PIN

Hyd Cylinder

1шт.
