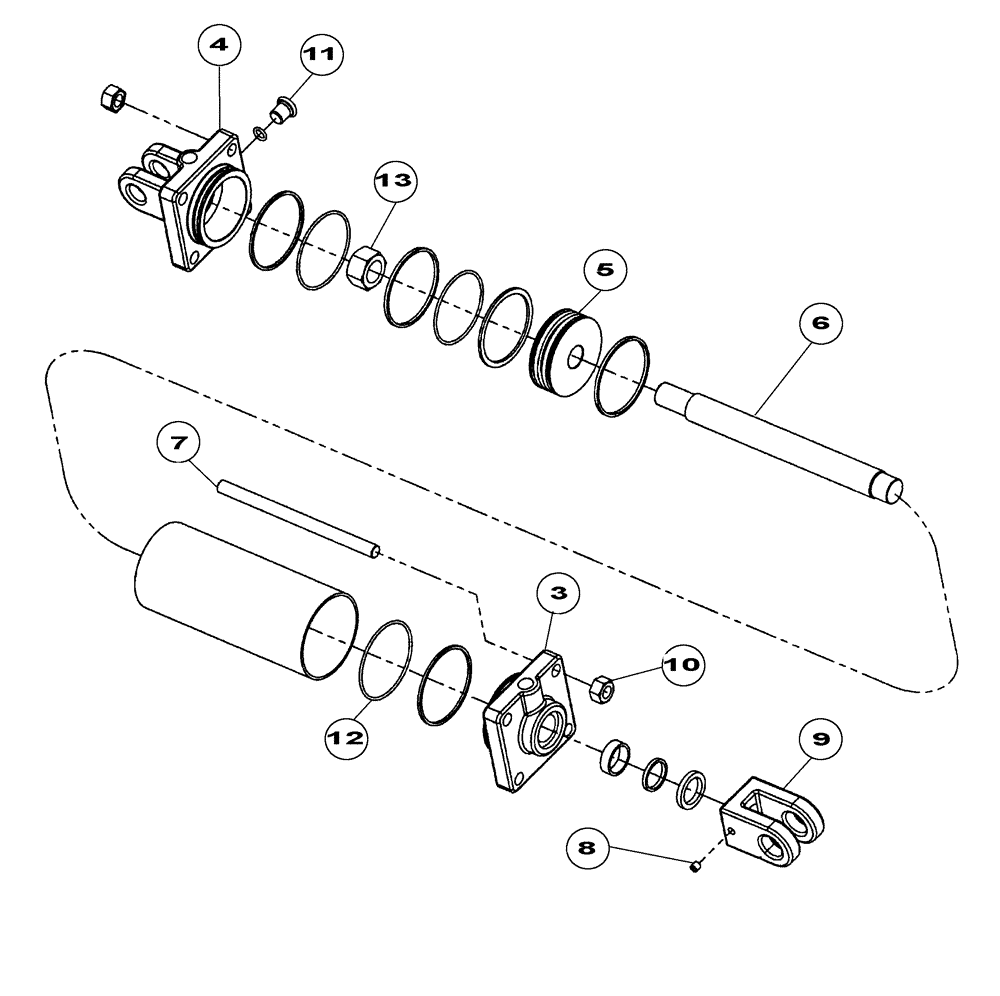

Запчасти Case IH 730B (35.100.01) - HYDRAULIC CYLINDER ASSEMBLY 3000 PSI (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
25330160
HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke
3 x 16, Disc Wings, SAE Ports, 20-1/4 Closed
1шт.
1
25330160R
REMAN-HYD CYLINDER
530B, 730B, Both ECOLO-TIGER MULCH CHISEL, 3000 PSI, 3 x 16, Disc Wings, SAE Ports, 20-1/4 Closed
1шт.
1
25330160C
CORE-HYD CYLINDER
Return Number
1шт.
1
25330081
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke
3 x 8, Coulter Lift, SAE Ports, 20-1/4 Closed
1шт.
1
25330121
CYLINDER ASSY.,Double Acting, 31.75mm Rod, 304.8mm Stroke
3 x 12, SAE Ports, 22-1/4 Closed
1шт.
1
25335120
HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke
3-1/2 x 12, SAE Ports, 22-1/4 Closed
1шт.
25335120R
REMAN-HYD CYLINDER
530B,730B
1шт.
25335120C
CORE-HYD CYLINDER
Return Number
1шт.
2
25833007
SEAL KIT
1-1/4, Dia, Rod 3, 3 x 8
1шт.
Used on Disc Wings, Coulter Lift, & 5 Shank Main Lift
1шт.
2
25833527
SEAL KIT
1-1/2, Dia, Rod 3-1/2
1шт.
Used on 7 Shank Main Lift
1шт.
2
25803500
SEAL KIT
3-1/2 x 12
1шт.
2
9660V2
SEAL KIT
3 x 16
1шт.
3
87409417
HEAD
3-1/2 x 12
1шт.
3
8952
CYLINDER END CAP
3 x 16
1шт.
3
87582273
CYLINDER END CAP
3 x 8
1шт.
4
87409430
HEAD
3-1/2 x 12
1шт.
4
87409445
HEAD
3 x 16
1шт.
4
84220841
CLEVIS
3 x 8
1шт.
5
87409481
PISTON
3-1/2 x 12
1шт.
5
87635232
PISTON
3 x 16, 3 x 8
1шт.
6
84220844
PISTON ROD
3-1/2 x 12
1шт.
6
87548067
SHAFT
3 x 16
1шт.
6
9682
SHAFT
3 x 8
1шт.
7
87548070
TIE-ROD
3-1/2 x 12
1шт.
7
87577798
THREADED TIE-ROD
3 x 16
1шт.
7
87409688
TIE-ROD
3 x 8
1шт.
8
84212867
SET SCREW
All Cylinders
1шт.
9
87409391
CLEVIS,1 -1/2" - 12
3-1/2 x 12
1шт.
9
87409387
CLEVIS,1 -1/4" - 12
3 x 8
1шт.
10
408
NUT,5/8" - 18, Gr 5
3-1/2 x 12, 3 x 16
1шт.
10
280963
NUT,Nut, 1/2-20 GR 5 ZND
3 x 8
1шт.
11
86590562
PLUG,Hex Soc, 3/4" - 16 ORB
3-1/2 x 12, 3 x 16, 3 x 8
1шт.
13
87314800
LOCK NUT
3-1/2 x 12, 3 x 16, 3 x 8
1шт.
Выбрано товаров: 36
