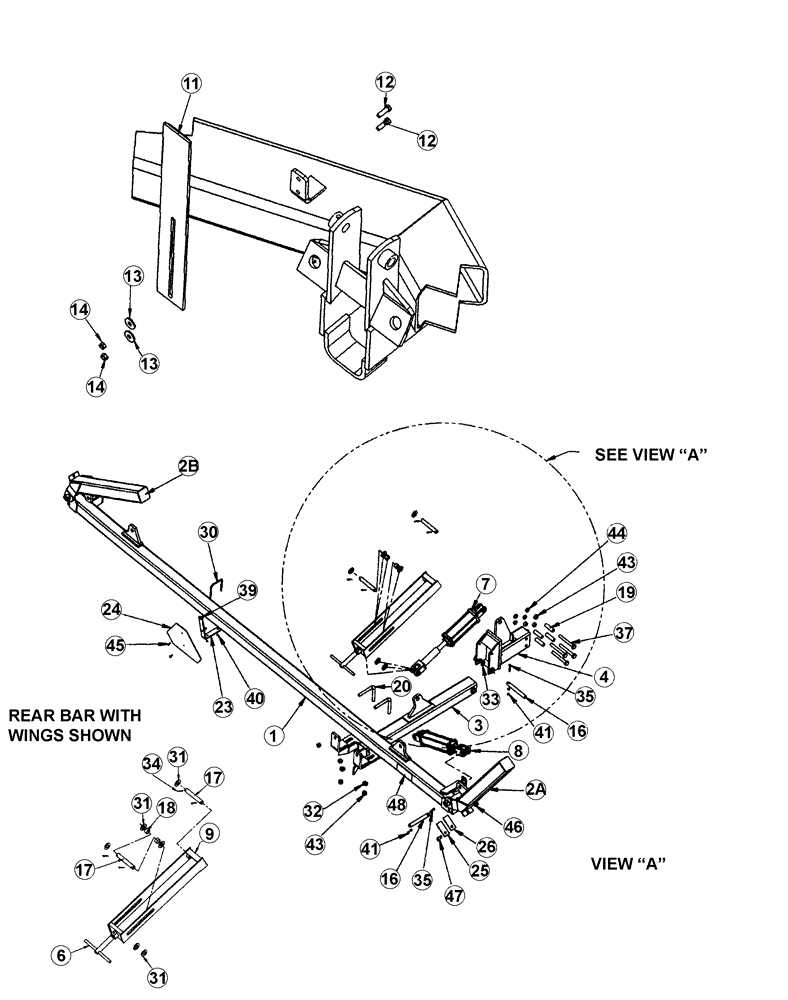

Запчасти Case IH 730B (75.200.09) - HYDRAULIC LEVELER BAR (09) - CHASSIS/ATTACHMENTS

1

09102400

BAR ASSY.

Rear Leveler, 19-1/2" Long, 5 Shank

1шт.

1

09102540

BAR ASSY.

Hydraulic Fold Leveler, 7 Shank

1шт.

2a

09102620

BAR ASSY.

Hydraulic Leveler Wing, RH

1шт.

Used With 09102540 Fold Bar Only

1шт.

2b

09102630

BAR ASSY.

Hydraulic Leveler Wing, LH

1шт.

Used With 09102540 Fold Bar Only

1шт.

3

09102985

ARM ASSY.

Pivot Weld

2шт.

4

09102910

ARM

Support

2шт.

6

429723A1

SCREW

Assembly

1шт.

7

25330083

CYLINDER ASSY.

3" x 8", Main Lift Hyd., 3000 PSI (See Figure 35.100.06)

2шт.

8

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10", Wing Lift, 3000 PSI (See Figure 35.100.06)

2шт.

8

25330101R

REMAN-HYD CYLINDER

530B, 730B, Both ECOLO-TIGER MULCH CHISEL, Wing Lift, 3000 PSI

2шт.

8

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

9

429720A1

STOP

Cylinder

2шт.

10

09102939

BRACKET

Formed (Not Shown)

1шт.

11

09102450

INDICATOR

Leveler Depth Pointer

1шт.

12

09102943

ARM

3/8" x 1" Hex Bolt, Depth Gauge

2шт.

13

09102941

GAUGE ASSY.

3/8" Standared Washer, Depth

1шт.

14

09102958

PLATE

3/8" NC Stover Lock Nut ZP

2шт.

15

24312000

COIL SPRING

Extension (Not Shown)

2шт.

16

14891665

HITCH PIN

1" Dia.

4шт.

17

14891663

HITCH PIN

1" x 6" Long

4шт.

18

09102904

SPACER

4шт.

19

09102914

SPACER

8шт.

20

16512470

SPECIAL BOLT

3/4" x 5.69", L

4шт.

23

09102965

BRACKET

SMV

1шт.

24

311860A1

EMBLEM

SMV

1шт.

25

09661455

SHIM

16 Ga.

1шт.

26

09661456

SHIM

11 Ga.

1шт.

30

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4"

1шт.

31

495-11106

WASHER,1", SAE

12шт.

32

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4" ID, Heat Treated

4шт.

33

17616020

WASHER

1" x 14 Ga., Machinery

1шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

Split

8шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

NC, ZP

2шт.

36

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

NC (Not Shown)

4шт.

37

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

NC

8шт.

38

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

NC (Not Shown)

8шт.

39

86992211

NUT

1/4", NC, Stover

2шт.

40

231-4246

LOCK NUT,3/8"-16, GB

NC, Hex.

2шт.

41

425-106

NUT,3/8"-16, Cl 5

NC, Hex.

12шт.

42

425-108

NUT,1/2" - 13, Gr 5

NC, Hex. (Not Shown)

4шт.

43

425-1012

NUT,3/4"-10, G5

NC, Hex.

16шт.

44

425-1412

JAM NUT,Jam, 3/4"-10, G5

NC, Hex.

8шт.

45

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

46

231-42410

LOCK NUT,5/8"-11, GB

NC

2шт.

47

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

NC

2шт.

48

18534227

DANGER DECAL

1шт.
