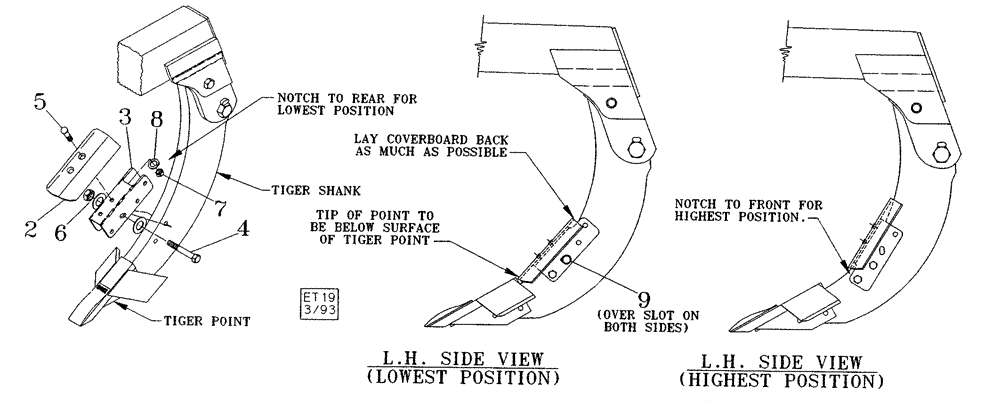

Запчасти Case IH 730B (75.200.08) - 4 COVERING ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

09990040

MOLDBOARD

Covering Kit Complete, 4"

1шт.

2

33310076

LANDSIDE

4", With Hardware

1шт.

3

09965000

BRACKET

1шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

2шт.

5

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

NC

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NC, Hex.

2шт.

7

425-107

NUT,7/16"-14, G5

NC, Hex.

2шт.

8

492-11044

LOCK WASHER,7/16"

2шт.

9

495-21056

WASHER,1/2"

Flat

2шт.
