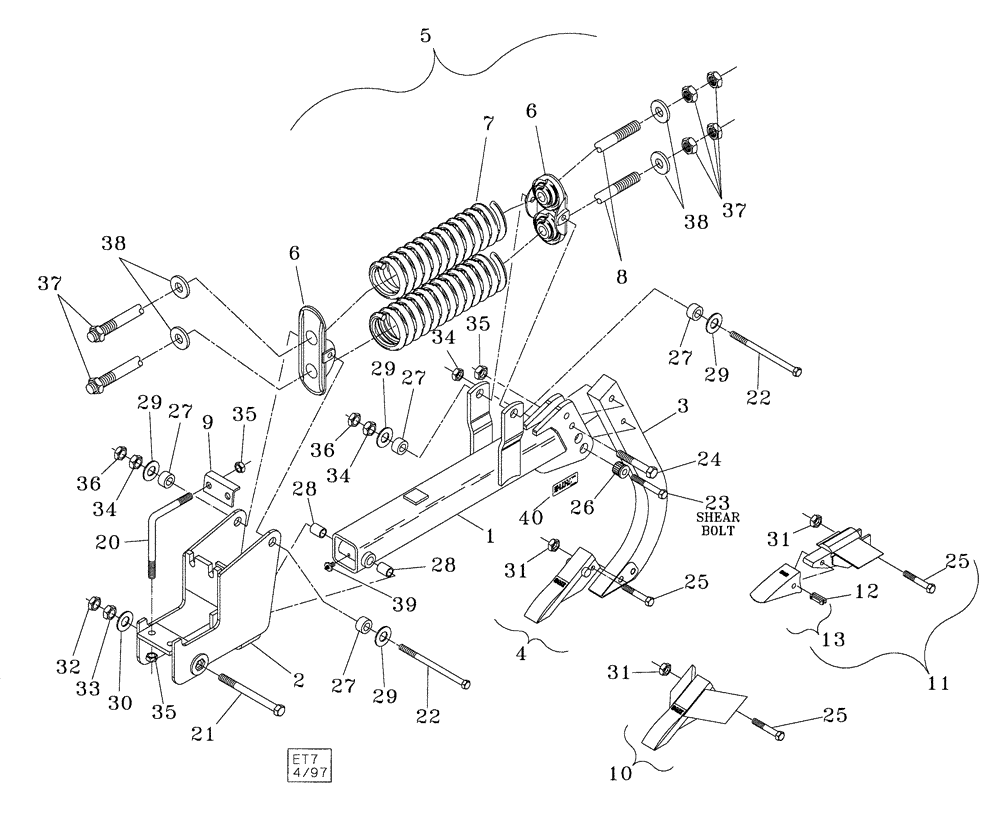

Запчасти Case IH 730B (75.200.06) - LEAD SHANK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09984810

BAR ASSY.

Lead Shank

1шт.

2

09984820

SHANK

Mount

1шт.

3

33010010

SHANK

Heat Treated

1шт.

4

09729000

POINT

Parabolic Assembly, 2"

1шт.

Does Not Include Hardware

1шт.

5

09984815

SPRING

Assembly

1шт.

6

20090133

HINGE

Double, Casting

2шт.

7

24162506

SPRING

Compression

2шт.

8

16510720

ROD

Threaded, 5/8"

2шт.

9

09561200

PLATE

1шт.

10

09729001

POINT

Tiger, 5"

1шт.

Does Not Include Hardware

1шт.

10

09729002

POINT

Tiger, 7"

1шт.

Does Not Include Hardware

1шт.

11

09729004

FROG, SADDLE FROG

Replaceable Tip Tiger, 7"

1шт.

Does Not Include Hardware

1шт.

11

87412311

TIP

Replaceable, Tiger, 7"

1шт.

12

245466A1

RETAINER,Flexpin, Bucket Tooth

Split / Safety, 3/8", Flex

1шт.

13

87412311

TIP

Replaceable

1шт.

13

09907015

TIP

Replaceable

1шт.

14

09900012

SHANK

Complete Lead, Less Point

1шт.

Contains Entire Assembly Ready With Mount, Less Point

1шт.

20

16512480

SPECIAL BOLT

3/4", NC x 7-9/16", Square

2шт.

21

16901435

BOLT

7/8" x 7-3/4", NC, Hex., Gd. 5

1шт.

22

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2", NC, Hex., Gd. 5

2шт.

23

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

NC, Shear

1шт.

24

16901215

BOLT

3/4" x 3-3/4", NC, A325

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

NC

1шт.

26

44006511

BUSHING

Large, Serrated, Painted, 5/8"

4шт.

27

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T., Painted

2шт.

28

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

7/8", ID, Hardened

2шт.

29

495-21069

WASHER,5/8"

Standard

4шт.

30

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8", ID

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

NC, Hex.

1шт.

32

425-1414

JAM NUT,Jam, 7/8"-9, G5

NC

1шт.

33

425-1014

NUT,7/8"-9, G5

NC, Hex.

1шт.

34

425-1010

NUT,5/8"-11, G5

NC, Hex.

3шт.

35

425-1012

NUT,3/4"-10, G5

NC, Hex.

5шт.

36

425-1410

JAM NUT,Jam, 5/8"-11, G5

NC

2шт.

37

25-1010

NUT,5/8"-11, G5

NC, Hex.

6шт.

38

495-81028

WASHER,21/32" x 1 1/2" x .240"

5/8" x 1/4", Thick

4шт.

38

17411012

WASHER

5/8" x 1/4", Thick

4шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Self-Tapping

1шт.

40

18534233

DECAL

Shear Bolt

1шт.
