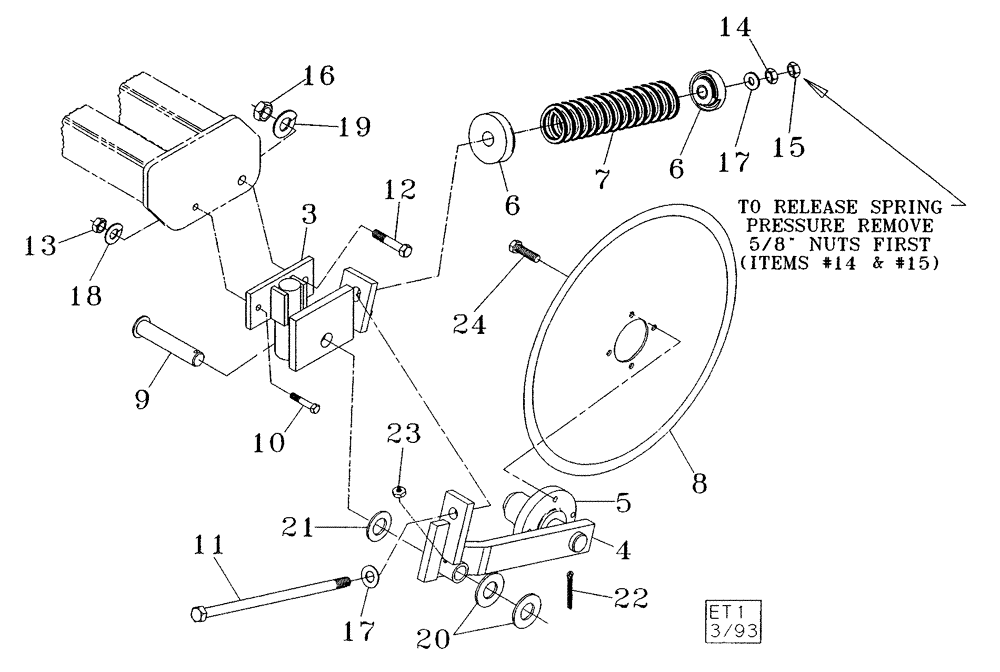

Запчасти Case IH 730B (75.200.05) - SPRING COULTER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09574000

COULTER

With Blade

1шт.

2

09574100

DISC

Coulter Assembly Less Blade & Mounting Hardware

1шт.

3

09574230

PIVOT ASSY.

Coulter

1шт.

4

04642030

POWER ARM

Coulter With Hub

1шт.

5

28163311

HUB ASSY.

633, 4-Bolt

1шт.

6

20090050

HOLDER

Spring, Casting

2шт.

7

24156205

COIL SPRING

Compression

1шт.

8

443638A1

PLOW DISC

Blade, 24"

1шт.

9

14820570

PIVOT PIN

1шт.

10

424-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 2

1шт.

11

413-10216

BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5

NC

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

NC

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

NC

1шт.

14

425-1010

NUT,5/8"-11, G5

NC, Heavy

1шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

NC

1шт.

16

425-1012

NUT,3/4"-10, G5

NC, Hex.

1шт.

17

495-81028

WASHER,21/32" x 1 1/2" x .240"

5/8", Heavy

2шт.

17

17411012

WASHER

5/8", Heavy

2шт.

18

492-11050

LOCK WASHER,1/2"

1шт.

19

492-11075

LOCK WASHER,3/4"

1шт.

20

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4", Machine, 14 Ga.

2шт.

21

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", Machine, 10 Ga.

1шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

Split

1шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Grease

1шт.

24

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

NF

4шт.
