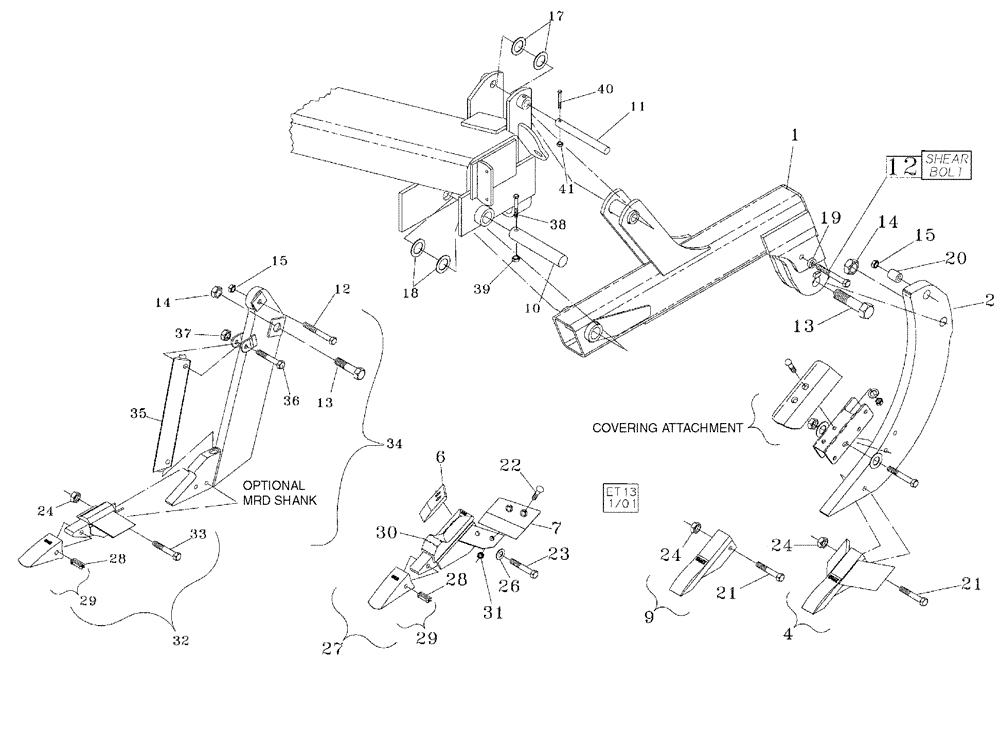

Запчасти Case IH 730B (75.200.02) - SHEAR BOLT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09967360

BEAM ASSY.

Shear Bolt, Start Serial: JFH0005894

1шт.

1

09984720

BEAM ASSY.

Shear Bolt, Serial Range: -JFH003286

1шт.

2

09983476

SHANK

Hard Surfaced, Inc. 20

1шт.

4

87460074

POINT RIPPER SHANK

7", Tiger Assembly

1шт.

4

09907000

POINT

10", Tiger Assembly

1шт.

4

09907070

PLOW

10", Tiger Assembly

1шт.

6

09907002

FRAME

RH, Wing, Inc. 22 & 24

1шт.

7

09907003

FRAME

LH, Wing, Inc. 22 & 24

1шт.

9

09832000

CHISEL

2", Straight Assembly

1шт.

10

14892671

SPECIAL PIN,41.27mm OD x 230.12mm L

1-5/8", Start Serial: JFH0005894

1шт.

10

16902045

CAPSCREW,Hex, 1 1/4" - 7 x 7", Gr 5

1-1/4" x 7", NC, Hex., Serial Range: -JFH003286

1шт.

11

14891665

HITCH PIN

1.00", Start Serial: JFH0005894

1шт.

11

16902055

CAPSCREW,Hex, 1 1/4" - 7 x 7 3/4", Gr 5

1-1/4" x 7-3/4", NC, Hex., Serial Range: -JFH003286

1шт.

12

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

13

16902016

BOLT

1-1/4" x 4", NC, Hex., Gd. 5

1шт.

14

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

NC

1шт.

15

86992216

NUT

5/8", NC, Stover

1шт.

16

425-1020

NUT,1 1/4"-7, G5

NC, Hex., Not Shown, Serial Range: -JFH003286

2шт.

17

17616020

WASHER

1", Machine, Start Serial: JFH0005894

2шт.

17

495-81237

WASHER,1 17/64" x 1 7/8" x 048"

1-1/4", Machine, Serial Range: -JFH003286

2шт.

18

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", Machine, 10 Ga.

2шт.

19

44006520

BUSHING

1-5/16", Large

2шт.

20

44006530

BUSHING

1-1/2", Large

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

22

16208065

PLOW BOLT

1/2" x 1-1/2", NC

4шт.

23

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

NC

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NC, Hex.

1шт.

25

425-168

NUT,1/2"-13, G5, Hvy

Hex

1шт.

26

495-21056

WASHER,1/2"

Standard

1шт.

27

09907010

POINT

Replaceable Tip Tiger

1шт.

28

245466A1

RETAINER,Flexpin, Bucket Tooth

Split / Safety, 3/8", Flex

1шт.

29

87412311

TIP

Replaceable, Inc. 28

1шт.

30

09907011

TIP

Replacable Base, Inc. 23 & 25 - 26

1шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Lock

4шт.

32

09729004

FROG, SADDLE FROG

7", Replacable Tip Point Assembly

1шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

NC

1шт.

34

09983485

SHANK

MRD Assembly, Inc. 35 - 37

1шт.

35

09581761

BAR ASSY.

MRD Shin

1шт.

36

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

1шт.

37

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

NC

1шт.

39

86992213

NUT

3/8", NC, Stover

1шт.

40

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

NC

1шт.

41

86992215

LOCK NUT,1/2"-13, GC

Stover, NC

1шт.
