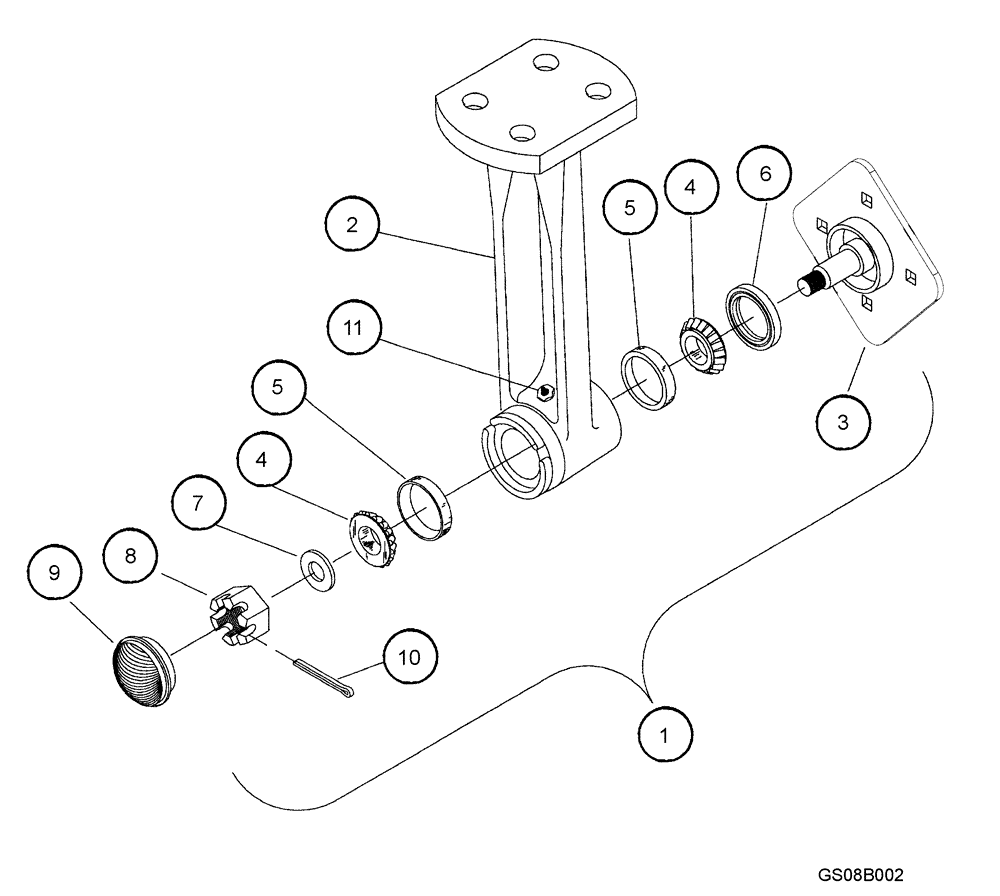

Запчасти Case IH 730B (44.100.02) - DISC LEVELER HUB AND SPINDLE (09) - CHASSIS/ATTACHMENTS

1

09103101

HUB

Spindle Mount Assembly Complete

1шт.

2

09193150

HUB ASSY.

Disc Spindle Casting With Bearing Cups

1шт.

3

09103120

DISC

Spindle

1шт.

4

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00" Bore, L44643

2шт.

5

572564R1

BEARING CUP

1.980" OD, L44610

2шт.

6

21931375

SEAL

1.375" Bore, CR533468

1шт.

7

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4", Flat, Heat Treated

1шт.

8

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

9

28420021

CAP

Grease

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

Split

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NPT, Grease Zerk

1шт.
