Запчасти Case IH 730B (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

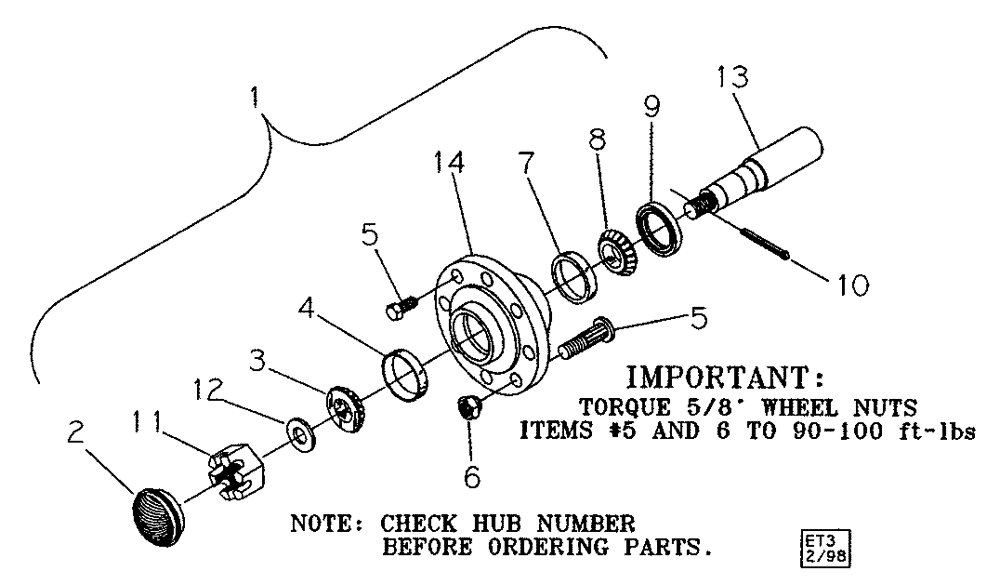

Схема запчастей Case IH 730B - (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS
1
13
11
8
14
7
6
2
10
5
3
4
9
12
5

Артикул

Название

Примечание

Количество

1

28163311

HUB ASSY.

633, 4-Bolt, Inc. 2 - 9, Coulter

1шт.

1

28150800

HUB ASSY.

50-8, 8-Bolt, Inc. 2 - 9, 5 Shank Transport

1шт.

1

28660800

HUB ASSY.

60-8, 8-Bolt, Inc. 2 - 9, 7 Shank Transport

1шт.

2

28463300

HUB CAP

Coulter

1шт.

2

48068808

CAP

5 & 7 Shank, Transport

1шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

75, Bore, Timken LM11949, Coulter

1шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62, Bore, Timken LM501349, 5 & 7 Shank Transport

1шт.

4

651814R1

BEARING CUP

1.78, OD, Timken LM11910, Coulter

1шт.

4

663558R1

BEARING CUP

2.89, OD, Timken LM501310, 5 & 7 Shank Transport

1шт.

5

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

NF, Coulter

4шт.

5

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8 x 2-1/4, NF, Wheel, 5 & 7 Shank Transport

8шт.

5

16410087

STUD

5/8 x 2-1/4, NF, Wheel, 5 & 7 Shank Transport

8шт.

6

554480R1

WHEEL NUT

5/8, NF, Wheel, 5 & 7 Shank Transport

8шт.

7

651817R1

BEARING CUP

2.33, OD, Timken LM67010, Coulter

1шт.

7

376463C1

BEARING CUP

3.22, OD, Timken JLM104910, 5 Shank Transport

1шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.54, OD, Timken JLM506810, 7 Shank Transport

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Bore, Timken LM67048, Coulter

1шт.

8

21872005

ROLLER BEARING,50 mm ID

2.00, Bore, Timken LM104948, 5 Shank Transport

1шт.

8

3216619R91

TAPERED BEARING,55mm ID x 26mm W

2.165, Bore, Timken JLM506848, 7 Shank Transport

1шт.

9

126621C1

SEAL

1.50, ID x 2.33, OD, CR14975, Coulter

1шт.

9

21932502

SEAL

2.50, ID x 3.25, OD, Special Material, 5 Shank Transport

1шт.

9

21932750

SEAL

2.75, ID x 3.75, OD, CR531108, 7 Shank Transport

1шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

Split, Coulter

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

Split, 5 & 7 Shank Transport

1шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

NF, Coulter

1шт.

11

425-1316

NUT,1"-14, G5

NF, 5 & 7 Shank Transport

1шт.

12

17413001

WASHER

3/4, Special, Heavy, Coulter

1шт.

12

17916100

WASHER

1, Dia, Heavy, 5 & 7 Shank Transport

1шт.

13

28363331

SPINDLE

Coulter

1шт.

13

28350811

SPINDLE

5 Shank Transport

1шт.

13

28860803

SPINDLE

7 Shank Transport

1шт.

14

28263340

HUB

633, With Cups, Coulter

1шт.

14

28250800

HUB ASSY.

50-8, With Cups, 5 Shank Transport

1шт.

14

28760800

HUB ASSY.

60-8, With Cups, 7 Shank Transport

1шт.

15

28063331

HUB ASSY.

633, Coulter

1шт.

15

28050891

HUB ASSY.

50-8, 5 Shank Transport

1шт.

15

28560803

HUB ASSY.

60-8, 7 Shank Transport

1шт.

Выбрано товаров: 38
