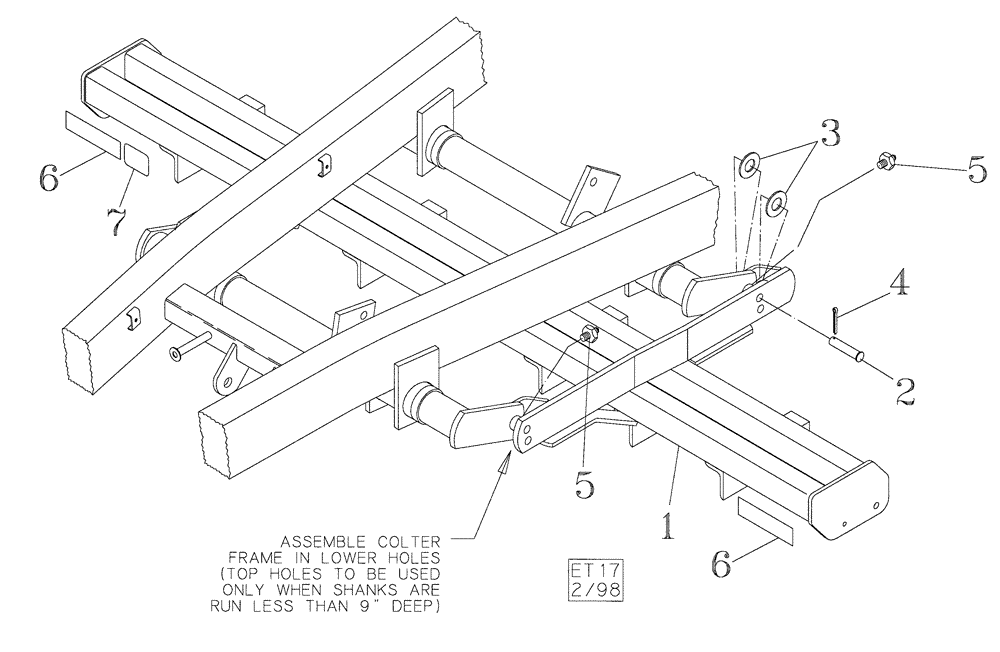

Запчасти Case IH 730B (39.100.03) - COULTER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

87409710

BAR ASSY.

5 Shank, Coulter, Red

1шт.

1

09984110B

BAR ASSY.

5 Shank, Coulter, Blue

1шт.

1

87409713

BAR ASSY.

7 Shank, Coulter, Red

1шт.

1

09984210B

FRAME ASSY

7 Shank, Coulter, Red

1шт.

2

14816382

SMALL PIN

1 x 3-3/4, Clevis

4шт.

3

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1, Machine

1шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

Split

4шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

Self Tapping, NPT

4шт.

6

311864A1

REFLECTOR

Yellow

1шт.

7

18534261

DECAL

DMI Logo

1шт.
