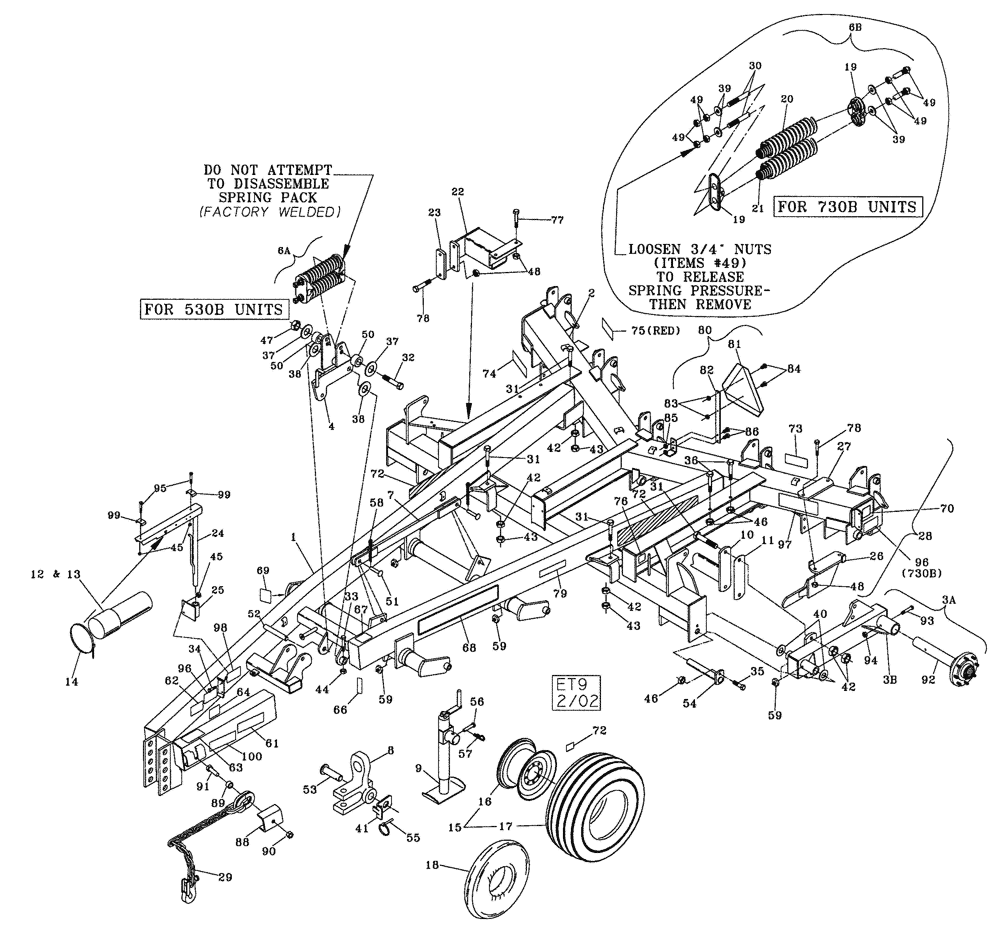

Запчасти Case IH 730B (39.100.01) - MAIN FRAME ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87409701

BAR ASSY.

Pull, 530B, Red

1шт.

1

87409704

BAR ASSY.

Pull, 730B, Red

1шт.

1

09983640B

BAR ASSY.

Pull, 730B, Blue

1шт.

1

09983640B

BAR ASSY.

Pull, 530B, Blue

1шт.

1

09983650B

BAR ASSY.

Pull, 730B, Blue

1шт.

2

87459956

FRAME

Main, 530B, Red

1шт.

2

87459953

FRAME

Main, 730B, Red

1шт.

2

09983420B

BAR ASSY.

Main, 530B, Blue

1шт.

2

09983400B

BAR ASSY.

Main, 730B, Blue

1шт.

3a

09984590

BAR ASSY.

Spindle Arm With Hub, LH, 530B

1шт.

2

87409696

BAR ASSY.

Main, 530B, Red

1шт.

3a

09984595

BAR ASSY.

Spindle Arm With Hub, RH, 530B

1шт.

2

87409699

BAR ASSY.

Main, 730B, Red

1шт.

3a

09984510

BAR ASSY.

Spindle Arm With Hub, LH, 730B

1шт.

3a

09984530

BAR ASSY.

Spindle Arm With Hub, RH, 730B

1шт.

3b

09984593

BAR ASSY.

Spindle Arm Without Hub, LH, 530B

1шт.

3b

09984597

BAR ASSY.

Spindle Arm Without Hub, RH, 530B

1шт.

3b

09984512

BAR ASSY.

Spindle Arm Without Hub, LH, 730B

1шт.

3b

09984531

BAR ASSY.

Spindle Arm Without Hub, RH, 730B

1шт.

4

09983951

BAR ASSY.

Cylinder Link

1шт.

6a

09900084

SPRING BOX

Relief Assembly, 530B

1шт.

Does Not Include Hardware

1шт.

6b

09900085

SPRING BOX

Relief Assembly, 730B

1шт.

Does Not Include Hardware

1шт.

7

84401369

LINKAGE

Lift Link

1шт.

8

20092310

CLEVIS

Combo

1шт.

9

32230000

JACK

5000 lb

1шт.

10

09984470

TUBE,96.75" Length

Torque Tube

1шт.

11

09967141

WEDGE

Torque Tube

1шт.

12

30026030

TUBE

Manual Canister

1шт.

14

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Worm Gear

1шт.

15

10014272

LAND WHEEL

16.5 x 16.1, 10 Ply, Tubeless Assembly, 530B, Silver

2шт.

15

10014271

LAND WHEEL

16.5 x 16.1, 10 Ply, Tube Assembly, 530B, Silver

2шт.

15

10014270

LAND WHEEL

16.5 x 16.1, 14 Ply, Tubeless Assembly, 730B, Silver

2шт.

15

10014269

LAND WHEEL

16.5 x 16.1, 14 Ply, Tube Assembly, 730B, Silver

2шт.

15

10014172

LAND WHEEL

16.5 x 16.1, 10 Ply, Tubeless Assembly, 530B, White

2шт.

15

10014171

LAND WHEEL

16.5 x 16.1, 10 Ply, Tube Assembly, 530B, White

2шт.

15

10014170

LAND WHEEL

16.5 x 16.1, 14 Ply, Tubeless Assembly, 730B, White

2шт.

15

10014169

LAND WHEEL

16.5 x 16.1, 14 Ply, Tube Assembly, 730B, White

2шт.

15

10016226

LAND WHEEL

425/65R x 22.5, Option, Silver

2шт.

15

10016222

LAND WHEEL

425/65R x 22.5, Option, White

2шт.

16

10113223

LAND WHEEL

13.00 x 22.5, 8 Bolt, Silver, Option

2шт.

16

10113222

LAND WHEEL

13.00 x 22.5, 8 Bolt, White, Option

2шт.

16

10114269

LAND WHEEL

14 x 16.1, 8 Hole, Silver

2шт.

16

10114169

LAND WHEEL

14 x 16.1, 8 Hole, White

2шт.

17

NSS

NOT SOLD SEPARAT

16.5L x 16.1, 10 Ply, 11016170, 530B

2шт.

17

NSS

NOT SOLD SEPARAT

16.5L x 16.1, 14 Ply, 11016174, 730B

2шт.

17

NSS

NOT SOLD SEPARAT

425/65R x 22.5, 11016221, Option

2шт.

18

NSS

NOT SOLD SEPARAT

16.5 x 16.1, 11516161

2шт.

19

20090133

HINGE

Double Casting, 730B Only

2шт.

20

24162506

SPRING

Compression, 730B Only

2шт.

21

24143816

SPRING

Compression, 730B Only

2шт.

22

09984360

BEAM ASSY.

Lead Shank, RH

1шт.

22

09984370

BEAM ASSY.

Lead Shank, LH

1шт.

23

09576610

LINKAGE

Flat

2шт.

24

05302150

STAND

Hose

1шт.

25

09983458

BAR ASSY.

Mount, Weldment

1шт.

26

09983290

BRACKET

Mud Scraper, LH

1шт.

26

09983295

BRACKET

Mud Scraper, RH

1шт.

27

09983240

BRACKET

Mounting, Flat

2шт.

28

09900111

BAR ASSY.

Mud Scraper

1шт.

29

1032162

CHAIN

30, 400LB, ASE Safety (Agriculture)

1шт.

30

16510820

THREADED ROD

730B Only

2шт.

31

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

NC

10шт.

32

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex.

2шт.

33

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

NC

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

2шт.

35

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC

2шт.

36

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

NC

4шт.

37

495-21069

WASHER,5/8"

Standard

4шт.

38

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4", Machine

1шт.

39

495-81028

WASHER,21/32" x 1 1/2" x .240"

730B Only

4шт.

39

17411012

WASHER

730B Only

4шт.

40

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8 x 14 Ga.

4шт.

41

09967531

BRACKET

Klik Pin

1шт.

42

425-1014

NUT,7/8"-9, G5

NC, Hex.

14шт.

43

425-1414

JAM NUT,Jam, 7/8"-9, G5

NC, Hex.

6шт.

44

86992214

LOCK NUT

7/16, NC, Stover

1шт.

45

425-106

NUT,3/8"-16, Cl 5

4шт.

46

425-1010

NUT,5/8"-11, G5

NC, Hex.

6шт.

47

86992216

NUT

5/8, NC, Stover

2шт.

48

425-1012

NUT,3/4"-10, G5

NC, Hex.

12шт.

49

25-1010

NUT,5/8"-11, G5

730B Only

8шт.

50

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

5/8, Special, H.T.

4шт.

51

14816201

SMALL PIN

1 Dia x 2-3/32, EL

2шт.

52

14892066

PIN

1-1/4 Dia x 8-1/2

1шт.

53

14820520

HITCH PIN

1-5/8

1шт.

54

09983475

BAR ASSY.

Pin

2шт.

55

D33805

PIN

Klik

1шт.

56

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 Dia x 3-1/8, Clevis

1шт.

57

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Split, Hair

1шт.

57

NSS

NOT SOLD SEPARAT

1/8 x 2, Split, Hair

1шт.

58

432-1624

COTTER PIN,1/4" x 1 1/2"

Split

2шт.

59

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Straight

9шт.

61

18534228

DECAL

Caution

1шт.

62

18534262

DECAL

Level Frame

1шт.

63

18534140

WARNING DECAL

1шт.

64

18534107

DECAL

Patent

1шт.

66

18534240

DECAL

Red/Green

1шт.

67

18534241

DECAL

Information

1шт.

68

18535025

DECAL

530B Case IH, RH, Red

1шт.

68

18535026

DECAL

530B Case IH, LH, Red

1шт.

68

18535027

DECAL

730B Case IH, RH, Red

1шт.

68

18535028

DECAL

730B Case IH, LH, Red

1шт.

68

18532031

DECAL

Ecolo-tiger 530B Left Side, Biue

1шт.

68

18532032

DECAL

Ecolo-tiger 530B Right Side, Biue

1шт.

68

18532033

DECAL

Ecolo-tiger 730B Left Side, Biue

1шт.

68

18532034

DECAL

Ecolo-tiger 730B Right Side, Biue

1шт.

69

18534258

DECAL

Depth Indicator

1шт.

70

18534113

DECAL

Bolt Torque & Tire Inflation, 530B

1шт.

70

18534120

DECAL

Bolt Torque & Tire Inflation, 730B

1шт.

71

18532035

DECAL

Tiger Stripe, 530B Units Only, Blue

2шт.

72

18534164

DECAL

Tire Inflation, 425/65R Tire, Option

2шт.

72

18534162

DECAL

Tire Inflation, 16.5 x 16/1 10 Ply Tire

2шт.

72

18534161

DECAL

Tire Inflation, 16.5 x 16/1 14 Ply Tire

2шт.

73

18534259

DECAL

DMI

1шт.

74

18534307

DECAL

Helping Plants Thrive

1шт.

76

87627517

PLATE

Serial, (18510009)

1шт.

76

NSS

NOT SOLD SEPARAT

Serial

1шт.

77

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

NC

4шт.

78

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

NC

8шт.

79

311864A1

REFLECTOR

Yellow, 530B Only

2шт.

80

18581004

PRODUCT GRAPHIC

SMV, Inc. 81 - 86

1шт.

81

311860A1

EMBLEM

SMV

1шт.

82

09983415

BRACKET

SMV

1шт.

83

86992211

NUT

1/4, NC, Hex

2шт.

84

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

2шт.

85

86992213

NUT

3/8, NC, Hex.

2шт.

85

86992215

LOCK NUT,1/2"-13, GC

3/8, NC, Hex.

2шт.

86

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

2шт.

87

12000900

PAINT

BlUE, Touch-Up Kit

1шт.

88

04681210

BRACKET

1шт.

89

04681211

BUSHING

1шт.

90

86992219

LOCK NUT

1, NC, Stover

1шт.

91

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

1шт.

92

28050891

HUB ASSY.

50-8, 530B

2шт.

92

28560803

HUB ASSY.

60-8B, 730B

2шт.

93

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

94

86992215

LOCK NUT,1/2"-13, GC

NC, Stover

2шт.

95

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

NC

1шт.

95

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

NC

1шт.

96

18534227

DANGER DECAL

2шт.

97

18534343

DECAL

Yield-Till

1шт.

98

18534333

DANGER DECAL

NC, Gd. 5, ZP

1шт.

99

06200125

HOSE CLAMP

1шт.

100

18534347

WARNING DECAL

Towing

1шт.
