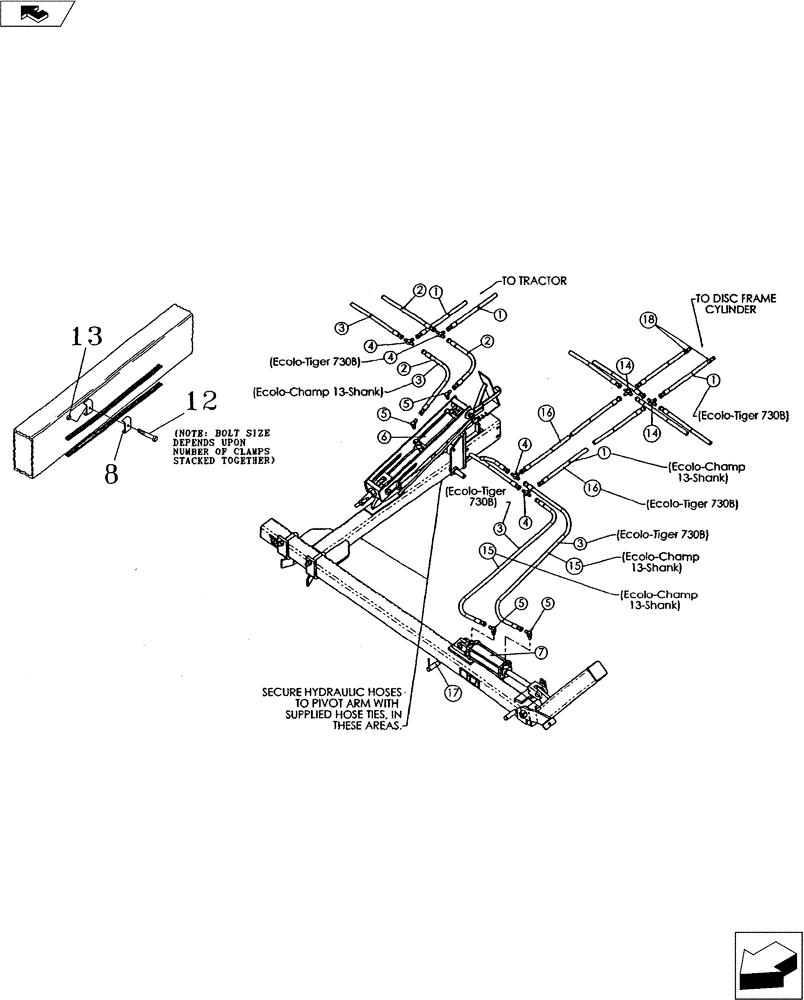

Запчасти Case IH 730B (35.100.05) - DISC LEVELER HYDRAULICS - 730B (35) - HYDRAULIC SYSTEMS

1

25610700

HYDRAULIC HOSE

3/8" x 280" Long, (Ecolo-Tiger 730B)

2шт.

1

25610720

HYDRAULIC HOSE

3/8" x 192" Long, ( Ecolo-Champ 13 Shank)

4шт.

2

25600692

HYDRAULIC HOSE,0.38" ID x 108.00", SAE 100R17

(Ecolo-Tiger 730B)

4шт.

2

25600671

HYDRAULIC HOSE,0.38" ID x 138.00", SAE 100R17

(Ecolo-Champ 13 Shank)

2шт.

3

25600814

HYDRAULIC HOSE

(Ecolo-Tiger 730B)

1шт.

4

218-594

TEE,3/4"-16, 37 Degree

JlCM

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

SAEM Adapter

4шт.

6

25330083

CYLINDER ASSY.

3" x 8" Main Lift Hydraulic 3000 P.S.I., (See Figure 35.100.06)

2шт.

7

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" Wing Lift 3,000 P.S.I., (See Figure 35.100.06)

2шт.

7

25330101R

REMAN-HYD CYLINDER

730B DMI ECOLO-TIGER®, 730B DMI ECOLO-TIGER® - DISC LEVELER, Both Wing Lift 3,000 P.S.I.

2шт.

7

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

8

06200125

HOSE CLAMP

1шт.

9

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Plastic Hose Tie (Not Shown)

1шт.

10

30007006

PLASTIC RING

6" Plastic Hose Tie (Not Shown)

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(For 1 Clamp)

1шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(For 2 Clamps)

1шт.

12

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(For 3 Clamps)

1шт.

12

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(For 4 Clamps)

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

3/4"-16 JlCM Cross, (Used with Ecolo-Tiger 730 Disc Frame Only)

2шт.

15

25600615

HYDRAULIC HOSE,0.38" ID x 173.00", SAE 100R17

Long

4шт.

16

25600702

HYDRAULIC HOSE,0.38" ID x 75.00"

Long

2шт.

17

25890100

KIT

1" Dia. Clevis Pin Bag Of Parts

2шт.

18

25705041

COUPLING

IS0 Male Coupler

2шт.
