(35.100.01) - DISC ATTACHMENT HYDRAULICS

Запчасти Case IH 730 (35.100.01) - DISC ATTACHMENT HYDRAULICS (35) - HYDRAULIC SYSTEMS

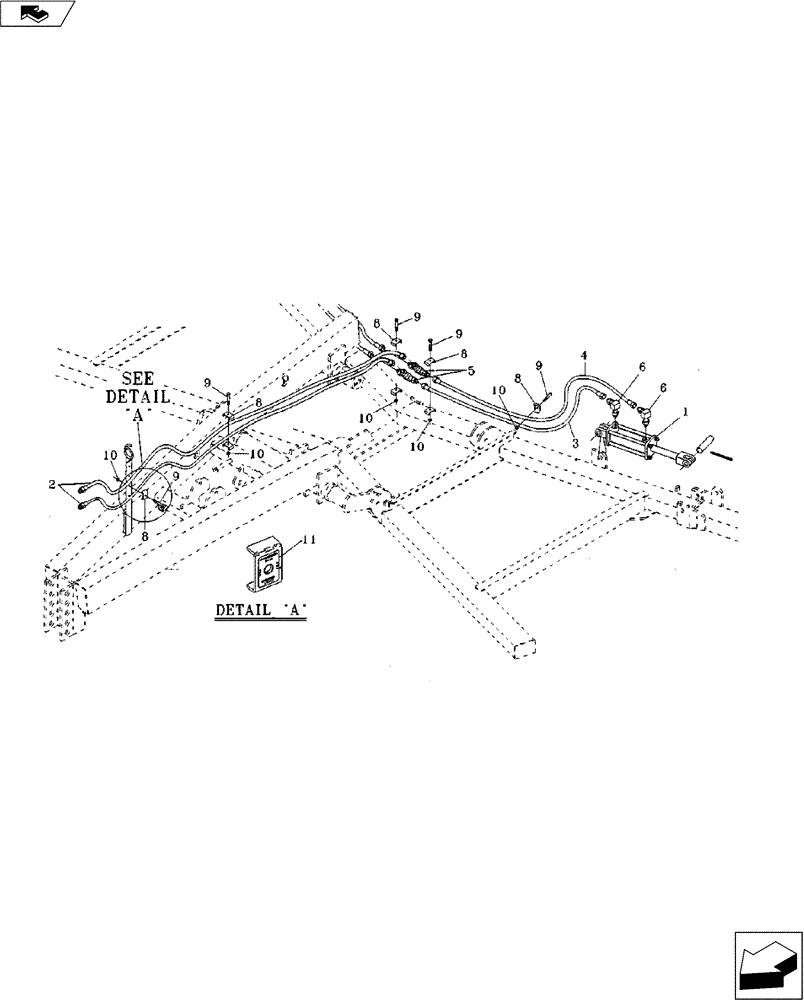

Схема запчастей Case IH 730 - (35.100.01) - DISC ATTACHMENT HYDRAULICS (35) - HYDRAULIC SYSTEMS
10
10
8
10
1
9
8
5
2
9
10
6
4
8
8
11
10
3
6
8
9
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25330121

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 304.8mm Stroke

3" x 12" Hydraulic - 3,000 P.S.I, Start Serial: 522399

2шт.

1

25030120

CYLINDER ASSY.

3" x 12" Hydraulic - 2,500 P.S.I., Serial Range: -422398

2шт.

2

25610719

HOSE ASSY.

3/8" Hydraulic x 216" Long

2шт.

3

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

2шт.

4

25600702

HYDRAULIC HOSE,0.38" ID x 75.00"

2шт.

5

25707518

3 WAY CONNECTION

3/4" - 16 JICM Tee

2шт.

6

25707521

ELBOW

3/4" JICM x 3/4" SAEM 90 Deg.

4шт.

8

06200125

HOSE CLAMP

6шт.

9

16006061

BOLT

3/8" x 1-1/2" NC

6шт.

10

14000601

NUT,3/8"-16, G5

NC Hex.

6шт.

11

18534260

Wing Fold

1шт.
