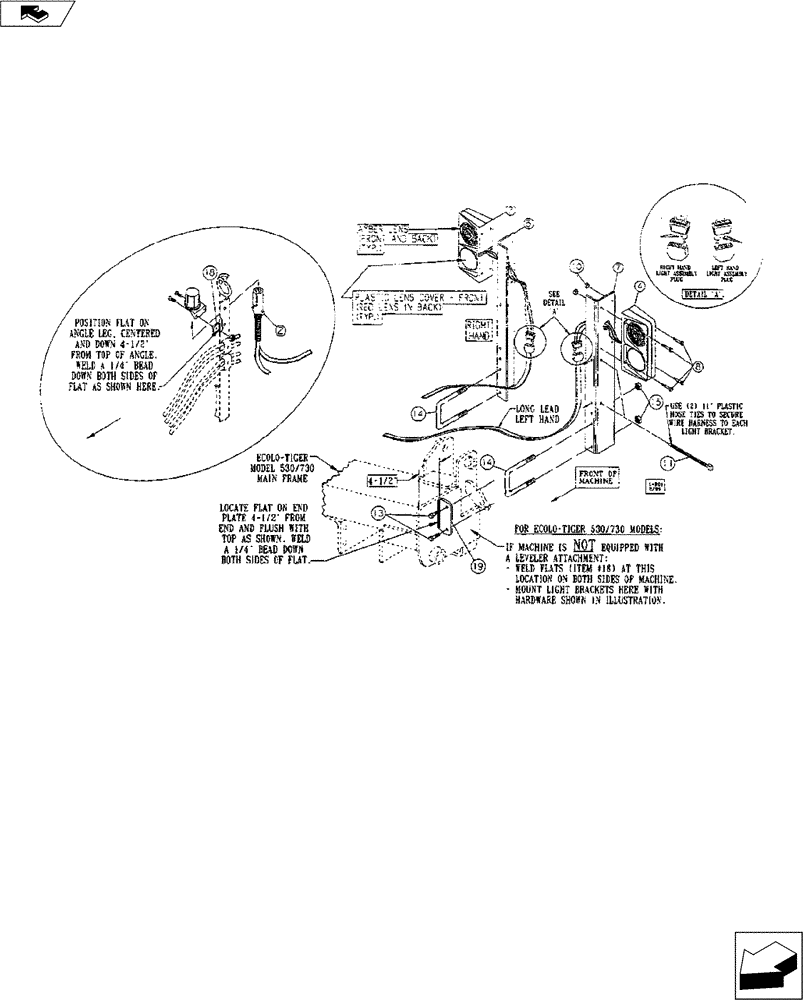

Запчасти Case IH 730 (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

1

P0276100

WARNING LIGHT

ET/EC & Tail Attachment, Includes Ref. 2 through 19 (Not Shown)

1шт.

2

27601211

HARNESS

Wiring

1шт.

3

27601212

LIGHT ASSY.

Fixture, RH

1шт.

4

27601213

LIGHT ASSY.

Fixture, LH

1шт.

5

27601214

HOLDER

Plug Storage Container

1шт.

6

27601201

SHEET

Light Bracket, RH (Not Shown)

1шт.

7

27601202

SHEET

Light Bracket, LH

1шт.

8

16004055

BOLT

1/4" x 1-1 /4" NC Hex., Gd.5

8шт.

9

16004031

BOLT

1/4" x 3/4" NC Hex.

2шт.

10

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Locknut

10шт.

11

NSS

NOT SOLD SEPARAT

1.1 " Plastic Hose Tie

1шт.

12

NSS

NOT SOLD SEPARAT

28" Plastic Hose Tie (Not Shown)

1шт.

13

16006055

BOLT

3/8" x 1 " Hex., Gd. 5

4шт.

14

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4" (used with Leveler Attachment)

2шт.

15

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Locknut

4шт.

16

27601215

LENS

Replacement Lens - Amber (Not Shown)

1шт.

17

27601216

LENS

Replacement Lens - Red (Not Shown)

1шт.

18

06202491

1шт.

19

09983316

For Ecolo-Tiger 5301730 Without Leveler

2шт.
