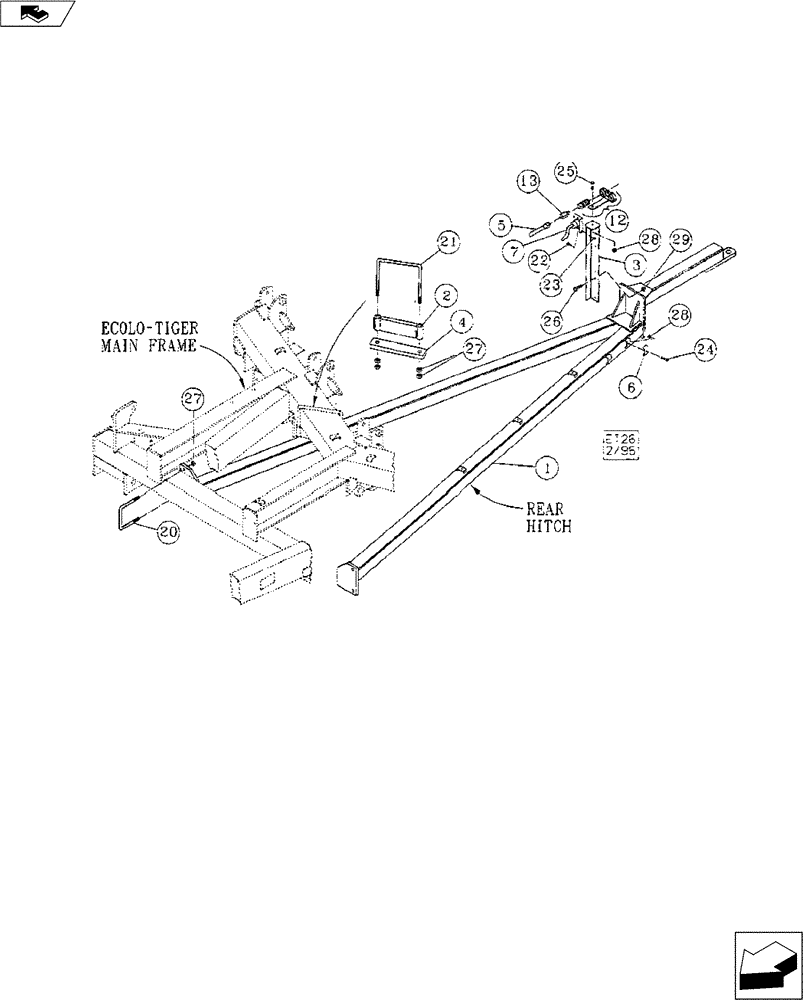

Запчасти Case IH 730 (39.110.02) - REAR HITCH (39) - FRAMES AND BALLASTING

1

09986350

ANGLE

Rear Hitch

1шт.

2

09986315

SPACER

2шт.

3

09986325

STAND

Hose

1шт.

4

09986313

BRACKET

Strap

2шт.

5

25600428

HYDRAULIC HOSE,0.25" ID x 425.00", SAE 100R17

2шт.

6

06200125

HOSE CLAMP

7шт.

7

27601226

WIRE HARNESS

Light

1шт.

8

NSS

NOT SOLD SEPARAT

11" Plastic Hose Tie (Not Shown)

1шт.

9

NSS

NOT SOLD SEPARAT

28" Plastic Hose Tie (Not Shown)

1шт.

10

NSS

NOT SOLD SEPARAT

24" Plastic Hose Tie (Not Shown)

1шт.

11

NSS

NOT SOLD SEPARAT

6" Plastic Hose Tie (Not Shown)

1шт.

12

25705020

COUPLING, QUICK, FEM

Includes Female Coupler and Bracket

1шт.

13

25705607

ADAPTER

9/16" JICM x 3/4" SAEM

4шт.

20

16311338

U-BOLT

3/4" x 6" x 8.25"

2шт.

21

16311608

U-BOLT

3/4" Special, Gd. 7

2шт.

22

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC Hex. Bolt

2шт.

23

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Lock Nut

2шт.

24

NSS

NOT SOLD SEPARAT

3/8" x 1-1 /4" NC Hex. Bolt

7шт.

25

NSS

NOT SOLD SEPARAT

3/8" x 1-1 /2" NC Hex. Bolt

1шт.

26

16008065

BOLT

1/2" x 1-1 /2" NC Hex. Gd. 5

2шт.

27

14001205

NUT

3/4" NC Hex. Gd. 5

16шт.

28

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Locknut

8шт.

29

14010905

1/2" NC, Gd. 5

2шт.
