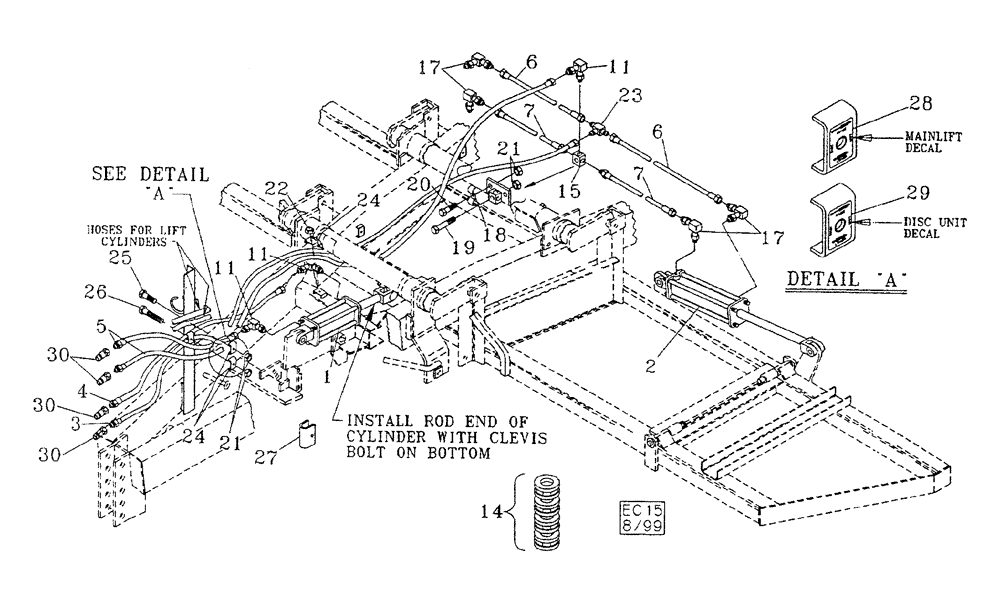

Запчасти Case IH 6750 (004) - HYDRAULICS (WITH DISC ATTACHMENT) (09) - CHASSIS

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

hydraulic, 3" x 8" - 3000 p.s.i.

1шт.

2

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

hydraulic, 2-1/2" x 16" - 3000 p.s.i. (11 & 13 shank)

2шт.

3

25610712

HYDRAULIC HOSE

hydraulic, 3/8" x 110"

1шт.

4

25610713

HYDRAULIC HOSE

hydraulic, 3/8" x 118"

1шт.

5

25610718

HYDRAULIC HOSE

hydraulic, 3/8" x 178" (11 & 13 shank)

2шт.

6

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

(11 & 13 shank)

2шт.

7

25610722

HYDRAULIC HOSE

hydraulic, 3/8" x 36" (11 & 13 shank)

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4" SAEM x 3/4" JICM

3шт.

14

25800010

CYLINDER

KIT stroke 1-1/4"

1шт.

15

25401255

FLOW DIVIDER

black (11 & 13 shank)

1шт.

17

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

9/16" SAEM x 3/4" JICM 90 (11 & 13 shank)

4шт.

18

22530601

HOSE CLAMP

double (11 & 13 Shank)

2шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

11 & 13 shank

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

11 & 13 shank

2шт.

21

425-106

NUT,3/8"-16, Cl 5

11 & 13 Shank

5шт.

22

425-105

NUT,5/16"-18, G5

11 & 13 shank

1шт.

23

218-594

TEE,3/4"-16, 37 Degree

3/4" JICM (11 & 13 shank)

1шт.

24

06200125

HOSE CLAMP

double

2шт.

25

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

27

09650207

STAY

STOP cylinder transport - disc/coulter

1шт.

28

18534237

DECAL

main lift

1шт.

29

18534239

DECAL

disc unit

1шт.

30

1285718C2

QUICK MALE COUPLING

male ISO-3/4" SAEF hydraulic

4шт.
