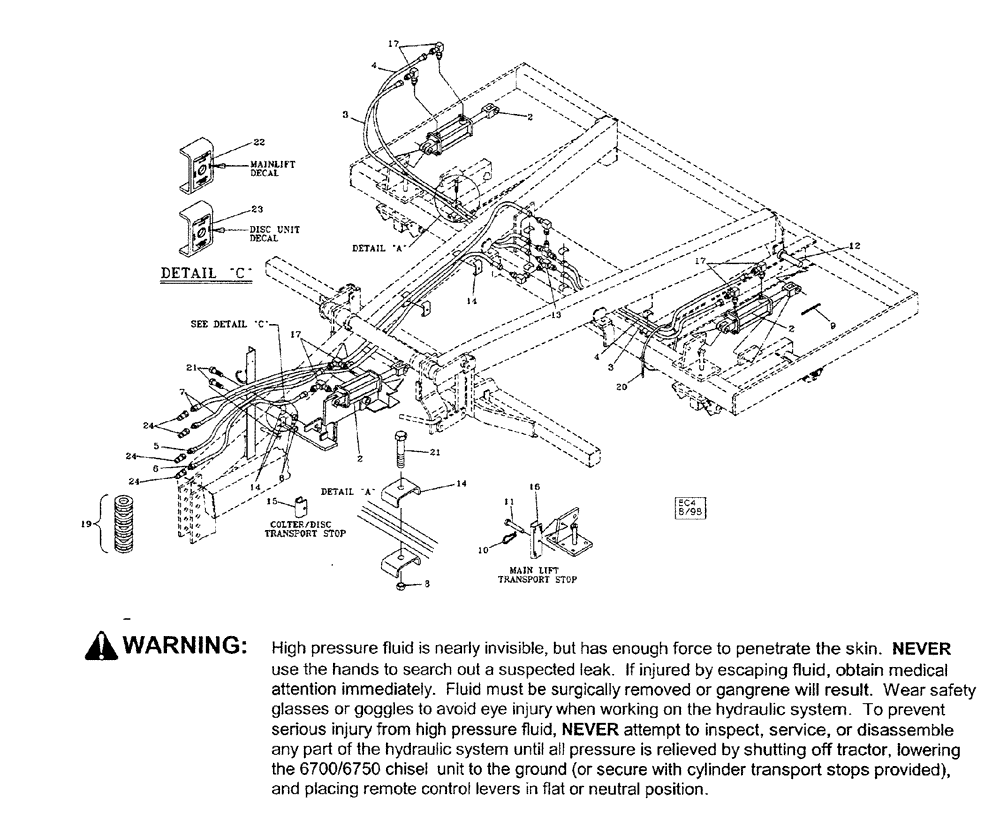

Запчасти Case IH 6750 (003) - HYDRAULICS (WITH COULTER ATTACHMENT) (09) - CHASSIS

2

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" - 3000 p.s.i. (7, 9 shank)

3шт.

25335081

CYLINDER,Double Acting, 203.2mm Stroke

3-1/2" x 8" - 3000 p.s.i. (11, 13 shank)

2шт.

3

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

(7, 9, 13 shank)

2шт.

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

(11 shank)

2шт.

4

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

(7 ,9, 13 Shank)

2шт.

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

(11 shank)

2шт.

5

25610713

HYDRAULIC HOSE

hydraulic, 3/8" x 118" long

1шт.

6

25610712

HYDRAULIC HOSE

hydraulic, 3/8" x 110" long

1шт.

7

25610901

HYDRAULIC HOSE

hydraulic, 1/2" x 196" long

2шт.

8

425-106

NUT,3/8"-16, Cl 5

10шт.

9

432-1232

COTTER PIN,3/16" OD x 2" L

6шт.

Part of Ref. 12, part number 25890100

1шт.

10

NSS

NOT SOLD SEPARAT

PIN long hair, 1/8" x 2" (14720411)

2шт.

11

14810251

HEADED PIN,15.88mm OD x 96.77mm L

clevis, 5/8" x 3-1/8"

2шт.

12

25890100

KIT

clevis, 1" x 3" ,Includes: Ref. 9

5шт.

13

218-594

TEE,3/4"-16, 37 Degree

3/4" JICM

2шт.

14

06200125

HOSE CLAMP

double

9шт.

15

09650207

STAY

STOP cylinder transport - coulter/disc

1шт.

16

04632700

STAY

STOP cylinder - main lift

2шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4" SAEM x 3/4" JICM

6шт.

19

25800010

CYLINDER

KIT stroke control, 1-1/4"

3шт.

20

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP TIE plastic hose, 24"

4шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

22

18534237

DECAL

main lift

1шт.

23

18534239

DECAL

disc unit

1шт.

24

1285718C2

QUICK MALE COUPLING

male ISO-3/4" SAEF hydraulic

4шт.
