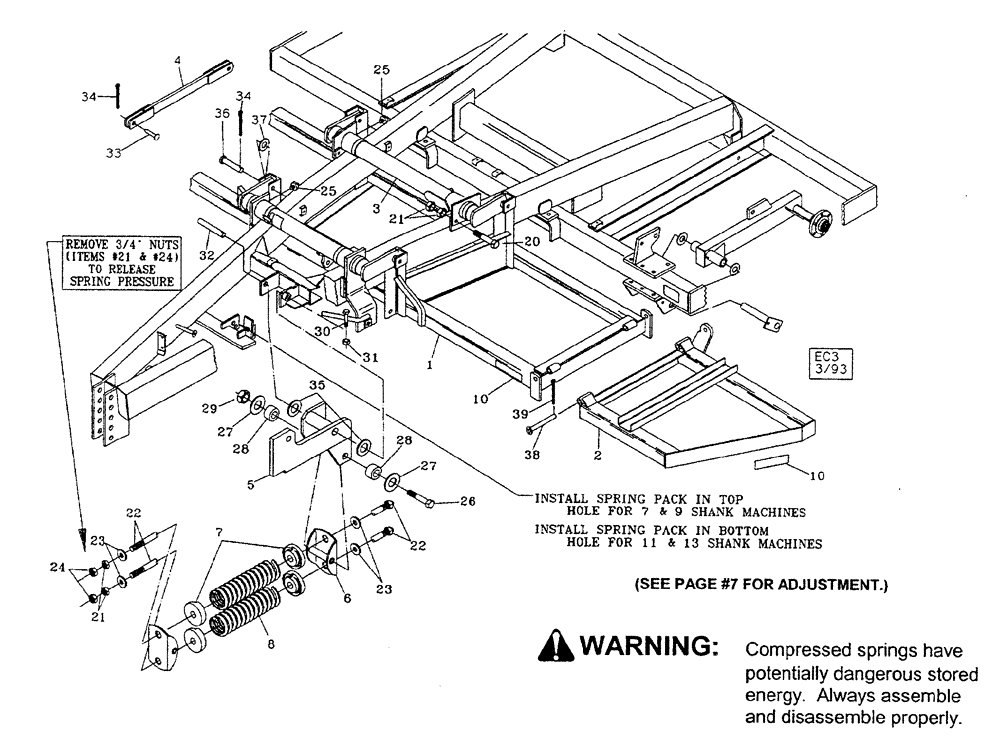

Запчасти Case IH 6750 (002) - DISC ATTACHMENT (09) - CHASSIS

1

09650400W

FRAME

disc (9 shank) - red

1шт.

09970200W

FRAME

disc center (11 & 13 shank) - red

1шт.

2

09576800W

FRAME ASSY

disc wing L.H. (11 shank) - red

1шт.

09576820W

FRAME ASSY

disc wing R.H. (11 shank) - red

1шт.

09576850W

FRAME ASSY

disc wing L.H. (13 shank) - red

1шт.

09576870W

FRAME ASSY

disc wing R.H. (13 shank) - red

1шт.

3

09576570W

FRAMEWORK

TUBE rear lift, 6700/50 - red

1шт.

4

84401370

LINKAGE

lift

1шт.

5

09651000

LINKAGE

cylinder

1шт.

6

09581510

PIVOT ASSY.

spring weld

2шт.

7

20090091

HOLDER

spring casting

4шт.

8

24162501

COIL SPRING

compression

2шт.

10

18534367

ADHESIVE

STRIP yellow reflective (11 & 13 shank)

4шт.

18534367

ADHESIVE

STRIP yellow reflective (9 shank only)

2шт.

20

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

21

425-1010

NUT,5/8"-11, G5

hex, 3/4" NC

10шт.

22

16512692

THREADED ROD

3/4" x 20-1/2" NC

2шт.

23

17413011

WASHER

thick, 1/4"

4шт.

24

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

25

219-86

LUBE NIPPLE,1/8" NPTF

Self tapping

4шт.

26

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

BOLT hex, 5/8" x 7-1/4" GD. 5 Z.P.

2шт.

27

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

28

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

hardened

4шт.

29

230-41110

LOCK NUT,5/8"-11, GA

4шт.

30

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

31

230-4117

LOCK NUT,7/16"-14, GA

1шт.

32

14892066

PIN

1-1/4" x 8-1/2"

1шт.

33

14816201

SMALL PIN

1" x 2-3/32"

2шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

35

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

machined, 1-1/4"

1шт.

36

14816382

SMALL PIN

1" x 3-3/4"

4шт.

37

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

machined, 1"

4шт.

38

14816686

PIVOT PIN

wing (11 & 13 shank)

4шт.

39

432-1632

COTTER PIN,1/4" x 2"

11 & 13 shank

4шт.
